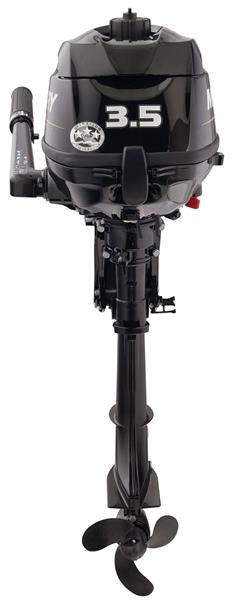

Mercury Outboard 3.5 Tiller Motor Short 15" - 5 Yr Warranty - Free Shipping

1F03201KK Brand New Model Year Mercury 3.5 MH 4 Stroke small outboard tiller handle motor. Manual start, short shaft (15”/381 mm) driveshaft housing. Easily portable at only 54 lbs. See complete specs below.
Availability: 5 in stock
Manufacturer part number: 1F03201KK
Delivery date: Warehouse transfer - on 4th business day
Manufacturer: Mercury Marine
MSRP: $1,240.00
$950.00

FREE GROUND SHIPPING* and 5 YEAR WARRANTY INCLUDED. While supplies last!
*To contiguous U.S. states only via UPS Ground.

3.5 MH Tiller Handle FourStroke Mercury Outboard Engine. 15" (short) Shaft

Perfect lightweight, quiet motor for aluminum tiller, jon, utility, inflatables and sail boats.

Manual start, short shaft (15”/381mm) driveshaft housing. Tiller handle steering

HP / kW

3.5 / 2.6

Engine type

1 cylinder

Displacement (CID/CC)

5.2 / 85

Full throttle RPM

5000-6000

Fuel induction system

2-valve pushrod (overhead valve)

Recommended fuel

87% octane / up to 10% ethanol

Recommended oil

Mercury FourStroke Oil 10W-30

Engine protection operator warning system

Over-rev

Starting

Manual

Steering

Tiller with 360° turning

Shaft length

15" / 381 mm

Gearcase ratio

2.15:1

Dry weight *Lightest model available

38 lbs / 17 kg

CARB star rating

3

Bore and stroke

2.16 x 1.42" / 55 x 36 mm

Ignition

CDI w/electronic spark advance

Fuel system

Carbureted

Cooling system

Water-cooled with thermostat

Gear shift

F-N

Gearcase options

Standard

Trim system

4 position

Trim positions

4

Exhaust system

Above prop

Shallow water trim range (degrees)

16

Integrated fuel tank (gal / L)

0.3 / 1.1

Color

Phantom Black





FREE GROUND SHIPPING* and 5 YEAR WARRANTY INCLUDED. While supplies last!
*To contiguous U.S. states only via UPS Ground.

3.5 MH Tiller Handle FourStroke Mercury Outboard Engine. 15" (short) Shaft

Perfect lightweight, quiet motor for aluminum tiller, jon, utility, inflatables and sail boats.

Manual start, short shaft (15”/381mm) driveshaft housing. Tiller handle steering

HP / kW

3.5 / 2.6

Engine type

1 cylinder

Displacement (CID/CC)

5.2 / 85

Full throttle RPM

5000-6000

Fuel induction system

2-valve pushrod (overhead valve)

Recommended fuel

87% octane / up to 10% ethanol

Recommended oil

Mercury FourStroke Oil 10W-30

Engine protection operator warning system

Over-rev

Starting

Manual

Steering

Tiller with 360° turning

Shaft length

15" / 381 mm

Gearcase ratio

2.15:1

Dry weight *Lightest model available

38 lbs / 17 kg

CARB star rating

3

Bore and stroke

2.16 x 1.42" / 55 x 36 mm

Ignition

CDI w/electronic spark advance

Fuel system

Carbureted

Cooling system

Water-cooled with thermostat

Gear shift

F-N

Gearcase options

Standard

Trim system

4 position

Trim positions

4

Exhaust system

Above prop

Shallow water trim range (degrees)

16

Integrated fuel tank (gal / L)

0.3 / 1.1

Color

Phantom Black





Products specifications
Horsepower3.5
Shaft Length15
Lower UnitStandard
ControlsTiller handle
TrimManual Tilt
StartingManual
*
*
*
*
Products specifications
Horsepower3.5
Shaft Length15
Lower UnitStandard
ControlsTiller handle
TrimManual Tilt
StartingManual
