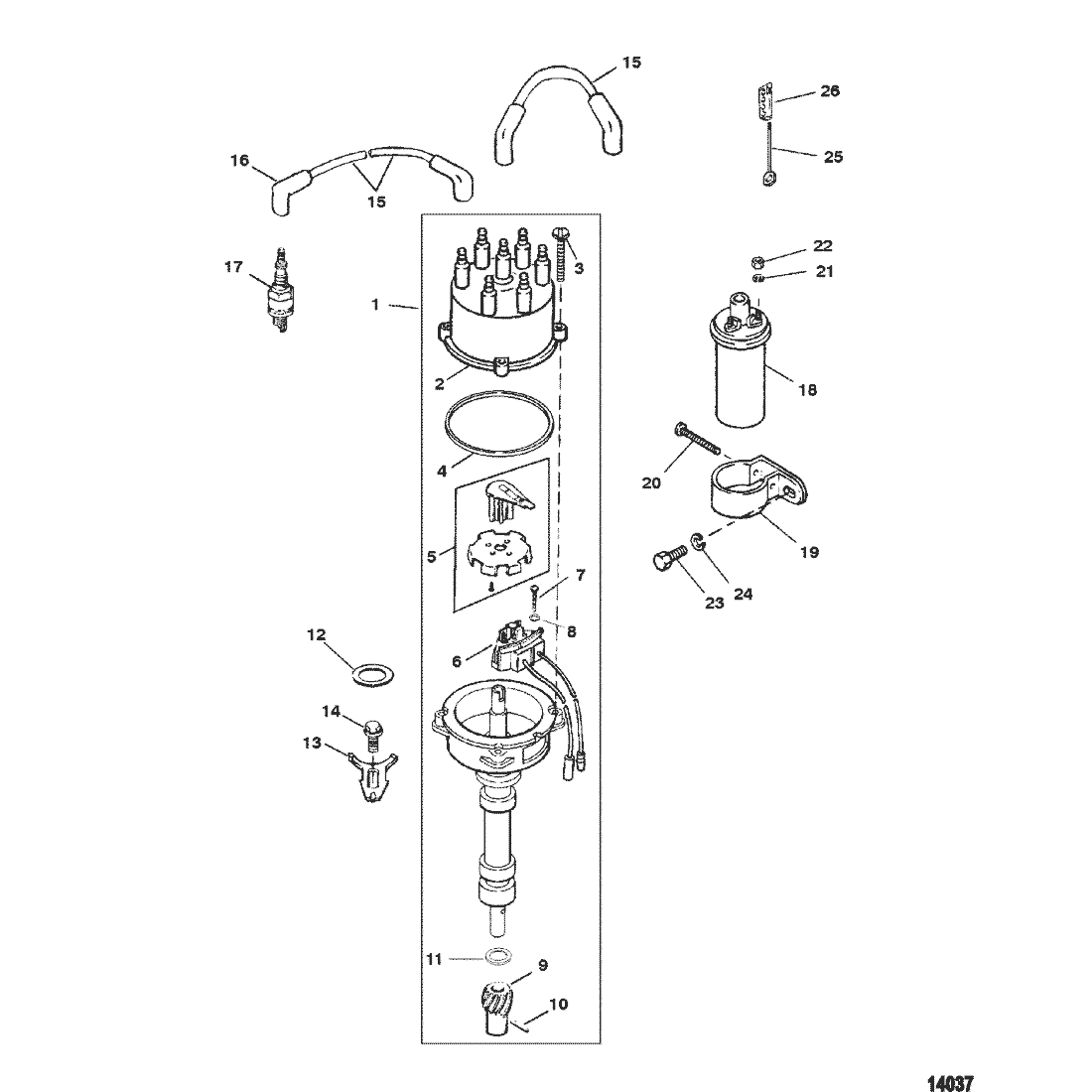

Distributor And Ignition Components

Ref #	Current Part Nbr	Description	Superceded From	Status	List Price	Online Price	Quan Used
1	805185A37	DISTRIBUTOR ASSEMBLY		ACT	$444.14	$424.54	1
2	815407A2	--CAP, Distributor		ACT	$41.33	$40.59	1
3	90926	--SCREW, (#10-32 x .810)		ACT	$1.00	$0.98	4
4	805760	--GASKET		ACT	$5.20	$5.08	1
5	13524A6	--ROTOR/SENSOR WHEEL		ACT	$19.90	$19.41	1
6	892150Q02	--SENSOR ASSEMBLY		ACT	$107.17	$100.92	1
7	66686	--SCREW, (#10-32 x 1.00)		ACT	$1.70	$1.66	1
7	72202	--SCREW, (#10-32 x 1.25)		ACT	$3.30	$3.22	1
8	26996	--LOCKWASHER, (#10) Stainless Steel		ACT	$1.20	$1.18	2
9	8M0115498	--GEAR	818807	SS/ACT	$86.33	$83.04	1
10	47617	--PIN		ACT	$3.90	$3.81	1
11	90931	--THRUST WASHER		ACT	$1.30	$1.27	1
12	344863	GASKET		ACT	$2.60	$2.54	1
13	88731	CLAMP	52185	SS/ACT	$9.60	$9.37	1
14	806681	SCREW, (.375-16 x .875)		ACT	$7.10	$6.93	1
15	816761Q16	CABLE KIT, Spark Plugs And Coil		ACT	$77.33	$74.38	1
16	63709A1	--BOOT/TERMINAL KIT		ACT	$7.90	$7.71	8
17	816336Q	SPARK PLUG		ACT	$6.40	$6.25	6
18	8M0079202	COIL KIT	805570A2	SS/ACT	$122.33	$115.21	1
19	65970T1	--BRACKET		ACT	$15.60	$15.22	1
20	41408	--SCREW, (#10-32 x 1.50)		ACT	$3.30	$3.22	1
21	26996	--LOCKWASHER, (#10) Stainless Steel		ACT	$1.20	$1.18	2
22	68219	--NUT, (#10-32) Stainless Steel		ACT	$2.90	$2.83	2
23	98261	SCREW, (.375-16 x .750)		ACT	$1.20	$1.18	1
24	20553	WASHER, (.406 x .734 x .063)		ACT	$1.40	$1.37	1
25	90096A1	STUD ASSEMBLY, (#10-32 x Special)		ACT	$15.00	$14.63	2
26	72821	--RETAINER		ACT	$5.30	$5.17	2
-	824326A02	GASKET SET		ACT	$918.71	$864.33	1
