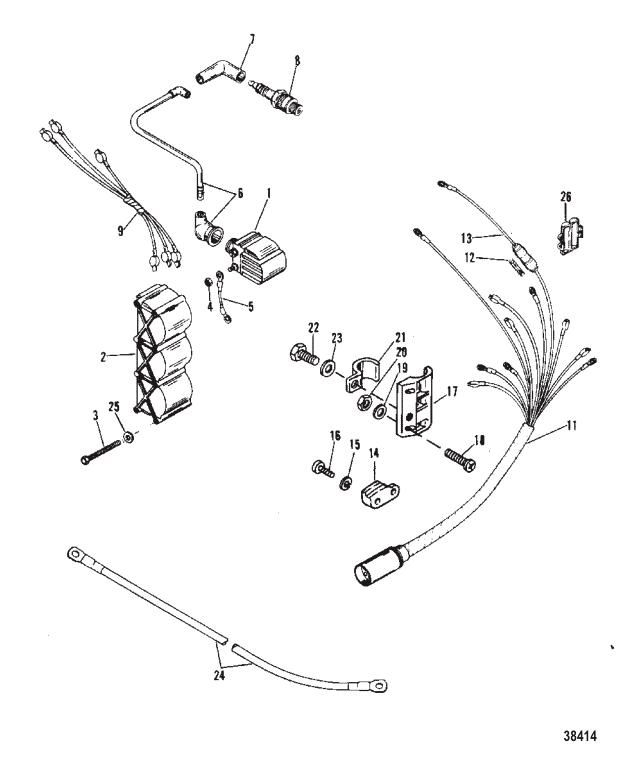

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 832757A4 | COIL ASSEMBLY Ignition | 7370A13 | SS |
|
$121.42 | $114.34 | 6 | |
| 2 | 43542 | COVER IGNITION COIL | NLA |
|
$0.00 | $0.00 | 2 | ||
| 3 | 88856 | SCREW (.190-32 x 2.00) IGNITION COIL COVER | NLA |
|
$0.00 | $0.00 | 12 | ||
| 4 | 45076 | NUT (#10-32) Brass IGNITION COIL TERMINAL | ACT | $1.80 | $1.76 | 12 | |||
| 5 | 88807A12 | CABLE ASSEMBLY IGNITION COIL (BLACK - 10-1/2") | NLA |
|
$0.00 | $0.00 | 3 | ||
| 5 | 88807A13 | CABLE ASSEMBLY IGNITION COIL (BLACK - 5-1/4") | ACT | $8.70 | $8.49 | 3 | |||
| 6 | 813715A10 | CABLE ASSEMBLY HIGH TENSION | ACT |
|
$183.25 | $172.57 | 1 | ||
| 7 | 63709A1 | ----BOOT/TERMINAL KIT SPARK PLUG END | ACT | $8.20 | $8.00 | 6 | |||
| 8 | 896329827 | SPARK PLUG (NGK-BUHW) | 97180 | SS |
|
$15.59 | $15.22 | 6 | |
| 8 | 896329898 | SPARK PLUG (NGK-BUZHW) (CANADA/BELGIUM) | 14103550 | REP |
|
$19.69 | $19.21 | 6 | |
| 9 | 85537A2 | HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 AND 6) | ACT | $63.25 | $60.84 | 1 | |||
| 9 | 85537A1 | HARNESS ASSEMBLY COIL TO SWITCH BOX (#1, 3 AND 5) | ACT | $63.25 | $60.84 | 1 | |||
| 11 | 96188A4 | HARNESS ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 8M0207796 | ----FUSE 20 Ampere | 79091 | SS |
|
$8.20 | $8.00 | 1 | |
| 13 | 95084A2 | ----CABLE ASSEMBLY FUSE HOLDER | ACT | $17.40 | $16.97 | 1 | |||
| 14 | 88608 | CLAMP WIRING HARNESS | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 28636 | SCREW (.250-20 x .750) WIRING HARNESS CLAMP | ACT | $1.80 | $1.76 | 2 | |||
| 16 | 26996 | LOCKWASHER (#10) Stainles | ACT | $1.20 | $1.18 | 2 | |||
| 17 | 89047 | BRACKET WIRING HARNESS | 89047T | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 18 | 24637 | SCREW (#10-32 x .875) WIRING HARNESS BRACKET | NLA |
|
$0.00 | $0.00 | 2 | ||
| 19 | 38833 | WASHER | ACT | $3.80 | $3.71 | 2 | |||
| 20 | 20110 | NUT (#10-32) | ACT | $1.70 | $1.66 | 2 | |||
| 21 | 88751 | CLAMP WIRING HARNESS | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 28636 | SCREW (.250-20 x .750) WIRING HARNESS CLAMP | ACT | $1.80 | $1.76 | 1 | |||
| 23 | 20533 | WASHER | ACT | $1.50 | $1.47 | 1 | |||
| 24 | 88439A3 | CABLE ASSEMBLY Positive - Battery | ACT | $36.00 | $35.35 | 1 | |||
| 24 | 88439A4 | CABLE ASSEMBLY Battery - Negative | ACT | $47.76 | $46.89 | 1 | |||
| 25 | 30164 | WASHER (.192 x .375 x .03 | ACT | $2.50 | $2.44 | 12 | |||
| 26 | 134731 | HOLDER Fuse | NLA |
|
$0.00 | $0.00 | 1 |
