| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

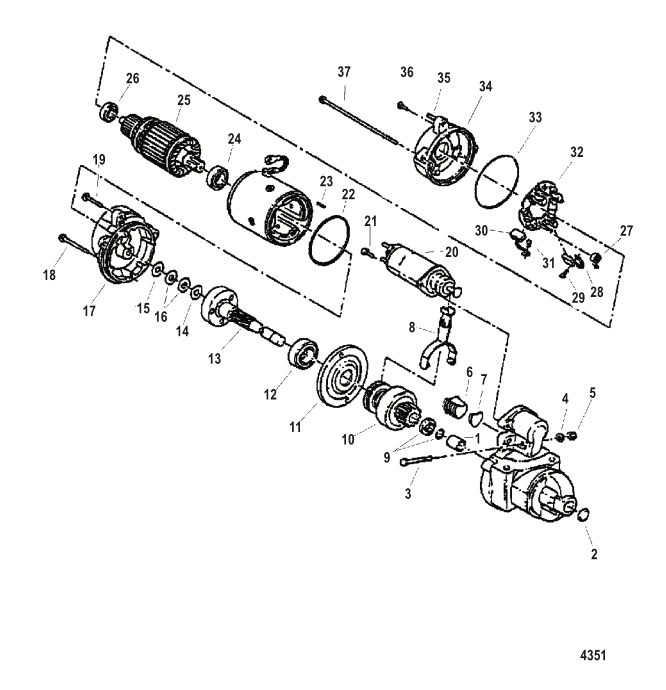

| - | 805833T | STARTER MOTOR ASSEMBLY | 805833 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 808305 | ----BUSHING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | NSS | --------NOT SOLD SEPARATE Plug |
|
$0.00 | $0.00 | 1 | |||
| 3 | NSS | --------NOT SOLD SEPARATE Screw (M6 x 50.8) |
|
$0.00 | $0.00 | 1 | |||
| 4 | NSS | --------NOT SOLD SEPARATE Washer |
|
$0.00 | $0.00 | 1 | |||
| 5 | NSS | NOT SOLD SEPARATE Nut (M6) |
|
$0.00 | $0.00 | 1 | |||
| 6 | NSS | NOT SOLD SEPARATE Plug |
|
$0.00 | $0.00 | 1 | |||
| 7 | NSS | NOT SOLD SEPARATE Plate |
|
$0.00 | $0.00 | 1 | |||
| 8 | 808310 | LEVER Shift | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 808311 | STOP Pinion | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 808301T | DRIVE Clutch | 808301 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 11 | 808316 | BRACKET Support | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 808309 | BEARING Ball, Center Support | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 803862 | DRIVESHAFT | 808314 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 14 | NSS | NOT SOLD SEPARATE Washer, Thick |
|
$0.00 | $0.00 | 1 | |||
| 15 | NSS | NOT SOLD SEPARATE Washer, Thin |
|
$0.00 | $0.00 | 1 | |||
| 16 | NSS | NOT SOLD SEPARATE Washer, Fiber |
|
$0.00 | $0.00 | 2 | |||
| 17 | 803873 | BRACKET Support | 808315 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 18 | NSS | NOT SOLD SEPARATE Screw (M6 x 60) |
|
$0.00 | $0.00 | 1 | |||
| 19 | NSS | NOT SOLD SEPARATE Screw (M6 x 35) |
|
$0.00 | $0.00 | AR | |||
| 20 | 808299 | SOLENOID | NLA |
|
$0.00 | $0.00 | AR | ||
| 21 | NSS | NOT SOLD SEPARATE Screw (M6 x 19.1) |
|
$0.00 | $0.00 | 2 | |||
| 22 | NSS | NOT SOLD SEPARATE Spacer |
|
$0.00 | $0.00 | 1 | |||
| 23 | NSS | NOT SOLD SEPARATE Pin, Roll |
|
$0.00 | $0.00 | 1 | |||
| 24 | 808307 | BEARING Ball, Drive End | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 808312T | ARMATURE | 808312 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 26 | 808308 | BEARING Ball, Commutator End | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 808306 | SPRING Brush | NLA |
|
$0.00 | $0.00 | 4 | ||
| 28 | 808303 | GROUND BRUSH | NLA |
|
$0.00 | $0.00 | 2 | ||
| 29 | NSS | NOT SOLD SEPARATE Screw (M4 x 4.94) |
|
$0.00 | $0.00 | 2 | |||
| 30 | 808304 | GROUND | NLA |
|
$0.00 | $0.00 | 2 | ||
| 31 | NSS | NOT SOLD SEPARATE Screw (M4 x 4.8) |
|
$0.00 | $0.00 | 2 | |||
| 32 | 808302 | HOLDER Brush | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 803863 | O-RING | 808319 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 34 | 808313 | FRAME Commutator End | NLA |
|
$0.00 | $0.00 | 1 | ||
| 35 | NSS | NOT SOLD SEPARATE Stud |
|
$0.00 | $0.00 | 1 | |||
| 36 | NSS | NOT SOLD SEPARATE Screw (M5 x 14.3) |
|
$0.00 | $0.00 | 2 | |||
| 37 | NSS | NOT SOLD SEPARATE Bolt, Thru (M6 x 181) |
|
$0.00 | $0.00 | 2 |
