| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

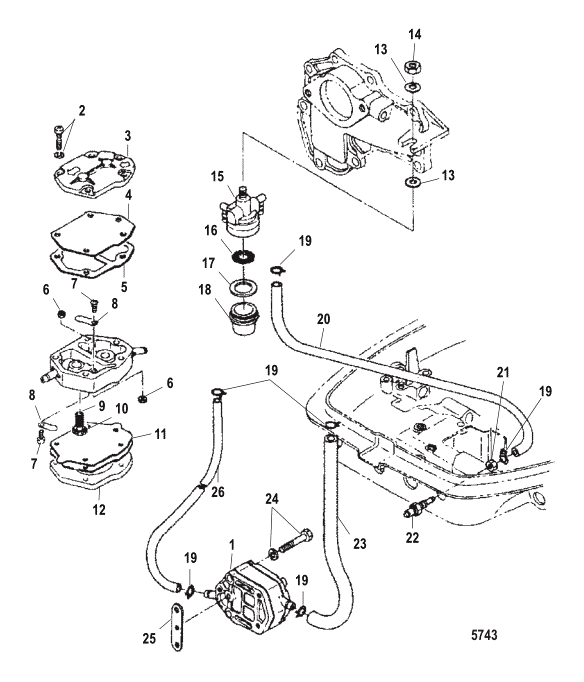

| 1 | 853729A1 | PUMP ASSEMBLY Fuel | ACT |
|
$131.75 | $124.07 | 1 | ||
| 2 | 162671 | ----SCREW | ACT | $0.00 | $0.00 | 3 | |||
| 3 | 853730 | ----COVER | ACT | $19.42 | $19.07 | 1 | |||
| 4 | 853731 | ----DIAPHRAGM | ACT | $25.58 | $25.13 | 1 | |||
| 5 | 8537031 | ----GASKET | ACT | $10.00 | $9.76 | 1 | |||
| 6 | 8537222 | ----NUT | ACT | $1.20 | $1.18 | 2 | |||
| 7 | 853698 | ----SCREW | ACT | $1.00 | $0.98 | 2 | |||
| 8 | 853732 | ----CHECK VALVE | ACT | $4.00 | $3.91 | 2 | |||
| 9 | 162662 | ----SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 8537311 | ----SPRING | 162663 | REP |
|
$22.00 | $21.61 | 1 | |
| 11 | 8537311 | ----DIAPHRAGM SET | ACT | $22.00 | $21.61 | 1 | |||
| 12 | 8537311 | ----GASKET | 853703 | SS |
|
$22.00 | $21.61 | 2 | |
| 13 | 8M0135942 | WASHER | 853701 | SS |
|
$5.20 | $5.08 | 2 | |
| 14 | 400213 | NUT | 8537223 | SS |
|
$2.90 | $2.83 | 1 | |
| 15 | 853733A1 | FILTER ASSEMBLY Fuel | ACT |
|
$25.33 | $24.88 | 1 | ||
| 16 | 853734 | ----SCREEN | ACT | $5.90 | $5.76 | 1 | |||
| 17 | 8537023 | ----GASKET | ACT |
|
$6.00 | $5.86 | 1 | ||
| 18 | 853735 | ----CUP | ACT | $18.67 | $18.33 | 1 | |||
| 19 | 95395 | CLIP Stainless Steel | ACT | $3.10 | $3.03 | 6 | |||
| 20 | 8M0057113 | LINE Fuel (1000 mm) | 953949 | SS |
|
$27.75 | $27.25 | 1 | |
| 21 | 17480 | NUT | ACT | $2.70 | $2.64 | 1 | |||
| 22 | 853736 | CONNECTOR Fuel | ACT | $29.33 | $28.81 | 1 | |||
| 23 | 8M0057113 | LINE Fuel (1000 mm) | 953949 | SS |
|
$27.75 | $27.25 | 1 | |
| 24 | 162451 | SCREW | ACT | $3.10 | $3.03 | 2 | |||
| 25 | 8M0084271 | GASKET | 8537022 | SS |
|
$7.30 | $7.12 | 1 | |
| 26 | 8M0057113 | LINE Fuel (1000 mm) | 953949 | SS |
|
$27.75 | $27.25 | 1 | |
| - | 8M0119225 | GASKET SET Powerhead | 812939A1 | SS |
|
$211.33 | $199.02 | 1 |
