| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

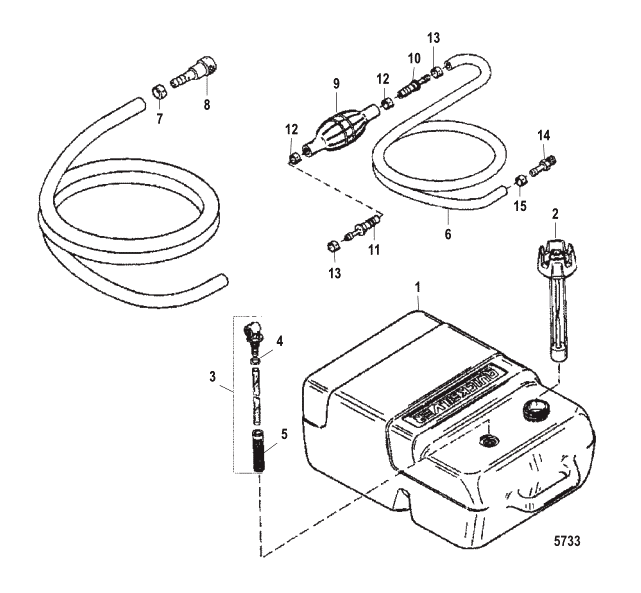

| 1 | 859063A1 | TANK ASSEMBLY Fuel - Plastic 6.6 Gallon | 823504A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 816976Q1 | GAUGE/CAP ASSEMBLY | 823536 | REP |
|
$22.33 | $21.93 | 1 | |
| 3 | 8M0175545 | CONNECTOR KIT Fuel | 823532A1 | SS |
|
$35.17 | $34.54 | 1 | |
| 4 | 823533 | ----O-RING | ACT | $6.20 | $6.05 | 1 | |||
| 5 | 823534 | ----SCREEN | ACT | $15.39 | $15.02 | 1 | |||
| 6 | 8M0126969 | FUEL LINE ASSEMBLY | 881807 | SS |
|
$154.67 | $145.65 | 1 | |
| 7 | 853798 | ----CLAMP | ACT | $2.70 | $2.64 | 1 | |||
| 8 | 8M0120628 | ----CONNECTOR Fuel | 8537361 | SS |
|
$55.83 | $53.71 | 1 | |
| 9 | 13330Q07 | ----BULB ASSEMBLY Primer | 13330A3 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 10 | 13331A3 | --------CHECK VALVE ASSEMBLY (Inlet) | 13331A1 | SS |
|
$12.50 | $12.19 | 1 | |
| 11 | 13331A4 | --------CHECK VALVE ASSEMBLY (Outlet) | 13331A2 | SS |
|
$13.10 | $12.78 | 1 | |
| 12 | 4158210 | --------CLAMP Nylon (Large) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 13 | 41582Q7 | --------CLAMP Nylon (Small) | 415827 | SS |
|
$8.39 | $8.20 | 2 | |
| 14 | 89771Q2 | ----CONNECTOR (.250-18) | 897711 | SS |
|
$16.29 | $15.90 | 1 | |
| 15 | 41582Q7 | ----CLAMP Nylon | 415827 | SS |
|
$8.39 | $8.20 | 1 |
