| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

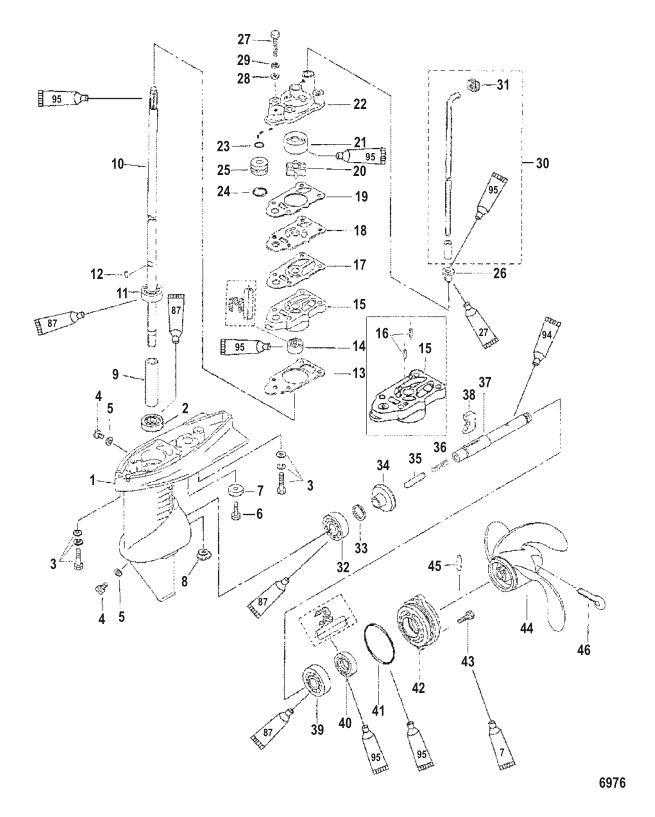

| - | 8M0122311 | GEAR HOUSING ASSEMBLY Complete | 825126A2 | SS |
|
$407.15 | $389.17 | 1 | |
| - | 8M0122312 | GEAR HOUSING ASSEMBLY Complete | 825126A3 | SS |
|
$407.15 | $389.17 | 1 | |
| 1 | 825126T06 | ----GEAR HOUSING ASSEMBLY Basic | 825126A1 | SS |
|
$197.26 | $185.76 | 1 | |
| 2 | 95342 | --------BEARING Ball (Lower) | ACT | $26.18 | $25.70 | 1 | |||
| 3 | 82304232 | ----BOLT | ACT | $5.70 | $5.56 | 2 | |||
| 4 | 953683 | ----PLUG | ACT | $0.00 | $0.00 | 2 | |||
| 5 | 8M0082880 | ----GASKET | 95220 | REP |
|
$6.09 | $5.95 | 2 | |
| 6 | 16832 | ----BOLT (M6 x 16) | ACT | $4.50 | $4.39 | 1 | |||
| 7 | 823913Q | ----ANODE | ACT | $20.49 | $20.11 | 1 | |||
| 8 | 8M0122680 | ----GEAR | 16138 | REP |
|
$167.17 | $157.43 | 1 | |
| 9 | 8104711 | ----SPACER | ACT | $14.60 | $14.24 | 1 | |||
| 10 | 8M0116958 | ----DRIVESHAFT | 823048 | SS |
|
$103.25 | $97.24 | 1 | |
| 10 | 8M0227907 | ----DRIVESHAFT | 8230481 | SS |
|
$123.50 | $116.31 | 1 | |
| 11 | 95342 | --------BEARING Ball | ACT | $26.18 | $25.70 | 1 | |||
| 12 | 16155 | ----KEY | ACT |
|
$4.00 | $3.91 | 1 | ||
| 13 | 898101333 | ----GASKET | 161642 | SS |
|
$6.80 | $6.64 | 1 | |
| 14 | 161621 | ----SEAL Oil | ACT |
|
$18.33 | $18.01 | 1 | ||
| 15 | 815113T03 | ----HOUSING Lower Water Pump | 161613 | SS |
|
$91.67 | $88.17 | 1 | |
| 16 | 9521811 | ----PIN Roll - Stainless Steel | ACT | $4.10 | $4.00 | 2 | |||
| 17 | 161603 | ----GASKET | 161601 | SS |
|
$5.70 | $5.56 | 1 | |
| 18 | 161591 | ----GUIDE PLATE | ACT |
|
$13.50 | $13.17 | 1 | ||
| 19 | 898101331 | ----GASKET | 161581 | SS |
|
$4.99 | $4.88 | 1 | |
| 20 | 8M0204676 | ----IMPELLER | 161543 | SS |
|
$27.99 | $27.44 | 1 | |
| 21 | 161571 | ----LINER | ACT |
|
$22.50 | $22.10 | 1 | ||
| 22 | 161561 | ----HOUSING Upper Water Pump | ACT | $70.25 | $67.57 | 1 | |||
| 23 | 161771 | ----O-RING | ACT |
|
$3.80 | $3.71 | 1 | ||
| 24 | 161781 | ----O-RING | ACT |
|
$5.10 | $4.98 | 1 | ||
| 25 | 161761 | ----BUSHING | ACT | $5.80 | $5.66 | 1 | |||
| 26 | 953611 | ----GROMMET | ACT | $4.80 | $4.69 | 1 | |||
| 27 | 8M0063198 | ----BOLT | 161251 | SS |
|
$7.10 | $6.93 | 4 | |
| 28 | 16826 | ----WASHER Stainless Steel | ACT |
|
$3.30 | $3.22 | 4 | ||
| 29 | 400256 | ----LOCKWASHER (M6) | ACT | $1.80 | $1.76 | 4 | |||
| 30 | 953591 | ----TUBE Water | ACT |
|
$38.67 | $37.97 | 1 | ||
| 30 | 953592 | ----TUBE Water | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | 953601 | --------GROMMET | ACT | $3.70 | $3.61 | 1 | |||
| 32 | 16128 | ----BEARING Ball | ACT | $29.67 | $29.13 | 1 | |||
| 33 | 16141 | ----SHIM (0.1) | ACT | $6.79 | $6.64 | AR | |||
| 33 | 813277 | ----SHIM (0.15) | ACT | $9.70 | $9.46 | AR | |||
| 34 | 8M0122680 | ----GEAR | 878343 | SS |
|
$167.17 | $157.43 | 1 | |
| 35 | 823050 | ----PUSH ROD | ACT | $17.40 | $16.97 | 1 | |||
| 36 | 176671 | ----SPRING | ACT | $5.50 | $5.37 | 1 | |||
| 37 | 952911 | ----PROPELLER SHAFT | ACT | $205.58 | $193.59 | 1 | |||
| 38 | 823049 | ----CLUTCH | ACT | $89.00 | $85.61 | 1 | |||
| 39 | 95344 | ----BEARING Ball | ACT | $26.50 | $26.03 | 1 | |||
| 40 | 95348 | ----SEAL Oil | ACT |
|
$16.00 | $15.61 | 1 | ||
| 41 | 16131 | ----O-RING | ACT |
|
$9.90 | $9.66 | 1 | ||
| 42 | 825116 | ----HOUSING | ACT | $60.84 | $58.51 | 1 | |||
| 43 | 167051 | ----BOLT (M6 x 20) | ACT | $6.10 | $5.95 | 2 | |||
| 44 | 815083A02 | PROPELLER Plastic (3 x 7.4 x 7) | 8150831 | SS |
|
$71.84 | $69.19 | 1 | |
| 44 | 815084A02 | PROPELLER Aluminum (3 x 7.4 x 7) | 8150841 | SS |
|
$103.00 | $96.26 | 1 | |
| 45 | 815111Q02 | PIN Brass | 8151111 | SS |
|
$11.99 | $11.77 | 1 | |
| 45 | 815111Q02 | SHEAR PIN Stainless Steel | 815111 | SS |
|
$11.99 | $11.77 | 1 | |
| 46 | 95295 | COTTER PIN | ACT | $7.19 | $7.03 | 1 | |||
| - | 8M0082881 | GASKET SET Lower Unit | 95220A4 | SS |
|
$51.50 | $49.54 | 1 | |
| - | 8M0080264 | REPAIR KIT Water Pump | 16159A2 | SS |
|
$96.99 | $93.30 | 1 |
