| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

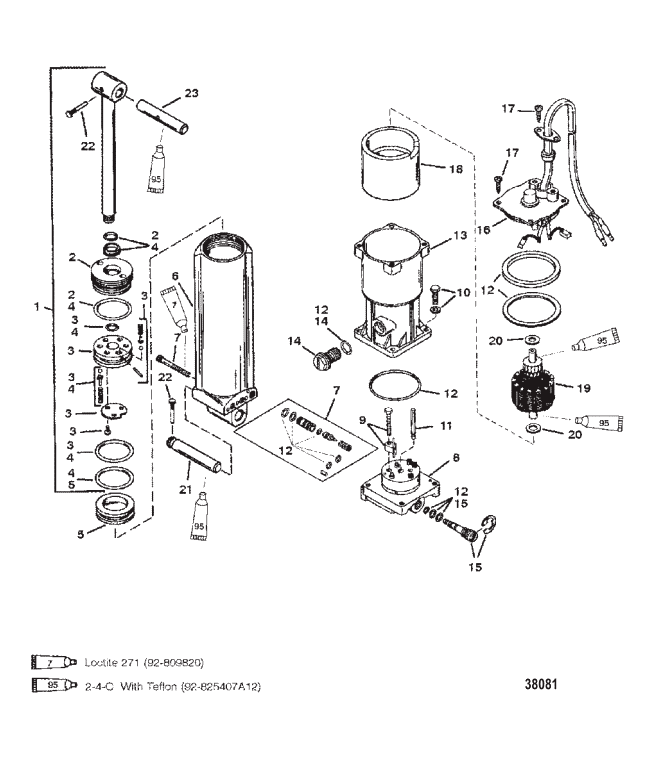

| - | 830150T2 | PUMP ASSEMBLY | 822870A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 01 | 893943A01 | SHOCK ROD KIT | 8134271 | SS |
|
$595.36 | $560.12 | 1 | |
| 02 | 813428 | END CAP ASSEMBLY Trim Cylinder | NLA |
|
$0.00 | $0.00 | 1 | ||
| 03 | 813429 | PISTON ASSEMBLY Shock | NLA |
|
$0.00 | $0.00 | 1 | ||
| 04 | 813432A3 | SEAL KIT Cylinder | NLA |
|
$0.00 | $0.00 | 1 | ||
| 05 | 810776 | PISTON KIT Memory | NLA |
|
$0.00 | $0.00 | 1 | ||
| 06 | 8M0055016 | CYLINDER KIT | 811228 | SS |
|
$494.15 | $472.33 | 1 | |
| 07 | 811678A6 | SCREW AND SEAL KIT | 811226A1 | SS |
|
$162.50 | $153.03 | 1 | |
| 08 | 8M0055020 | PUMP/MANIFOLD KIT | 8116706 | NLA |
|
$0.00 | $0.00 | 1 | |
| 09 | 809901A2 | ROCKER ARM KIT | 823180A1 | NLA |
|
$0.00 | $0.00 | 1 | |
| 10 | 813436 | SCREW KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 811671 | DRIVESHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 811672A4 | O-RING KIT | 811672A3 | SS |
|
$124.42 | $117.17 | 1 | |
| 13 | 8M0055020 | RESERVOIR | 811673 | NLA |
|
$0.00 | $0.00 | 1 | |
| 14 | 8134351 | PLUG KIT | 813435 | SS |
|
$41.92 | $41.16 | 1 | |
| 15 | 893929A01 | MANUAL RELEASE ASSEMBLY | 813442A2 | SS |
|
$73.25 | $70.46 | 1 | |
| 16 | 893907A02 | CAP KIT Reservoir | 811677 | REP |
|
$714.93 | $672.61 | 1 | |
| 17 | 813446 | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 893907A02 | RESERVOIR/MOTOR | 811674 | REP |
|
$714.93 | $672.61 | 1 | |
| 19 | 811675 | ARMATURE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 811676 | THRUST WASHER KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 19607 | PIN | ACT | $23.66 | $23.24 | 1 | |||
| 22 | 821539 | PIN Trilobe | ACT | $4.60 | $4.49 | 2 | |||
| 23 | 822869001 | PIN | 822869 | SS |
|
$30.50 | $29.95 | 1 |
