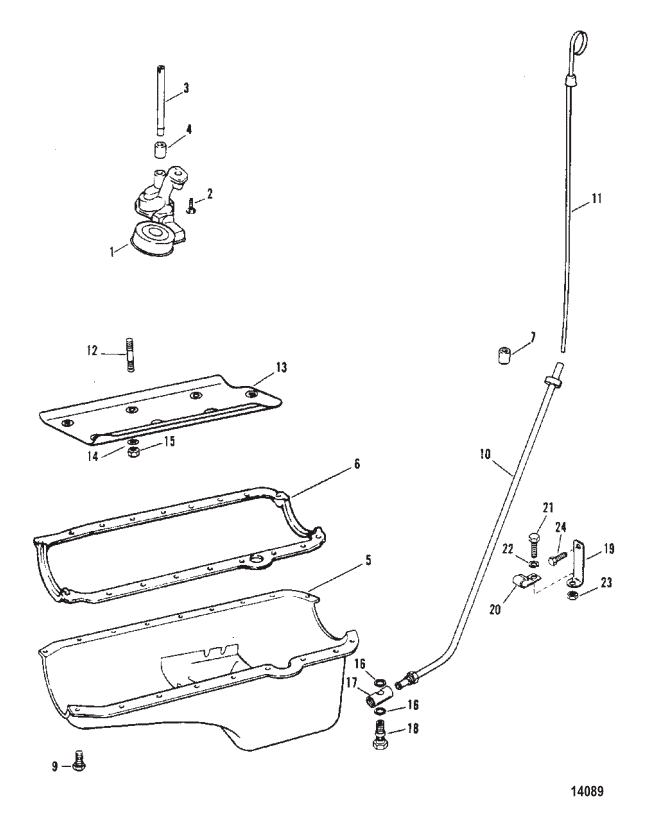

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 827643 | PUMP ASSY-OIL | ACT | $370.99 | $334.09 | 1 | |||
| 2 | 813071 | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 8M0046892 | SHAFT & RETAINER | 14761 | SS |
|
$48.49 | $47.55 | 1 | |
| 4 | 36183 | RETAINER | ACT | $5.49 | $5.37 | 1 | |||
| 5 | 8M0230565 | PAN ASSY-OIL | 811549 | SS |
|
$681.49 | $620.65 | 1 | |
| 6 | 845628 | GASKET | 811566 | SS |
|
$100.99 | $90.98 | 1 | |
| 7 | 818841 | PLUG | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 34500 | SCREW | ACT | $18.99 | $18.58 | 20 | |||
| 10 | 805162T1 | TUBE-DIPSTICK (PORT) | ACT | $84.99 | $79.97 | 1 | |||
| 10 | 805162T | TUBE-DIPSTICK (STARBOARD) | ACT | $141.49 | $127.49 | 1 | |||
| 11 | 861942T5 | DIPSTICK (HURTH) | 821503T1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 11 | 861942T4 | DIPSTICK (BORG WARNER) | 821503T | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 12 | 843375 | STUD | 811683 | SS |
|
$41.99 | $41.16 | 4 | |
| 13 | 843945T | BAFFLE | 811682 | SS |
|
$43.49 | $42.55 | 1 | |
| 14 | 49112 | WASHER | NLA |
|
$0.00 | $0.00 | 4 | ||
| 15 | 37500 | NUT | ACT | $4.59 | $4.49 | 4 | |||
| 16 | 8M0077608 | GASKET Drain | 49955 | SS |
|
$17.89 | $17.46 | 2 | |
| 17 | 821504 | FITTING-BANJO | ACT | $53.49 | $50.39 | 1 | |||
| 18 | 805498 | BOLT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 48134 | BRACKET | NLA |
|
$0.00 | $0.00 | 2 | ||
| 20 | 92338 | CLIP | NLA |
|
$0.00 | $0.00 | 2 | ||
| 21 | 54630 | SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 22 | 39107 | LOCKWASHER | ACT | $1.50 | $1.47 | 2 | |||
| 23 | 22053 | NUT | ACT | $0.20 | $0.20 | 2 | |||
| 24 | 98260 | SCREW | ACT | $1.10 | $1.08 | 1 | |||
| - | 811547A92 | GASKET SET Overhaul | NLA |
|
$0.00 | $0.00 | 1 |
