| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

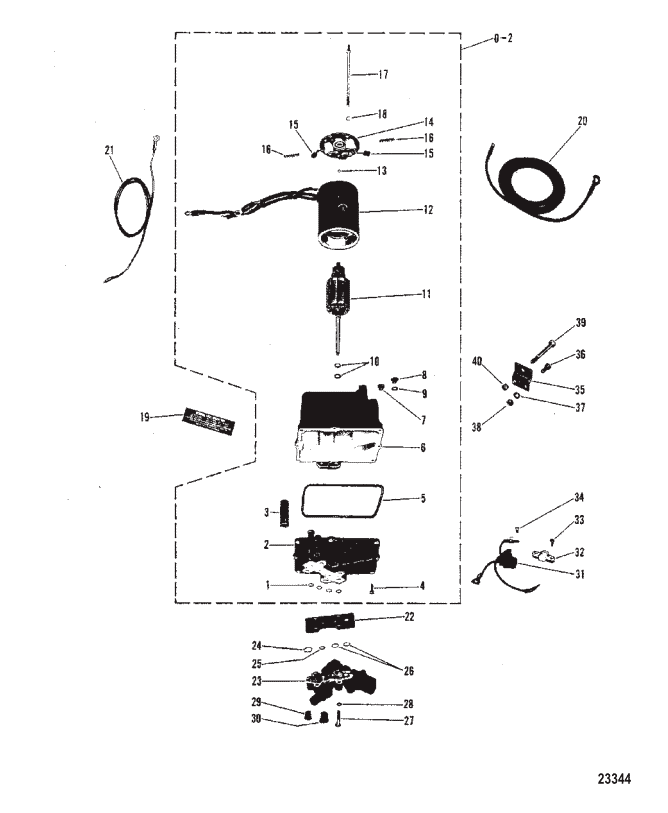

| 0-1 | 76509A24 | POWER TRIM KIT | 45194A23 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 0-2 | 92975A32 | ----HYDRAULIC PUMP | 76395A5 | SS |
|
$1,073.49 | $961.49 | 1 | |
| 1 | 48171 | --------O RING PUMP BASE | 21720 | SS |
|
$1.70 | $1.66 | 4 | |
| 2 | 7734 | --------BODY AND GEAR | 2936 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 3 | 2618 | ------------NLA VALVE BODY | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 20411 | --------SCREW VALVE TO RESERVOIR | NLA |
|
$0.75 | $0.74 | 8 | ||
| 5 | 7735 | --------O RING VALVE TO RESERVOIR | 2937 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 6 | 2939 | --------NLA | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 62269 | --------SCREW VENT | 38257 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 8 | 79953Q04 | --------SCREW FILL | 28634 | SS |
|
$7.49 | $7.32 | 1 | |
| 9 | 8M0187157 | --------WASHER FILL SCREW | 20260 |
|
$1.49 | $1.46 | 1 | ||
| 10 | 2623 | --------WASHER ARMATURE | NLA |
|
$0.00 | $0.00 | AR | ||
| 11 | 2943 | --------ARMATURE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 2942 | --------FRAME AND FIELD | NLA |
|
$186.86 | $172.85 | 1 | ||
| 13 | 2944 | --------BALL END PLATE | NLA |
|
$6.83 | $6.65 | 1 | ||
| 14 | 2940 | --------COMMUTATOR HEAD | NLA |
|
$74.15 | $71.32 | 1 | ||
| 15 | 8989 | ------------BRUSH SET | 2941 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 16 | 2529 | --------SPRING SET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 2938 | --------NLA | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 26996 | --------LOCKWASHER | ACT | $1.20 | $1.18 | 2 | |||
| 19 | 55901 | ----DECAL INSTRUCTION | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 32979 | ----BATTERY LEAD (+) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 32988 | ----BATTERY LEAD (-) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 45336 | ----PLATE MANIFOLD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 45197A2 | ----VALVE ASSY | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 48171 | --------O RING | 21720 | SS |
|
$1.70 | $1.66 | 4 | |
| 24 | 45254 | --------O RING VALVE TO MANIFOLD | ACT | $1.99 | $1.95 | 1 | |||
| 25 | 48171 | --------O RING VALVE TO MANIFOLD | 21720 | SS |
|
$1.70 | $1.66 | 1 | |
| 26 | 45253 | --------O RING VALVE TO MANIFOLD | ACT | $1.60 | $1.57 | 2 | |||
| 27 | 56500 | ----SCREW VALVE ATTACHING | ACT | $2.89 | $2.82 | 4 | |||
| 28 | 26992 | ----LOCKWASHER | ACT | $1.20 | $1.18 | 4 | |||
| 29 | 38609 | ----PLUG VALVE (3/8 INCH) | ACT | $18.59 | $18.14 | 2 | |||
| 30 | 46008 | ----PLUG VALVE (1/2 INCH) | ACT | $4.49 | $4.39 | 2 | |||
| 31 | 74023A1 | ----CONNECTOR | 74023 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 32 | 45559 | ----BLOCK-TERMINAL PUMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 35519 | ----SCREW BLOCK TO PUMP | NLA |
|
$0.00 | $0.00 | 2 | ||
| 34 | 62568 | ----SCREW HARNESS TO BLOCK | ACT | $1.10 | $1.08 | 2 | |||
| 35 | 45377T | ----BRACKET PUMP MOUNTING | 45377 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 36 | 35386 | ----SCREW BRACKET TO PUMP | 24234 | SS |
|
$1.10 | $1.08 | 4 | |
| 37 | 39107 | ----LOCKWASHER | ACT | $1.50 | $1.47 | 4 | |||
| 38 | 21908 | ----NUT | ACT | $3.19 | $3.11 | 4 | |||
| 39 | 68298 | ----SCREW PUMP TO BOAT | NLA |
|
$0.00 | $0.00 | 2 | ||
| 40 | 82670912 | ----NUT | 68411 | SS |
|
$6.79 | $6.64 | 2 |
