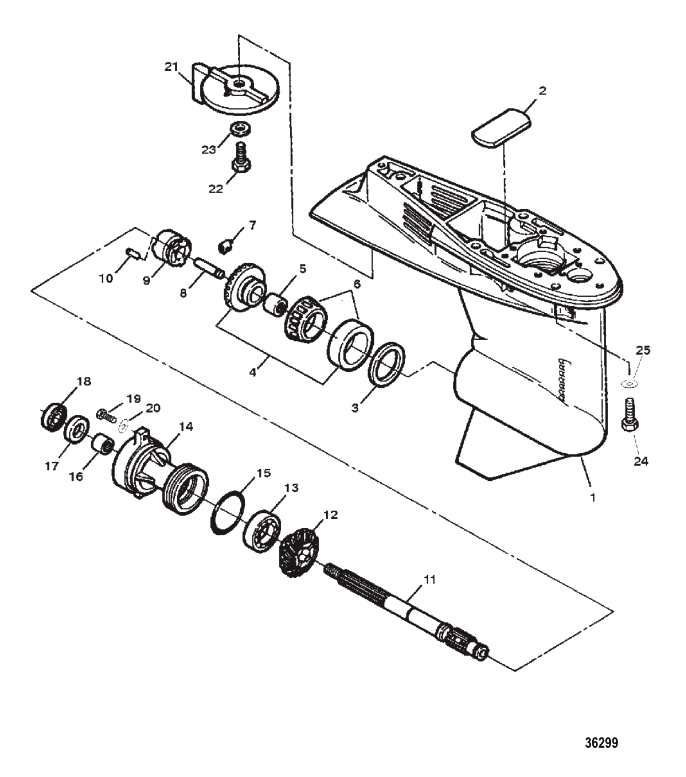

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 819123T8 | GEAR HSG ASY-COMP (Painted) | 819123A8 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 819123T7 | ----GEAR HSG-BASIC (Painted) | 819123A7 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 818226A1 | --------PLATE KIT-FILLER Filler | ACT |
|
$7.19 | $7.03 | 1 | ||
| 3 | 8M0063263 | ----ORD 15-8M0063263 Front Gear | 812769A1 | REP |
|
$74.49 | $71.58 | 1 | |
| 4 | 819050T1 | ----GEAR ASSY-FRONT Forward | 819050A1 | SS |
|
$381.49 | $364.59 | 1 | |
| 5 | 21739 | --------BEARING Needle | ACT |
|
$18.59 | $18.14 | 1 | ||
| 6 | 8M0103476 | --------BEARING KIT (Cone And CUP) | 812767A1 | SS |
|
$52.99 | $50.74 | 1 | |
| 7 | 817474 | ----YOKE Gear Shift | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 817470 | ----PIN-SHIFT Shift | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 817463 | ----CLUTCH | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 817467 | ----PIN-SPRING Spring | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 817461 | ----PROPSHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 817684T | ----GEAR-REAR Reverse | 817684 | SS |
|
$361.99 | $345.82 | 1 | |
| 13 | 20839T | ----BEARING-BALL | 20839 | SS |
|
$79.99 | $76.87 | 1 | |
| 14 | 8M0168900 | ----CARRIER ASSY | 19291A3 | SS |
|
$311.49 | $293.11 | 1 | |
| 15 | 815460 | --------O RING | ACT |
|
$2.99 | $2.92 | 1 | ||
| 16 | 21700 | --------BEARING | ACT |
|
$19.29 | $18.82 | 1 | ||
| 17 | 8M0205511 | --------SEAL | 69188 | SS |
|
$19.29 | $18.82 | 1 | |
| 18 | 8M0203757 | --------SEAL (LINE CUTTING) | 69189 | SS |
|
$19.09 | $18.74 | 1 | |
| 19 | 4000353 | ----SCREW | ACT |
|
$2.89 | $2.82 | 2 | ||
| 20 | 8M0042642 | ----WASHER | 70132 | SS |
|
$1.80 | $1.76 | 2 | |
| 21 | 17264T2 | ----TRIM TAB | ACT |
|
$32.89 | $32.24 | 1 | ||
| 22 | 858771 | ----ORD 858771 | 1993330 | REP |
|
$2.39 | $2.33 | 1 | |
| 23 | 8M0214963 | ----WASHER | 45175 | SS |
|
$2.59 | $2.53 | 1 | |
| 24 | 19925150 | SCREW With Dri Lok | NLA |
|
$0.00 | $0.00 | 5 | ||
| 25 | 8M0214963 | WASHER | 45175 | SS |
|
$2.59 | $2.53 | 5 | |
| - | 814669A2 | SEAL KIT-G/H | ACT | $75.49 | $72.38 | 1 | |||
| - | 819123T7 | GEAR HSG-BASIC (BASIC) | 819123A7 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 819123T8 | GEAR HSG ASY-COMP (COMPLETE) | 819123A8 | SS/NLA |
|
$0.00 | $0.00 | 1 |
