| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

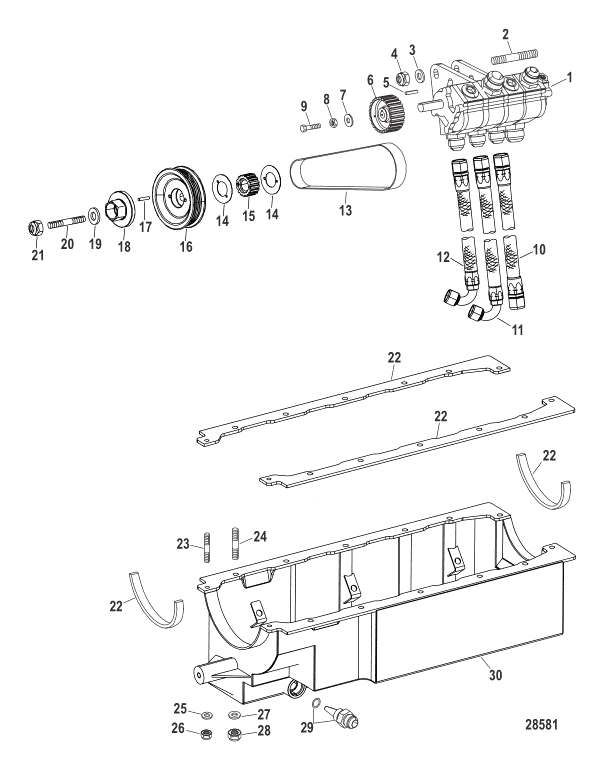

| 1 | 841437A1 | PUMP ASSEMBLY Oil | ACT | $4,944.81 | $4,531.65 | 1 | |||
| 2 | 822818 | STUD Special | ACT | $13.91 | $13.72 | 2 | |||
| 3 | 822957 | WASHER Special | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 823143 | NUT Special | ACT | $2.71 | $2.68 | 2 | |||
| 5 | 8424171 | KEY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 8M0005784 | PULLEY Oil Pump | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 35280 | WASHER (.255 x .620 x .030) Stainless Steel | ACT | $3.20 | $3.13 | 1 | |||
| 8 | 29598 | NUT (.250-28) Stainless S | ACT | $2.90 | $2.83 | 1 | |||
| 9 | 69028 | SCREW (.250-28 x .750) Stainless Steel | ACT | $2.90 | $2.83 | 1 | |||
| 10 | 8M0042169 | HOSE ASSEMBLY (11.00 Inches) Straight Swivel Ends - Back Of Oil Pump To Front Of Pan | 8M0010796 | REP |
|
$220.77 | $210.96 | 1 | |
| 11 | 8M0042170 | HOSE ASSEMBLY (20.75 Inches) Straight/90 Degree Swivel Ends - Center Of Oil Pump To Center Of Pan | 8M0010797 | REP |
|
$303.77 | $290.27 | 1 | |
| 12 | 8M0042171 | HOSE ASSEMBLY (30.00 Inches) Straight/90 Degree Swivel Ends - Front Of Oil Pump To Rear Of Pan | 8M0010798 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 13 | 841838 | BELT Oil Pump | ACT | $225.87 | $215.85 | 1 | |||
| 14 | 8M0009073 | SEPARATOR Oil Pump Gear - Stainless Steel | NLA |
|
$0.00 | $0.00 | 2 | ||
| 15 | 8M0053649 | GEAR Oil Pump (16 Tooth) | 8452411 | SS |
|
$219.51 | $209.76 | 1 | |
| 16 | 899898T72 | PULLEY Crankshaft - Polished/Clear Coat | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 35973 | PIN Dowel | ACT | $1.80 | $1.76 | 2 | |||
| 18 | 845243 | HAT WASHER | ACT | $194.77 | $186.12 | 1 | |||
| 19 | 816258 | WASHER (.500 x .875 x .120) Special | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 840022 | STUD (.500-13/.500-20 x 4.375) | ACT | $18.20 | $17.95 | 1 | |||
| 21 | 816256 | NUT (.500-20) 12 Point | ACT | $5.30 | $5.23 | 1 | |||
| 22 | 8M8024634 | GASKET SET Oil Pan | ACT |
|
$63.33 | $61.48 | 1 | ||
| 23 | 822961 | STUD (.250-20/.250-28 x 1.500) | ACT |
|
$8.78 | $8.65 | 2 | ||
| 24 | 848019 | STUD (.312-18/.312-24 x 1.625) | ACT |
|
$8.92 | $8.79 | 12 | ||
| 25 | 20028 | WASHER (.265 x .437 x .06 | ACT |
|
$1.80 | $1.76 | 2 | ||
| 26 | 35888 | NUT (.250-28) Stainless S | ACT |
|
$6.90 | $6.73 | 2 | ||
| 27 | 8M0042642 | WASHER (.323 x .563 x .06 | 70132 | SS |
|
$1.80 | $1.76 | 12 | |
| 28 | 82670911 | NUT (.312-24) Stainless S | ACT |
|
$4.98 | $4.86 | 10 | ||
| 28 | 8M0141577 | NUT (.312-24) 12 Point Rear Stud Attaching | 841810 | SS |
|
$5.31 | $5.24 | 2 | |
| 29 | 8M0050231 | FITTING ASSEMBLY With Screen And O-Ring | 845168A1 | SS |
|
$124.67 | $119.13 | 3 | |
| 30 | 841853 | PAN Oil - Dry Sump | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 842593A01 | GASKET/SEAL SET Engine Overhaul | ACT |
|
$2,149.25 | $1,969.67 | 1 | ||
| - | 841350A07 | PARTIAL ENGINE ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 841000A17 | PARTIAL ENGINE ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 841950A07 | PARTIAL ENGINE ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 |
