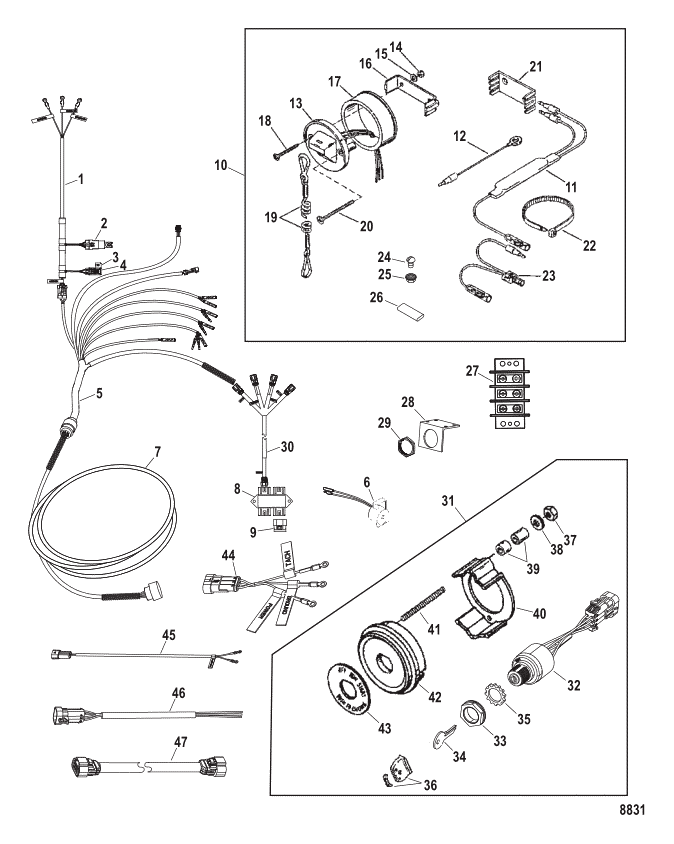

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
- 8M8024584 RIGGING KIT Quad Engines 844170K04 SS/NLA $0.00 $0.00 1
1 896040T01 ----HARNESS ASSEMBLY Analog Gauge NLA $0.00 $0.00 4
2 8M0207773 --------RELAY ASSEMBLY 882751A1 SS $22.49 $22.17 4
3 828054 --------COVER Fuse ACT $5.90 $5.76 4
4 862646 --------FUSE Tan - 5 Ampere ACT $4.10 $4.00 4
5 8M0074825 ----HARNESS ASSEMBLY Helm Instrumentation 892956A03 SS $610.00 $574.61 4
6 8M0210763 --------ALARM ASSEMBLY Audio Warning Remote Mount 816492A1 SS $55.74 $53.63 4
7 892451T30 ----HARNESS ASSEMBLY Data (30 Feet) ACT $326.26 $307.22 4
8 8M0165557 ----JUNCTION BOX KIT 4 Way 878492K14 REP $75.85 $72.38 1
9 8M0210752 --------CAP ASSEMBLY Weather - Ju 859318B2 SS $13.79 $13.60 3
10 8M0139420 ----LANYARD KIT - Quad Stop Quad 895725A03 REP $200.90 $189.21 1
11 898289A72 --------DIODE ASSEMBLY 812497A2 REP $64.10 $61.64 2
12 11149A2 --------CABLE ASSEMBLY (6.00 Inches) ACT $16.50 $16.26 1
13 814324A2 --------SWITCH ASSEMBLY Lanyard 814324A3 SS $106.10 $99.92 1
14 68219 ------------NUT (#10-32) Stainless St ACT $3.00 $2.93 4
15 24676 ------------WASHER (.200 x .440 x .032) ACT $1.50 $1.47 2
16 814254 ------------CLAMP Mounting NLA $0.00 $0.00 1
17 814820 ------------ADAPTER Surface Mount NLA $0.00 $0.00 1
18 813523 ------------SCREW (#10-16 x 2.25) Surface Mount NLA $0.00 $0.00 2
19 15920Q54 ------------LANYARD ASSEMBLY NLA $0.00 $0.00 1
20 814762 ------------SCREW (#10-32 x 2.50) Flush Mount NLA $0.00 $0.00 2
21 79146 ------------RETAINER Connector ACT $5.60 $5.47 2
22 816311T ------------TIE STRAP (8.00 Inches) ACT $0.59 $0.58 10
23 11149A3 ------------CABLE ASSEMBLY ACT $4.70 $4.59 2
24 24231 ------------SCREW (#10-32 x .250) For Connecting Wire Connectors ACT $1.10 $1.08 2
25 27164 ------------NUT AND LOCKWASHER (#10-3 For Connecting Wire Connectors ACT $1.00 $0.98 2
26 623594 ------------INSULATOR (2.00 Inch) For Connecting Wire Connectors ACT $0.60 $0.59 2
27 8M0204701 ----BLOCK Terminal 889679 SS $14.41 $14.13 4
28 8M0051210 ----BRACKET Harness Mount 840019 SS $46.42 $45.75 4
29 889664 ----NUT (1.500-18) Black Nylon ACT $6.70 $6.54 4
30 892323A12 ----HARNESS ASSEMBLY Diode ACT $246.69 $235.73 1
31 88107A10 ----SWITCH KIT Key - Ignition ACT $65.59 $63.08 4
32 897716K01 --------SWITCH ASSEMBLY Key Ignition 88107T09 REP $70.48 $67.78 4
33 879755 ------------NUT Special - Black Nylon ACT $6.10 $5.95 4
34 894911 ------------KEY Ignition (1A) ACT $5.54 $5.42 AR
34 894912 ------------KEY Ignition (1B) ACT $5.54 $5.42 AR
34 894913 ------------KEY Ignition (1C) ACT $5.54 $5.42 AR
34 894914 ------------KEY Ignition (1D) ACT $5.54 $5.42 AR
34 894915 ------------KEY Ignition (1E) ACT $5.54 $5.42 AR
34 894916 ------------KEY Ignition (1F) ACT $5.54 $5.42 AR
34 894917 ------------KEY Ignition (2A) ACT $5.54 $5.42 AR
34 894918 ------------KEY Ignition (2B) ACT $5.54 $5.42 AR
34 894919 ------------KEY Ignition (2C) ACT $5.54 $5.42 AR
34 8949110 ------------KEY Ignition (2D) ACT $5.54 $5.42 AR
34 8949111 ------------KEY Ignition (2E) ACT $5.54 $5.42 AR
34 8949112 ------------KEY Ignition (2F) ACT $5.54 $5.42 AR
35 89989 --------LOCKWASHER Internal (.818) ACT $3.70 $3.61 4
36 90468A1 --------COVER ASSEMBLY Key ACT $4.77 $4.71 8
37 68219 --------NUT (#10-32) Stainless St ACT $3.00 $2.93 8
38 24676 --------WASHER (.200 x .440 x .032) ACT $1.50 $1.47 8
39 812711 --------SPACER (.250) ACT $4.20 $4.10 8
39 8127111 --------SPACER (.375) ACT $4.20 $4.10 8
40 76424 --------BRACKET Switch Mount ACT $15.70 $15.31 4
41 55422 --------STUD (#10-32 x 2.00) ACT $6.80 $6.64 8
42 816479A3 --------PLATE KIT Switch Mounting ACT $39.67 $38.95 4
43 823853 ------------INSERT Switch Plate (Off-Run-Start) Switch Plate ACT $1.56 $1.54 4
44 896042A01 ----HARNESS ASSEMBLY Tachometer Adapter ACT $22.00 $21.70 4
45 896041A01 ----HARNESS ASSEMBLY Fuse Adapter ACT $22.00 $21.70 4
46 896270A01 ----HARNESS ASSEMBLY Keyswitch Adapter ACT $70.00 $67.88 4
47 8M0071598 ----HARNESS ASSEMBLY (CAN #1 And #3 Link - 10 Feet) 896206T10 SS $117.85 $112.66 2
