| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

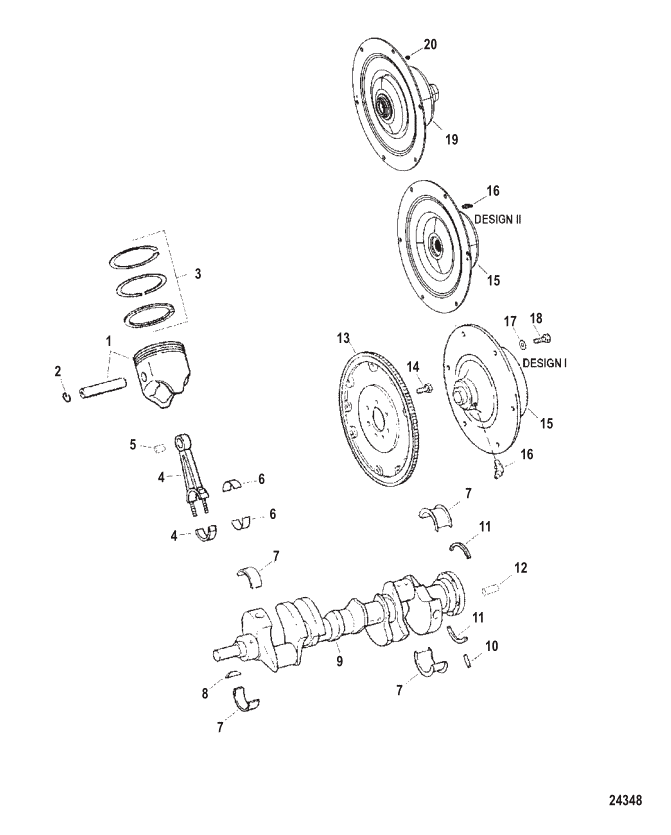

| 1 | 813058T1 | PISTON ASSY-STD | NLA |
|
$0.00 | $0.00 | 8 | ||
| 1 | 813059A1 | PISTON ASSY-.030 | ACT |
|
$372.79 | $356.24 | 8 | ||
| 2 | 17799 | ----RETAINER Piston Pin | NLA |
|
$0.00 | $0.00 | 16 | ||
| 3 | 818629 | RING SET-STD Piston | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 4273335 | RING SET-.035 Piston | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 845612T5 | CONN ROD ASSY | NLA |
|
$0.00 | $0.00 | 8 | ||
| 5 | 42839 | ----BUSHING Conn Rod | NLA |
|
$0.00 | $0.00 | 8 | ||
| 6 | 841447A1 | BRG KIT-STD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 841448A1 | BRG KIT-.001 OS | NLA |
|
$0.00 | $0.00 | AR | ||
| 6 | 841449A1 | BRG KIT-.001 US | NLA |
|
$0.00 | $0.00 | AR | ||
| 6 | 8M0030982 | BRG SET-.010 | 841450 | SS |
|
$49.49 | $48.36 | AR | |
| 7 | 8M0051198 | BEARING KIT-STD | 842400 | SS |
|
$406.06 | $388.03 | 1 | |
| 7 | 8M0053743 | BRG KIT-.001 OS | 842401 | SS |
|
$336.29 | $321.35 | AR | |
| 7 | 842402 | BRG KIT-.001 US | ACT |
|
$382.99 | $360.68 | AR | ||
| 7 | 8M0053549 | BRG KIT-.010 US | 842403 | SS |
|
$257.12 | $245.70 | AR | |
| 8 | 34466 | KEY Crankshaft | ACT |
|
$3.69 | $3.59 | 2 | ||
| 9 | 845867 | CRANKSHAFT | 845867T | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 10 | 843378 | PIN-DOWEL (.250 Diameter) Rear Main Cap | 35312 | SS |
|
$15.99 | $15.61 | 2 | |
| 11 | 8M0062773 | SEAL Oil | 14756 | SS |
|
$139.49 | $131.29 | 1 | |
| 12 | 816986 | PIN-DOWEL Dowel - Crankshaft | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 94251 | FLYWHEEL Internal Balanced | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 8M0214958 | SCREW | 49845 | SS |
|
$5.89 | $5.76 | 6 | |
| 15 | 8M0098795 | COUPLING ASSY | 18311A17 | SS |
|
$744.49 | $744.49 | 1 | |
| 15 | 8M0098795 | COUPLER ASSY | 861523A9 | SS |
|
$744.49 | $744.49 | 1 | |
| 15 | 8M0098797 | COUPLER ASSY | 861523A18 | SS |
|
$1,455.99 | $1,334.68 | 1 | |
| 16 | 8M0169590 | ----FITTING Grease | 49099 | SS |
|
$4.59 | $4.49 | 2 | |
| 17 | 8M0214963 | ----WASHER | 856774 | SS |
|
$2.59 | $2.53 | 6 | |
| 18 | 35091 | ----SCREW | ACT | $16.59 | $16.19 | 6 | |||
| 19 | 8M0098796 | COUPLER ASSY | 861523A7 | SS |
|
$1,049.99 | $962.56 | 1 | |
| 20 | 8M0169589 | ----FITTING | 74036 | SS |
|
$4.79 | $4.69 | 2 | |
| - | 99386A96 | GASKET SET Engine Overhaul | NLA |
|
$0.00 | $0.00 | 1 |
