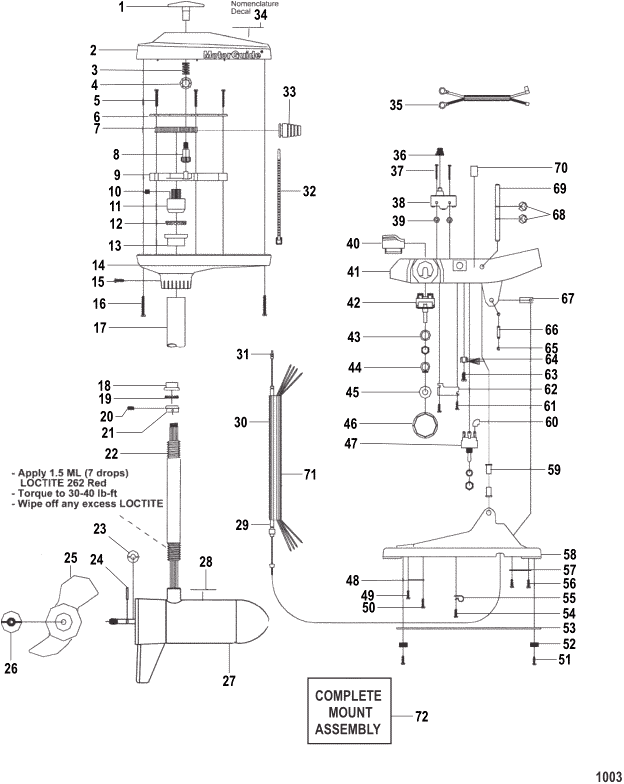

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MM5918 | INDICATOR Top Cover | MJF078044 | SS/NLA |  | $14.75 | $14.48 | 1 | |
| 2 | MM5905 | COVER ASSEMBLY Top | MDF053144 | SS/NLA | | $22.26 | $21.86 | 1 | |
| 2 | MM5905 | COVER ASSEMBLY Top | MDF053194 | SS/NLA | | $22.26 | $21.86 | 1 | |
| - | MJF18102T | ----MEDALLION MotorGuide - Si | MJF18102 | SS/NLA | | $4.87 | $4.79 | 2 | |
| 3 | MAF01401T | ----SPRING | MAF01401 | SS/NLA | | $0.68 | $0.67 | 1 | |
| 4 | MAF04601T | ----CLIP | MAF04601 | SS/NLA | | $2.13 | $2.15 | 1 | |
| 5 | MXF13301T | SCREW (#6 x 1.125) | MAF13301 | SS | | $4.99 | $4.96 | 3 | |
| 6 | MAF12701T | COVER Rack Guide | MAF12701 | SS/NLA | | $5.34 | $5.25 | 1 | |
| 7 | MAP12501T | RACK | MAP12501 | SS/NLA | | $9.44 | $9.31 | 1 | |
| 8 | MAF06901T | GEAR Indicator | MAF06901 | SS | | $3.29 | $3.25 | 1 | |
| 9 | MAF12601T | RACK GUIDE | MAF12601 | SS | | $4.39 | $4.37 | 1 | |
| 10 | M899381T | SET SCREW (.250) | MAF14201 | SS | | $0.48 | $0.48 | 1 | |
| 11 | M879293A1 | NUT ASSEMBLY Pinion | MAF39801 | SS/NLA | | $19.99 | $19.78 | 1 | |
| 12 | MAF00501T | BEARING Ball (1.553 Outsi | MAF00501 | SS | | $2.99 | $2.96 | 1 | |
| 13 | MAF00701T | RETAINER CUP Bearing | MAF00701 | SS | | $1.99 | $1.93 | 1 | |
| 14 | MJF00403T | COVER Bottom | MJF00403 | SS/NLA | | $9.45 | $9.30 | 1 | |
| 15 | MAP13301T | SCREW (#6 x .625) | MAP13301 | SS/NLA | | $5.81 | $5.72 | 1 | |
| 16 | MRT13301T | SCREW (#8 x 1.375) | MAR13301 | SS/NLA | | $1.82 | $1.79 | 3 | |
| 17 | MAF16501T | TUBE Outer (13.00 Inches) | MAF16501 | SS/NLA | | $16.04 | $15.82 | 1 | |
| 17 | MBF16506T | TUBE Outer (20.00 Inches) | MAF16506 | SS/NLA | | $32.99 | $32.53 | 1 | |
| 18 | 8M0094911 | RETAINER CUP Bearing (1.5 | MFM00701 | SS/NLA | | $10.69 | $10.60 | 1 | |
| 19 | MFM00501T | BEARING Ball (1.546 Outsi | MFM00501 | SS | | $2.72 | $2.69 | 1 | |
| 20 | M899381T | SET SCREW (#10) | MAF14301 | SS | | $0.48 | $0.48 | 1 | |
| 21 | MSS00601S | CONE Bearing | MAF00605B | SS/NLA | | $18.89 | $18.75 | 1 | |
| 22 | MAF04920T | COLUMN (36.00 Inches) Aluminum | MDF04901 | SS/NLA | | $57.99 | $56.52 | 1 | |
| 22 | MAF04920T | COLUMN (36.00 Inches) Stainless Steel | MAF04901 | SS/NLA | | $57.99 | $56.52 | 1 | |
| 22 | MAF04921T | COLUMN (42.00 Inches) Aluminum | MDF04902 | NLA | | $69.54 | $67.75 | 1 | |
| 22 | MAF04921T | COLUMN (42.00 Inches) Stainless Steel | MAF04909 | SS/NLA | | $69.54 | $67.75 | 1 | |
| 22 | MAF04923T | COLUMN (50.00 Inches) Stainless Steel | MAF04910 | SS/NLA | | $78.74 | $77.09 | 1 | |
| 23 | MAR17501T | WASHER (.385 x .885 x .09 | MAR17501 | SS | | $1.75 | $1.73 | 1 | |
| 24 | MBR10201T | PIN Prop Drive (.125 x 1. | MBR10201 | SS | | $1.59 | $1.57 | 1 | |
| 24 | MBR10202T | PIN Prop Drive (.156 x 1. | MBR10202 | SS/NLA | | $3.02 | $2.95 | 1 | |
| 25 | MVP12401T | PROPELLER 2 Blade Nylon - 3.5 Inch | MAF12405 | SS/NLA | | $24.99 | $24.78 | 1 | |
| 25 | MAF12415T | PROPELLER 3 Blade Nylon - 3.5 Inch - Machete II | MAF12412 | SS | | $43.99 | $43.19 | 1 | |
| 25 | MAF12415T | PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub | MAF12415 | SS | | $43.99 | $43.19 | 1 | |
| 26 | MAR09902T | PROP NUT | MAR09901 | SS/NLA | | $3.32 | $3.29 | 1 | |
| 27 | M899701T | LOWER UNIT ASSEMBLY Complete (52# - 5/2 Speed) Short Nose Cap | MDF397022 | SS/NLA | | $281.99 | $271.03 | 1 | |
| 27 | M899701T | LOWER UNIT ASSEMBLY Complete (54# - 5/2 Speed) Long Nose Cap | MDF397102 | SS/NLA | | $281.99 | $271.03 | 1 | |
| 28 | MAF06004T | DECAL Whisper Guide Propu | MAF06004 | SS/NLA | | $0.72 | $0.71 | 1 | |
| 28 | MET06009T | DECAL MotorGuide | MET06009 | SS/NLA | | $2.33 | $2.29 | 1 | |
| 29 | M9377 | CABLE/STUD ASSEMBLY Control (63.00 Inches) (63.00 Inches) | NLA | | $31.49 | $31.06 | 1 | ||
| 29 | M9767 | CABLE/STUD ASSEMBLY Control (69.00 Inches) (69.00 Inches) | NLA | | $47.29 | $46.92 | 1 | ||
| 30 | MLP32703T | CABLE ASSEMBLY Control (63.00 Inches) | MLP327062 | SS/NLA | | $56.39 | $54.87 | 1 | |
| 30 | MLP32703T | CABLE ASSEMBLY Control (69.00 Inches) | MLP327032 | SS/NLA | | $56.39 | $54.87 | 1 | |
| 31 | MAP14101C | STUD Control Cable | NLA | | $1.88 | $1.85 | 1 | ||
| 32 | 816311T | TIE STRAP (.16 x 7/8.00 I | MAF03001 | SS | | $0.59 | $0.58 | 1 | |
| 33 | MAP07104T | GROMMET | MAP07101 | SS/NLA | | $2.41 | $2.38 | 1 | |
| 34 | MDF05614 | DECAL Top Cover | NLA | | $0.00 | $0.00 | 1 | ||
| 34 | MDF05618 | DECAL Top Cover | NLA | | $0.00 | $0.00 | 1 | ||
| 35 | MM5893 | CABLE ASSEMBLY Battery | MEP328072 | SS/NLA | | $16.24 | $15.96 | 1 | |
| 35 | MM5893 | CABLE ASSEMBLY Battery | MEP328042 | SS/NLA | | $16.24 | $15.96 | 1 | |
| - | M899395T | FOOT PEDAL ASSEMBLY Complete (69.00 Inches) | MLP300652 | SS/NLA | | $152.45 | $146.34 | 1 | |
| 36 | MKP15701T | ----BOOT Micro Switch | MKP15701 | SS/NLA | | $2.13 | $2.10 | 1 | |
| 37 | MLP13501T | ----SCREW (#6-32 x 1.50) | MLP13501 | SS | | $3.29 | $3.28 | 2 | |
| 38 | MAP15104T | ----SWITCH ASSEMBLY Micro | MAP15101 | SS | | $19.79 | $19.51 | 1 | |
| 39 | MSP09802T | ----NUT (#6-32) | MSP09802 | SS | | $2.19 | $2.16 | 2 | |
| 40 | MLP02601T | ----BUTTON Micro Switch | MLP02601 | SS/NLA | | $4.27 | $4.25 | 1 | |
| 41 | MLP10103T | ----PEDAL Foot | MLP10103 | SS/NLA | | $26.59 | $26.37 | 1 | |
| 42 | MHF15001T | ----SWITCH ASSEMBLY Rotary | MHF15001 | SS | | $25.88 | $25.42 | 1 | |
| 43 | MKP17101T | ----LOCKWASHER (.375) | MKP17101 | SS/NLA | | $0.41 | $0.41 | 1 | |
| 44 | MLP04601T | ----RING Retaining | MLP04601 | SS | | $2.19 | $2.21 | 1 | |
| 45 | MAK17102T | ----WASHER Nylon | MAK17102 | SS | | $2.19 | $2.16 | 1 | |
| 46 | MLP08207T | ----KNOB ASSEMBLY | MLP08207 | SS | | $5.37 | $5.27 | 1 | |
| 47 | 8M3003621 | ----SWITCH ASSEMBLY Toggle | MFP15303 | SS/NLA | | $9.89 | $9.75 | 1 | |
| 48 | MKP12301T | ----PLATE Control Cable | MKP12301 | SS/NLA | | $1.71 | $1.69 | 1 | |
| 49 | MEK13501 | ----SCREW (#6 Self Tap) | NLA | | $0.58 | $0.58 | 1 | ||
| 50 | MXF13501T | ----SCREW (#6 x .500) | MAF13501 | SS/NLA | | $0.91 | $0.90 | 1 | |
| 51 | MXF13501T | ----SCREW (#6 x .500) | MAF13501 | SS/NLA | | $0.91 | $0.90 | 2 | |
| 52 | MKP02301T | ----PAD Foot Pedal | MKP02301 | SS/NLA | | $1.63 | $1.61 | 2 | |
| 53 | M899464T | ----WEIGHT PLATE ASSEMBLY | MLP312315 | SS/NLA | | $15.74 | $15.49 | 1 | |
| 54 | MXF13501T | ----SCREW (#6 x .500) | MAF13501 | SS/NLA | | $0.91 | $0.90 | 1 | |
| 55 | MKP03601T | ----P CLAMP (.250) Cable | MKP03601 | SS/NLA | | $0.58 | $0.58 | 1 | |
| 56 | MIR13301T | ----SCREW (#6 x .375) | MIR13301 | SS/NLA | | $0.91 | $0.90 | 2 | |
| 57 | MKP03602T | ----PLATE Battery Cable | MKP03602 | SS/NLA | | $1.21 | $1.19 | 1 | |
| 58 | MLP00301T | ----BASE Foot Pedal | MLP00301 | SS/NLA | | $28.08 | $27.70 | 1 | |
| 59 | MKP02101T | ----BUSHING Pivot Shaft | MKP02101 | SS | | $1.99 | $1.95 | 2 | |
| 60 | MAT08001T | ----SLEEVE Insulating | MAT08001 | SS/NLA | | $0.99 | $0.98 | 1 | |
| 61 | MXF13501T | ----SCREW (#6 x .500) | MAF13501 | SS/NLA | | $0.91 | $0.90 | 2 | |
| 62 | MLP12303T | ----PLATE Retainer | MLP12303 | SS/NLA | | $1.13 | $1.12 | 1 | |
| 63 | MRT13303T | ----SCREW (#10 x .500) | MGR13301 | SS/NLA | | $1.82 | $1.79 | 1 | |
| 64 | MFT16003T | ----TERMINAL 4 Prong | MFT16003 | SS/NLA | | $1.16 | $1.15 | 1 | |
| 65 | MFP04601T | ----E RING | MFP04601 | SS | | $6.59 | $6.55 | 1 | |
| 66 | M899388T | ----PIN Cable Pivot | MAP10501C | SS | | $4.99 | $4.96 | 1 | |
| 67 | MLP09101T | ----PIVOT Cable | MLP09101 | SS | | $6.99 | $6.92 | 1 | |
| 68 | MBK04601T | ----E RING | MBK04601 | SS | | $1.09 | $1.08 | 2 | |
| 69 | MLP10201T | ----PIN Foot Pedal Rocker | MLP10201 | SS | | $3.99 | $3.97 | 1 | |
| 70 | MLP05703 | ----DECAL | NLA | | $0.66 | $0.65 | 1 | ||
| 71 | MM900625 | TUBING (25.00 Feet Bulk) Cable Cover - Cut As Required | ACT | $20.89 | $20.65 | AR | |||
| 72 | 8M4501607 | MOUNT ASSEMBLY Complete Model 15 - 42 Inch | MST91542L | SS/NLA | | $269.00 | $256.76 | 1 | |
| 72 | 8M4501607 | MOUNT ASSEMBLY Complete Model 16 Lil Gator | MST91642A | SS/NLA | | $269.00 | $256.76 | 1 | |
| 72 | MST9235BF | MOUNT ASSEMBLY Complete Model 23 | MST923BF | SS/NLA | | $236.74 | $233.00 | 1 |
