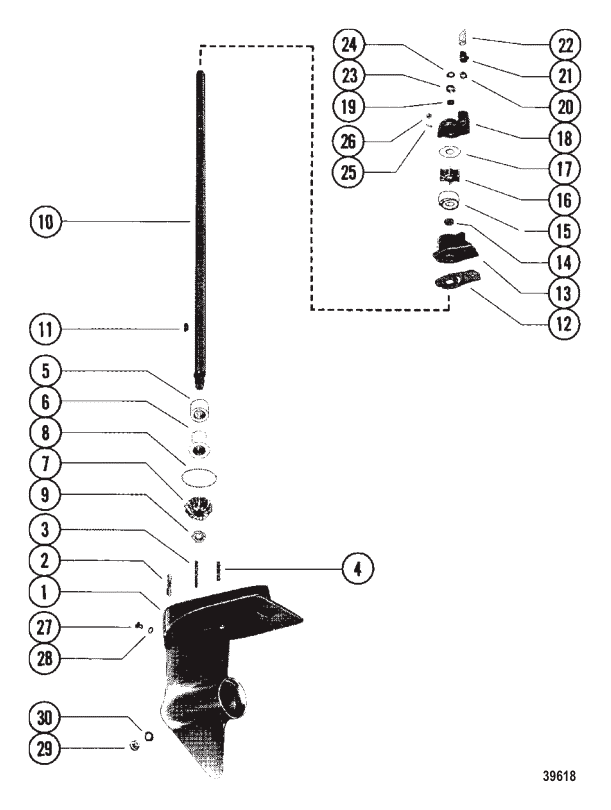

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 7811A18 | GEAR HOUSING ASSEMBLY COMPLETE | 7726A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 7811A19 | GEAR HOUSING ASSEMBLY COMPLETE | 7726A2 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 7811A18 | GEAR HOUSING ASSEMBLY COMPLETE | 7811A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 7811A19 | GEAR HOUSING ASSEMBLY COMPLETE | 7811A2 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 7811A18 | GEAR HOUSING ASSEMBLY COMPLETE | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 7811A19 | GEAR HOUSING ASSEMBLY COMPLETE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 7811A9 | ----GEAR HOUSING ASSEMBLY BASIC | 7726A5 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 7811A9 | ----GEAR HOUSING ASSEMBLY BASIC | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 68927 | --------STUD GEAR HOUSING (2 1/8") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 75321 | --------STUD GEAR HOUSING (7 1/4") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 68928 | --------STUD WATER PUMP (2 1/8") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 70741 | --------STUD WATER PUMP (1 1/8") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 77428 | --------BEARING GEAR HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 90770 | --------BUSHING FLANGED-GEAR HOUSING | 77429 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 6 | 90770 | --------BUSHING FLANGED-GEAR HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 90795A1 | ----GEAR Pinion | 77427 | NLA |
|
$0.00 | $0.00 | 1 | |
| 7 | 90796 | ----GEAR Pinion | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 21148A1 | ----SHIM SET (.002-3-5-10) | NLA |
|
$0.00 | $0.00 | AR | ||
| 9 | 20922 | ----NUT PINION GEAR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 87617 | ----DRIVESHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 87663 | ----DRIVESHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 8M0032835 | ----KEY IMPELLER DRIVE | 56655 | SS |
|
$6.00 | $5.86 | 1 | |
| 12 | 68939 | ----GASKET WATER PUMP-LOWER | NLA |
|
$3.81 | $3.71 | 1 | ||
| 13 | 90844A1 | ----HOUSING ASSEMBLY Water Pump | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 897153 | --------SEAL Oil WATER PUMP | 77066 | SS |
|
$17.10 | $16.68 | 1 | |
| 15 | 70977T | --------INSERT WATER PUMP | 70977 | SS |
|
$12.20 | $11.90 | 1 | |
| 16 | 89980 | ----IMPELLER | ACT |
|
$30.99 | $30.35 | 1 | ||
| 17 | 68955 | ----FACE PLATE WATER PUMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 95965A2 | ----COVER ASSEMBLY Water Pump | 68984A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 18 | 95965A2 | ----COVER ASSEMBLY Water Pump | 90846A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 19 | 30913 | --------SEAL Oil WATER PUMP COVER | ACT |
|
$20.17 | $19.81 | 1 | ||
| 20 | 13127 | --------BEARING WATER TUBE SEAL | 86214 | SS |
|
$5.41 | $5.27 | 1 | |
| 21 | 36558 | --------SEAL WATER TUBE | ACT |
|
$5.50 | $5.37 | 1 | ||
| 22 | 31792T | ----SLEEVE WATER TUBE GUIDE | 31792 | SS |
|
$17.70 | $17.26 | 1 | |
| 23 | 30526 | ----RING RUBBER-DRIVESHAFT | ACT |
|
$3.30 | $3.22 | 1 | ||
| 24 | 62704 | ----O-RING DRIVESHAFT | 85148 | SS |
|
$1.40 | $1.37 | 1 | |
| 25 | 30164 | ----WASHER (.192 x .375 x .03 WATER PUMP STUDS | ACT | $2.50 | $2.44 | 3 | |||
| 26 | 859124 | ----NUT (#10-32) Stainless St WATER PUMP STUDS | 45812 | SS |
|
$18.67 | $18.33 | 3 | |
| 27 | 28653 | ----SCREW (#10-32 x 0.25) VENT-GEAR HOUSING | ACT | $4.00 | $3.91 | 1 | |||
| 28 | 19643 | ----WASHER VENT SCREW | 20262 | SS |
|
$1.50 | $1.47 | 1 | |
| 29 | 79953Q04 | ----SCREW (.375-16 x .250) GREASE FILLER | 79953 | SS |
|
$7.49 | $7.31 | 1 | |
| 30 | 191833 | ----WASHER GREASE FILLER SCREW | 20260 | SS/NLA |
|
$1.45 | $1.42 | 1 | |
| - | 90844A2 | REPAIR KIT Water Pump | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 71140A1 | SEAL KIT Gear Housing | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 98540A83 | GASKET SET | 88139A79 | SS/NLA |
|
$0.00 | $0.00 | 1 |
