| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

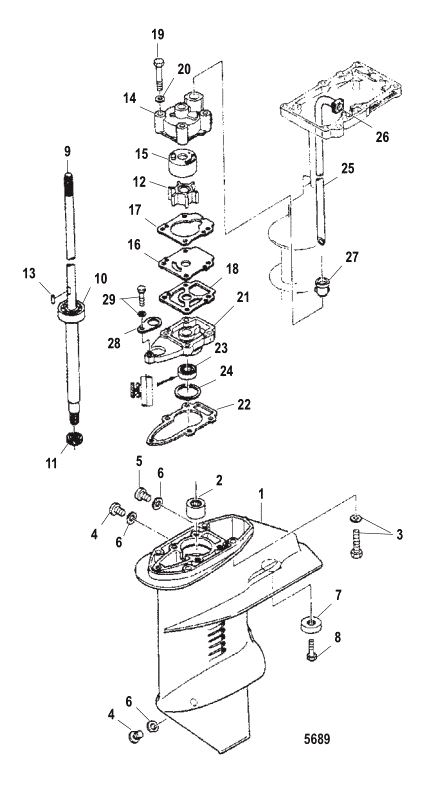

| - | 8M0172380 | GEAR HOUSING ASSEMBLY Complete | 803729A5 | SS |
|
$1,421.45 | $1,303.06 | 1 | |
| - | 8M0070902 | GEAR HOUSING ASSEMBLY Complete | 803729A6 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 803729A14 | ----GEAR HOUSING ASSEMBLY Basic | 803729A4 | SS |
|
$457.57 | $437.37 | 1 | |
| 2 | 8036753 | --------BEARING Needle | ACT | $35.42 | $34.78 | 1 | |||
| 3 | 8M0147119 | ----BOLT | 82304230 | SS |
|
$1.90 | $1.86 | 4 | |
| 4 | 953683 | ----PLUG | ACT | $0.00 | $0.00 | 2 | |||
| 5 | 953683 | ----PLUG | ACT | $0.00 | $0.00 | 1 | |||
| 6 | 8M0082880 | ----GASKET | 95220 | REP |
|
$6.09 | $5.95 | 3 | |
| 7 | 823913Q | ----ANODE | 823913 | SS |
|
$20.49 | $20.11 | 1 | |
| 8 | 16832 | ----BOLT (M6 x 16) | ACT | $4.50 | $4.39 | 1 | |||
| 9 | 8M0065069 | ----DRIVESHAFT | 8037382 | SS |
|
$197.08 | $185.60 | 1 | |
| 9 | 803738T16 | ----DRIVESHAFT | 8037383 | SS |
|
$118.33 | $111.44 | 1 | |
| 10 | 161326 | --------BEARING Ball | ACT | $24.83 | $24.39 | 1 | |||
| 11 | 8M0156176 | ----GEAR Pinion | 8037401 | SS |
|
$125.08 | $117.80 | 1 | |
| 12 | 8M0214945 | ----IMPELLER | 8037481 | SS |
|
$19.89 | $19.49 | 1 | |
| 13 | 9521811 | ----PIN Roll - Stainless Steel | ACT |
|
$4.10 | $4.00 | 1 | ||
| 14 | 803750A02 | ----HOUSING Water Pump - Upper | 8037502 | SS |
|
$69.08 | $66.43 | 1 | |
| 15 | 8037511 | ----LINER Stainless Steel | ACT |
|
$20.75 | $20.38 | 1 | ||
| 16 | 8037531 | ----GUIDE PLATE Stainless Steel | ACT |
|
$11.80 | $11.51 | 1 | ||
| 17 | 8M0072137 | ----GASKET | 161585 | SS |
|
$6.20 | $6.05 | 1 | |
| 18 | 8M0072138 | ----GASKET | 161586 | SS |
|
$6.80 | $6.64 | 1 | |
| 19 | 879194305 | ----BOLT Stainless Steel | 161268 | SS |
|
$10.10 | $9.85 | 4 | |
| 20 | 16826 | ----WASHER Stainless Steel | ACT |
|
$3.30 | $3.22 | 4 | ||
| 21 | 803750A01 | ----HOUSING Water Pump - Lower | 8037503 | SS |
|
$37.99 | $37.32 | 1 | |
| 22 | 8M0072139 | ----GASKET | 161587 | SS |
|
$18.50 | $18.04 | 1 | |
| 23 | 95348 | ----SEAL Oil | ACT |
|
$16.00 | $15.61 | 1 | ||
| 24 | 8537955 | ----SHIM | ACT | $7.50 | $7.32 | AR | |||
| 25 | 8037552 | ----PIPE Water | ACT |
|
$26.92 | $26.43 | 1 | ||
| 25 | 8037553 | ----PIPE Water | ACT |
|
$17.42 | $17.11 | 1 | ||
| 26 | 8048991 | ----GROMMET | ACT | $2.39 | $2.33 | 1 | |||
| 27 | 804903 | ----GROMMET | ACT | $6.00 | $5.86 | 1 | |||
| 28 | 16165 | ----RETAINER | ACT | $7.00 | $6.83 | 1 | |||
| 29 | 823042 | ----BOLT | ACT | $3.80 | $3.71 | 1 | |||
| - | 803750A03 | REPAIR KIT Water Pump | 853792A5 | REP |
|
$140.49 | $132.16 | 1 | |
| - | 8M0130156 | GASKET SET Lower Unit | 804908A00 | SS |
|
$111.67 | $105.16 | 1 |
