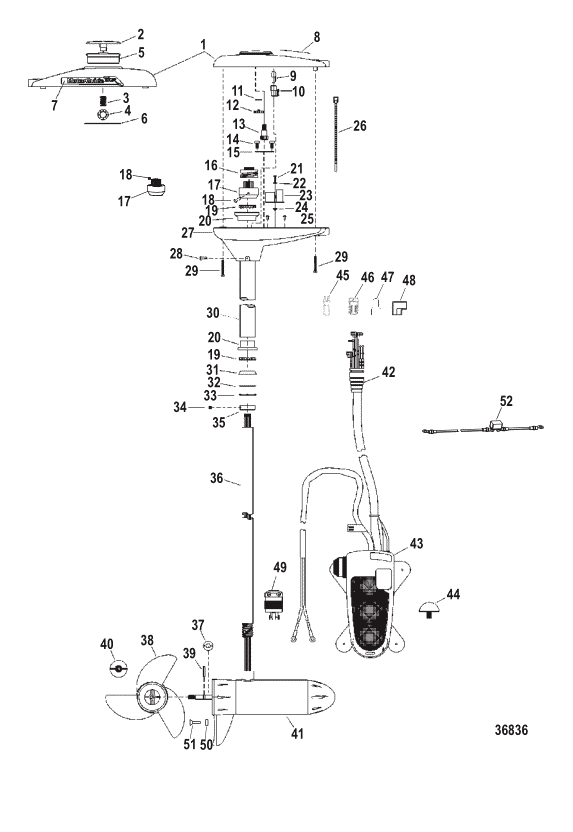

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 MM5911 COVER ASSY-TOP MAF053262 SS $46.99 $46.61 1
1 MM5911 COVER ASSY-TOP ACT $46.99 $46.61 1
2 MM5922 ----INDICATOR KIT NLA $0.00 $0.00 1
3 MAF01401T --------SPRING MAF01401 SS/NLA $0.00 $0.00 1
4 MAF04601T --------CLIP MAF04601 SS/NLA $0.00 $0.00 1
5 MAF09501T ----LENS MAF09501 SS/NLA $0.00 $0.00 1
6 MAF04602T ----RETAINER MAF04602 SS $0.00 $0.00 1
7 MAF05704T ----DECAL MAF19013 SS/NLA $0.00 $0.00 1
7 MAF05704T ----DECAL MAF05704 SS/NLA $0.00 $0.00 1
8 MAF19014 DECAL MotorGuide TR-FB NLA $0.00 $0.00 1
8 MAF19024 DECAL MotorGuide Tour TR-109 36 Volt NLA $0.00 $0.00 1
8 MAF19033T DECAL MotorGuide Digital Tour 36 Volt MAF19033 SS/NLA $0.00 $0.00 1
9 MAF09301T LAMP (36V) MAF09301 SS/NLA $0.00 $0.00 1
9 MAF09303T LAMP (12V) MAF09303 SS $0.00 $0.00 1
10 MAF09401T HOLDER ASSY-LAMP MAF394012 SS $0.00 $0.00 1
11 MAK04601T E RING MAK04601 SS $1.09 $1.07 1
12 MAF06903T IDLER GEAR Nylon MAF06903 SS/NLA $0.00 $0.00 1
13 MAF06902T GEAR-INDICAT Nylon MAF06902 SS $4.99 $4.93 1
14 MBK13602T SCREW MBK13602 SS/NLA $0.00 $0.00 2
15 M899414T BRACKET ASSY MAF315512 SS $0.00 $0.00 1
16 879330T60 DRUM CONTROL MFM06701 SS/NLA $0.00 $0.00 1
16 879330T60 DRUM CONTROL NLA $0.00 $0.00 1
17 MFM06402T COUPLING MFM06402 SS/NLA $0.00 $0.00 1
17 879330T59 COUPLING ACT $19.99 $19.78 1
18 MLF11104T RIVET MLF11103 SS $2.19 $2.17 2
18 M899381T SET SCREW MAF14201B SS $0.48 $0.48 1
19 MFM00501T BEARING-BALL Open Style - 15 Balls MFM00501 SS $2.72 $2.69 2
19 MFM00501T BEARING-BALL Open Style - 15 Balls MFM00501 SS $2.72 $2.69 1
19 MFM00502T BEARING-BALL Sealed Style - 41 Balls MFM00502 SS/NLA $7.24 $7.20 1
20 8M0094911 RETAINER CUP MFM00701 SS/NLA $0.00 $0.00 2
20 879330T58 BEARING CUP MFM00702 SS/NLA $0.00 $0.00 1
21 MFM13501 SCREW NLA $0.00 $0.00 1
22 MFM09801 WASHER NLA $0.00 $0.00 1
23 MAF15722 REF SMG 04-02 NLA $0.00 $0.00 1
24 MFM17102 WASHER NLA $0.00 $0.00 1
25 MFM02301 STEM BUMPER NLA $0.00 $0.00 4
26 816311T CABLE TIE MAF03001 SS $0.60 $0.59 AR
26 MAF03002T TIE STRAP MAF03002 SS $3.29 $3.25 AR
27 MAF004139 COVER-BOTTOM MAF00411 SS $0.00 $0.00 1
27 MAF004139 COVER KIT-BOTTOM Includes Two Set Screws ACT $0.00 $0.00 1
28 MLF11104T RIVET MLF11104 SS $2.19 $2.17 3
28 M899381T SET SCREW MAF14201B SS $0.48 $0.48 2
29 MAF14102T SCREW MAF14102 SS/NLA $0.00 $0.00 3
30 MBF16506T TUBE-OUTER-20INCH MAF16506 SS/NLA $0.00 $0.00 1
30 MBF16510T TUBE-OUTER-30INCH MAF165101 SS $67.09 $65.43 1
31 MAF00603T RACE-BEARING MAF00603 SS/NLA $0.00 $0.00 1
32 MAF06301T O RING MAF06301 SS/NLA $0.00 $0.00 1
33 MAF17101T WAVE WASHER MAF17101 SS/NLA $0.00 $0.00 2
34 M899381T SET SCREW MAF14201B SS $0.48 $0.48 2
35 MSS00602S ORD MSS00602S MXF00602 NLA $0.00 $0.00 1
35 MSS00602S CONE/BEARING KIT NLA $0.00 $0.00 1
35 MSS00602T CONE-BEARING MSS00602 SS/NLA $0.00 $0.00 1
36 MFR04934T COLUMN-36 INCH NLA $0.00 $0.00 1
36 MAF04920T COLUMN-36 INCH NLA $0.00 $0.00 1
36 MFM04919T COLUMN-45 INCH MFM04915 SS/NLA $0.00 $0.00 1
36 MAF04922T COLUMN-45 INCH ACT $68.99 $67.15 1
36 MFR04931T COLUMN-50 INCH MFR04913 SS/NLA $0.00 $0.00 1
36 MAF04923T COLUMN-50 INCH NLA $0.00 $0.00 1
36 MFR04932T COLUMN-60 INCH MFR04925 SS/NLA $0.00 $0.00 1
36 MAF04924T COLUMN-60 INCH NLA $0.00 $0.00 1
37 MAR17501T WASHER MAR17501 SS $0.00 $0.00 1
38 MGA089G PROP KIT MAF174346 SS/NLA $49.99 $49.30 1
38 MGA089G PROP KT-3.5 TAPER MAF174555 SS/NLA $49.99 $49.30 1
38 MGA089G PROP KT-3.5 TAPER MAF174755 SS/NLA $49.99 $49.30 1
38 MAF12415T ----PROP-3B-MACHETE With Prop Kit 48-MAF174346 MAF12412 SS $46.19 $45.34 1
38 MAF12415T ----PROP-3B-3.5 TAPER With Prop kit 48-MAF174555 And MAF174755 MAF12415 SS $46.19 $45.34 1
39 MBR10202T ----PIN-LG PROP MBR10202 SS $3.02 $2.95 1
40 MAR09902T ----PROP NUT MAR09901 SS $3.32 $3.29 1
40 MAR09902T ----PROP NUT MAR09902 SS $3.32 $3.29 1
41 MXC60202S ORD MXC60202S MXF397022 NLA $0.00 $0.00 1
41 897345T79 LOWER UNIT ASSY MXC397022 SS/NLA $0.00 $0.00 1
42 MAP07104T GROMMET MAP07101 SS/NLA $2.41 $2.38 1
43 MXC30054T FOOT PEDAL ASSY (63.00 Inches) Revised Micro Switch MXC300442 SS/NLA $0.00 $0.00 1
43 MXC30054T FOOT PEDAL ASSY (63.00 Inches) Added On/Off Switch - Marked MXC300342 MXC30034T SS/NLA $0.00 $0.00 1
43 MXC30054T FOOT PEDAL ASSY (63.00 Inches) New Cables - Marked MXC300542 NLA $0.00 $0.00 1
43 MXC30055T ORD MXC30055T (69.00 Inches) MAP300332 NLA $0.00 $0.00 1
43 MXC30046T FOOT PEDAL ASSY (69.00 Inches) MXC300382 SS/NLA $0.00 $0.00 1
43 MXC30046T FOOT PEDAL ASSY (69.00 Inches) Revised Micro Switch MXC300362 SS/NLA $0.00 $0.00 1
43 MXC30046T FOOT PEDAL ASSY (69.00 Inches) Added On/Off Switch - Marked MXC300462 NLA $0.00 $0.00 1
44 MPM02301T BUMPER Foot Pedal MPM02301 SS/NLA $0.00 $0.00 4
45 MKP16401T TERMINAL MKP16401 SS/NLA $0.00 $0.00 1
46 MBR16102T TERMINAL MBR16102 SS $0.99 $0.98 1
47 MBF02901T CONNECTOR MBF02901 SS/NLA $0.00 $0.00 5
47 MBF02901T CONNECTOR MBF02901 SS/NLA $0.00 $0.00 2
47 MBF02902T CONNECTOR MBF02902 SS/NLA $0.00 $0.00 4
48 MAT08001T SLEEVE MAT08001 SS/NLA $0.00 $0.00 1
49 MFP02901T PLUG MFP02901 SS/NLA $0.00 $0.00 1
50 8M0105256 ANODE MAR00202 SS $13.22 $13.07 1
50 8M0105256 ANODE-ALUM M879341T REP $13.22 $13.07 1
51 MDK13301T SCREW MDK13301 SS/NLA $0.00 $0.00 1
52 MM309922T JUMPER/50 AMP ASY MM309922 SS $27.99 $27.49 1
- 8M4002190 MOUNT ASSY Model 21 MST921BF SS/NLA $0.00 $0.00 1
- 8M4002193 MOUNT ASSY Model 24 MST924BF SS $0.00 $0.00 1
