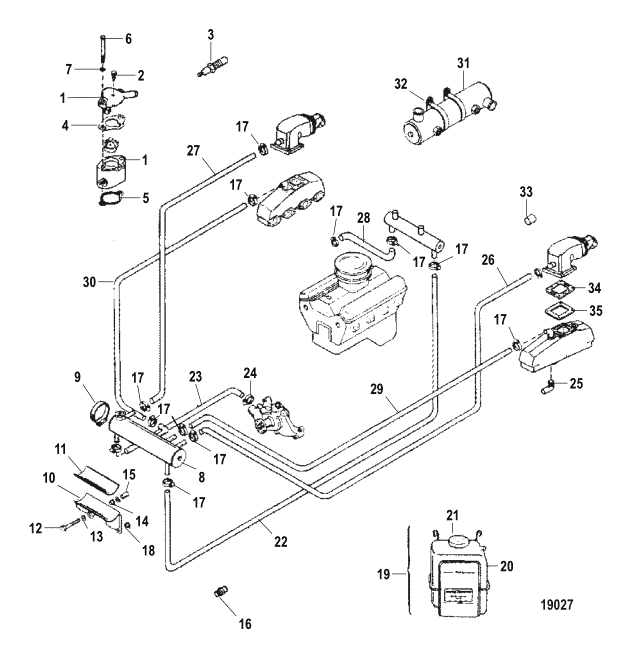

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 18390A13 | CLOSED COOLING SYSTEM | 18390A12 | SS/NLA |  | $2,096.96 | $1,865.13 | 1 | |
| - | 18390A13 | CLOSED COOLING SYSTEM | NLA | | $2,096.96 | $1,865.13 | 1 | ||
| 1 | 55131A5 | ----HOUSING ASSEMBLY Thermostat | ACT | | $379.57 | $362.82 | 1 | ||
| - | 97428T2 | --------COVER Thermostat | NLA | | $53.08 | $51.08 | 1 | ||
| 2 | 818390 | --------DRAIN COCK | ACT | $19.58 | $19.23 | 1 | |||
| 3 | 86080 | --------SWITCH Temperature | ACT | $116.92 | $110.11 | 1 | |||
| 4 | 488181 | --------GASKET | ACT | | $2.89 | $2.82 | 1 | ||
| 5 | 530451 | --------GASKET | ACT | | $5.50 | $5.37 | 1 | ||
| 6 | 48115 | --------SCREW (.375-16 x 3.50) | NLA | | $2.11 | $2.06 | 2 | ||
| 7 | 31263 | --------WASHER | ACT | $1.00 | $0.98 | 2 | |||
| 8 | 805136T | ----RESERVOIR | NLA | | $964.71 | $907.61 | 1 | ||
| - | 36382 | --------FITTING (.250-18 x .62) Brass | ACT | $5.30 | $5.17 | 1 | |||
| - | 8M0036623 | --------COVER Heat Exchanger End | 814875 | SS | | $100.75 | $94.88 | 2 | |
| - | 8M0036987 | --------GASKET End Cover | 814876 | SS | | $21.08 | $20.71 | 2 | |
| - | 94247 | --------BOLT | 814877 | REP | | $1.40 | $1.37 | 2 | |
| - | 8M0039163 | --------O-RING Special | 814878 | SS | | $8.50 | $8.29 | 2 | |
| - | 808108 | --------CAP | 814879 | SS | | $31.33 | $30.77 | 1 | |
| 9 | 815504372 | ----CLAMP Worm Gear | ACT | $15.90 | $15.51 | AR | |||
| 10 | 805034A1 | ----BRACKET ASSEMBLY Mounting | NLA | | $627.33 | $578.16 | 1 | ||
| 11 | 18431 | --------PAD | ACT | $33.67 | $33.06 | 2 | |||
| 12 | 57357 | ----SCREW (.437-13 x 2.250) | ACT | $3.50 | $3.42 | 1 | |||
| 13 | 31263 | ----WASHER | ACT | $1.00 | $0.98 | 2 | |||
| 14 | 41024 | ----MOUNT | ACT | $44.58 | $43.78 | 1 | |||
| 15 | 74756 | ----SPACER | NLA | | $12.17 | $11.86 | 1 | ||
| 16 | 866725 | ----FITTING Straight | 45084 | SS | | $17.60 | $17.17 | 2 | |
| 17 | 815504220 | ----CLAMP Worm Gear | ACT | $7.30 | $7.12 | AR | |||
| 18 | 41024 | ----MOUNT | ACT | $44.58 | $43.78 | 1 | |||
| 19 | 71587A10 | ----RECOVERY KIT Coolant (Component parts can be purchased locally.) | ACT | | $93.50 | $89.93 | 1 | ||
| 20 | 71587A11 | --------BOTTLE Plastic | ACT | | $71.83 | $69.09 | 1 | ||
| 21 | 72058 | ------------CAP | ACT | $10.90 | $10.63 | 1 | |||
| 22 | 805055 | ----HOSE | NLA | | $74.58 | $70.86 | 1 | ||
| 22 | 805175 | ----HOSE | NLA | | $39.74 | $38.77 | 1 | ||
| 23 | 8M0158499 | ----HOSE | 805138 | SS | | $56.00 | $53.87 | 1 | |
| 24 | 815504232 | ----CLAMP Worm Gear (2.50 Diameter) | ACT | $8.60 | $8.39 | AR | |||
| 25 | 36305T | ----ELBOW (90 Degrees) | 36305 | SS | | $37.83 | $37.15 | 2 | |
| 26 | 919542 | ----HOSE | NLA | | $26.91 | $26.23 | 1 | ||
| 27 | 919542 | ----HOSE | NLA | | $26.91 | $26.23 | 1 | ||
| 28 | 814860 | ----HOSE (Oil Cooler to Oil Cooler) | NLA | | $31.77 | $30.99 | 1 | ||
| 29 | 897190 | ----HOSE (Reservoir to Exhaust Manifold) | 805105 | SS | | $54.33 | $52.26 | 1 | |
| 29 | 805302 | ----HOSE (Reservoir to Exhaust Manifold) | NLA | | $23.12 | $22.55 | 1 | ||
| 30 | 897190 | ----HOSE (Reservoir to Exhaust Manifold) | 805105 | SS | | $54.33 | $52.26 | 1 | |
| 30 | 805303 | ----HOSE (Reservoir to Exhaust Manifold) | NLA | | $36.79 | $35.89 | 1 | ||
| 30 | 805022 | ----HOSE (Reservoir to Exhaust Manifold) | NLA | | $45.28 | $44.15 | 1 | ||
| 31 | 805174T | ----COOLER Oil | NLA | | $636.51 | $586.63 | 1 | ||
| 32 | 814858 | ----CLIP | NLA | | $6.80 | $6.64 | 2 | ||
| 33 | 805727001 | ----CAP Rubber | 805727 | SS | | $4.60 | $4.49 | 2 | |
| 34 | 863726 | ----GASKET | 818832 | SS | | $19.29 | $18.82 | 4 | |
| 35 | 8637251 | ----GASKET | 41811 | SS | | $18.89 | $18.43 | 2 | |
| - | 805563 | ----CONNECTOR (.500 Inch NPTF To .500 Inch Inverted Flare) | ACT | $17.20 | $16.78 | 2 | |||
| - | 44443A3 | INSTALLATION KIT | NLA | | $170.68 | $160.75 | 1 |
