| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

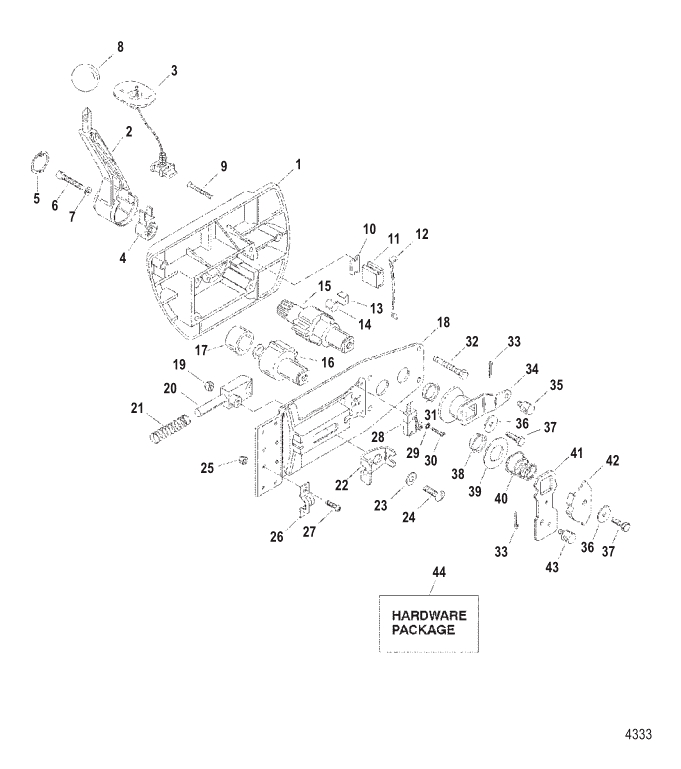

| 1 | 802755 | REMOTE CONTROL ASSEMBLY Complete | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 803647 | ----LEVER ASSEMBLY Hand | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | NSS | ----------------NOT SOLD SEPARATE Shift Lever Assembly |
|
$0.00 | $0.00 | 1 | |||
| 4 | NSS | ----------------NOT SOLD SEPARATE Interlock Insert |
|
$0.00 | $0.00 | 1 | |||
| 5 | 803648 | ----INSERT Hub | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 803649 | ----SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 803650 | ----WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | F17081 | ----BALL Black | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 803651 | ----SCREW (#10 x 1.250) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 9 | 803652 | ----SCREW (#10 x 1.500) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | NSS | --------NOT SOLD SEPARATE Stop Insert |
|
$0.00 | $0.00 | 1 | |||
| 11 | NSS | --------NOT SOLD SEPARATE Retainer |
|
$0.00 | $0.00 | 1 | |||
| 12 | NSS | --------NOT SOLD SEPARATE Detent Spring |
|
$0.00 | $0.00 | 1 | |||
| 13 | NSS | --------NOT SOLD SEPARATE Detent Shoe |
|
$0.00 | $0.00 | 1 | |||
| 14 | NSS | --------NOT SOLD SEPARATE Detent Roller |
|
$0.00 | $0.00 | 1 | |||
| 15 | NSS | --------NOT SOLD SEPARATE Throttle Shaft |
|
$0.00 | $0.00 | 1 | |||
| 16 | NSS | --------NOT SOLD SEPARATE Clutch Gear |
|
$0.00 | $0.00 | 1 | |||
| 17 | NSS | --------NOT SOLD SEPARATE Gear Bushing |
|
$0.00 | $0.00 | 1 | |||
| 18 | 803653 | ----HANGER ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 8267119 | --------NUT (.250-28) | ACT | $2.60 | $2.54 | 1 | |||
| 20 | 820688 | --------BLOCK Dwell | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 820689 | --------SPRING Dwell Block | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 820687 | --------SWIVEL BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 820686 | --------WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 820685 | --------SCREW (.250-28 x .875) | NLA |
|
$4.10 | $4.01 | 1 | ||
| 25 | 852097 | ----NUT (#10-24) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 26 | 852095 | ----CLAMP Cable | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 852094 | ----SCREW (#10-24 x .500) | ACT |
|
$2.11 | $2.07 | 2 | ||
| 28 | 820693 | ----SWITCH ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 820694 | ----LOCKWASHER Internal (#4) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 30 | 803654 | ----SCREW (#4 x .625) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 31 | 803655 | ----BUSHING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32 | 803656 | ----SCREW | NLA |
|
$0.00 | $0.00 | 4 | ||
| 33 | F17149 | ----COTTER PIN | NLA |
|
$0.00 | $0.00 | 2 | ||
| 34 | 820692 | ----ARM Throttle Output | NLA |
|
$0.00 | $0.00 | 1 | ||
| 35 | F17016 | ----PIVOT Cable Terminal - Brass | NLA |
|
$0.00 | $0.00 | 1 | ||
| 36 | F17036 | ----WASHER | NLA |
|
$0.00 | $0.00 | 2 | ||
| 37 | 852092 | ----SCREW (.250-28 x .500) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 38 | 803655 | ----BUSHING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 39 | 803657 | ----WASHER Thrust | NLA |
|
$0.00 | $0.00 | 1 | ||
| 40 | 803658 | ----SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 41 | 820690 | ----ARM Shift | NLA |
|
$0.00 | $0.00 | 1 | ||
| 42 | 820691 | ----CAM Switch Actuation | NLA |
|
$0.00 | $0.00 | 1 | ||
| 43 | 852096 | ----PIVOT Cable Terminal - Stainless Steel | NLA |
|
$0.00 | $0.00 | 1 | ||
| 44 | 803659 | ----HARDWARE PACKAGE With Template | NLA |
|
$0.00 | $0.00 | 1 |
