Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

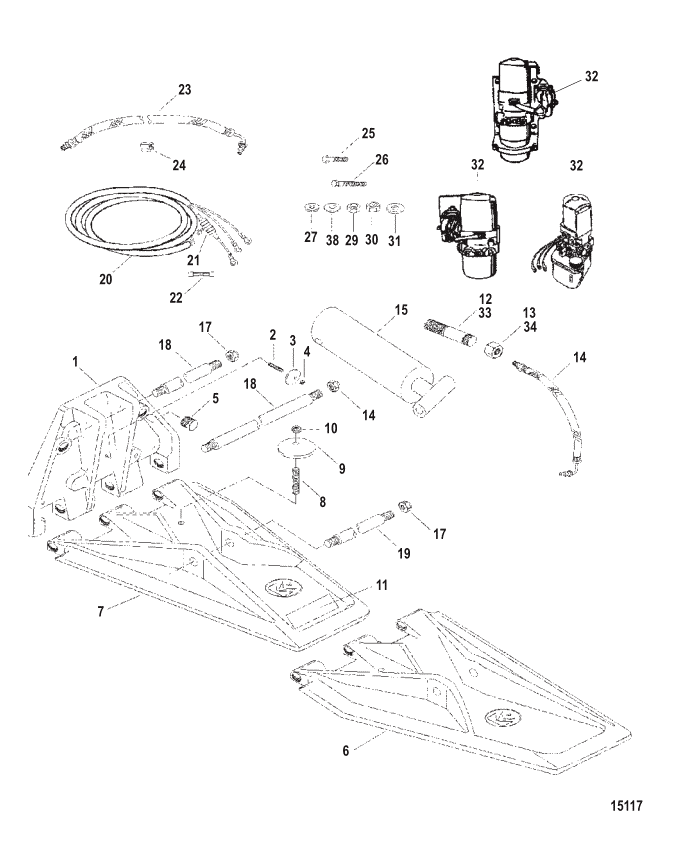

- 843754A1 K PLANE ASSY NLA $0.00 $0.00 1
- 846191A1 ----PLATE ASSY-STBD NLA $0.00 $0.00 1
- 846193A1 ----PLATE ASSY-PORT NLA $0.00 $0.00 1
1 847089T2 --------PLATE ASSY-STBD 847089A2 SS/NLA $0.00 $0.00 1
1 847090T2 --------PLATE ASSY-PORT 847090A2 SS/NLA $0.00 $0.00 1
2 8M0034461 ------------STUD 21085 SS $21.09 $20.71 1
3 847266 ------------ANODE ACT $6.22 $6.15 1
4 8267096 ------------NUT 890371 SS $3.69 $3.59 1
5 32804 ------------PLUG Pipe ACT $17.09 $16.68 2
6 847086T1 --------PLATE ASSY-L-STBD 847086A1 SS $581.79 $547.19 1
7 847087T1 --------PLATE ASSY-L-PORT 847087A1 SS $581.63 $547.04 1
8 8M0034461 ------------STUD 21085 SS $21.09 $20.71 1
9 847332 ------------ANODE ACT $16.62 $16.39 1
10 8267096 ------------NUT 890371 SS $3.69 $3.59 1
11 845461 ------------DECAL ACT $5.41 $5.33 1
12 847018 --------STUD Hydraulic Hose ACT $168.04 $160.59 2
13 844093 --------NUT ACT $1.38 $1.36 2
14 845975 --------HYD HOSE-9.375 IN ACT $54.34 $52.75 2
15 844222A1 --------CYL ASSY-TRIM NLA $0.00 $0.00 1
16 847196 --------PIN-UPPER ACT $63.23 $61.38 1
17 8M0143423 --------NUT 35053 SS $9.49 $9.27 6
18 847195 --------PIN-HINGE ACT $85.65 $83.14 1
19 847197 --------PIN-LOWER ACT $62.50 $60.67 1
20 846160A2 HARNESS ASSY 846160A1 SS $110.25 $105.53 2
21 846158 ----FUSEHOLDER ASSY NLA $0.00 $0.00 1
22 846159 ----FUSE-10 AMP ACT $1.53 $1.51 1
23 843556A1 HOSE KIT-30 INCH ACT $307.77 $294.09 OPT
23 843675A1 HOSE KIT-60 INCH ACT $388.39 $371.13 OPT
23 845976 ----HOSE ASSY-30 IN ACT $76.97 $74.72 4
23 845977 ----HYD HOSE-60 IN. ACT $119.39 $114.09 4
23 846051 HOSE-HYD-96 IN ACT $156.43 $149.49 OPT
23 848789 HYD HOSE-115 IN. ACT $197.49 $188.72 OPT
24 38402 ----FITTING ACT $10.29 $10.05 4
25 843373 SCREW Mounting ACT $4.49 $4.43 4
26 843575 SCREW Mounting ACT $8.69 $8.49 4
27 841388 WASHER Mounting ACT $0.90 $0.88 8
28 845998 WASHER Mounting ACT $3.79 $3.69 8
29 82670912 NUT Mounting 68411 SS $6.79 $6.64 8
30 845997 NUT Mounting ACT $5.09 $4.98 8
31 844850 WASHER Mounting ACT $1.24 $1.23 4
32 8M0083288 PUMP ASSY-TRIM 846183A1 SS $1,351.64 $1,238.72 2
32 8M0083288 PUMP ASSY-TRIM Plastic 846183A2 SS $1,351.64 $1,238.72 2
32 8M0083288 PUMP ASSY-TRIM Plastic 849670A05 SS $1,351.64 $1,238.72 2
32 846860T1 PUMP ASSY-TRIM (Heavy Duty) ACT $2,587.85 $2,371.63 2
33 845521A1 STUD KIT-HYD-5.50 (Quantity 4) ACT $580.03 $545.53 OPT
33 845525A1 STUD KIT-HYD-6.00 (Quantity 4) ACT $580.03 $545.53 OPT
34 844093 ----NUT ACT $1.38 $1.36 2
