| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

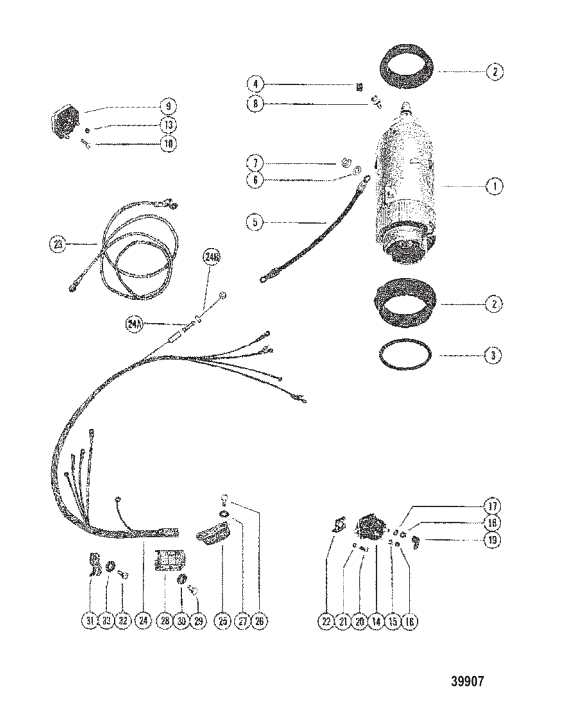

| 1 | 893891T | STARTER MOTOR ASSEMBLY | 66015 | SS |
|
$412.35 | $394.09 | 1 | |
| 2 | 8M0034918 | COLLAR RUBBER - STARTER MOTOR | 56703 | SS |
|
$9.30 | $9.07 | 2 | |
| 3 | 56774 | SPACER COLLAR TO BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 8M0043376 | STOP RUBBER - STARTER MOTOR | 57247 | SS |
|
$46.00 | $45.17 | 2 | |
| 5 | 93389A1 | CABLE ASSEMBLY MOTOR TO SOLENOID | 66053A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 5 | 93389A1 | CABLE ASSEMBLY MOTOR TO SOLENOID | 66053A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 6 | 26992 | LOCKWASHER (.250) Stainle STARTER MOTOR TERMINAL | ACT | $1.20 | $1.18 | 1 | |||
| 7 | 64015 | NUT (.250-20) STARTER MOTOR TERMINAL | ACT | $2.81 | $2.75 | 1 | |||
| 8 | 69035 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel | ACT | $1.80 | $1.76 | 1 | |||
| 9 | 8M0058226 | RECTIFIER | 62351A1 | SS |
|
$90.92 | $88.03 | 1 | |
| 10 | 37656 | SCREW (#10-32 x .620) RECTIFIER TO PLATE | NLA |
|
$0.00 | $0.00 | 2 | ||
| 13 | 45076 | NUT (#10-32) Brass RECTIFIER TERMINAL | ACT | $1.80 | $1.76 | 3 | |||
| 14 | 853654A1 | SOLENOID Starter | 68258 | SS |
|
$42.49 | $41.57 | 1 | |
| 14 | 8M0185149 | SOLENOID ASSEMBLY Starter | 96054 | SS |
|
$38.99 | $38.14 | 1 | |
| 15 | 26996 | LOCKWASHER (#10) Stainles SOLENOID TERMINAL | ACT |
|
$1.20 | $1.18 | 2 | ||
| 15 | 26995 | LOCKWASHER (#8) Stainless SOLENOID TERMINAL | ACT |
|
$1.10 | $1.08 | 2 | ||
| 16 | 68219 | NUT (#10-32) Stainless St SOLENOID TERMINAL | ACT |
|
$3.00 | $2.93 | 2 | ||
| 16 | 26419 | NUT (#8-32) Brass SOLENOID TERMINAL | ACT |
|
$1.70 | $1.66 | 2 | ||
| 17 | 8M0204647 | LOCKWASHER (.312) SOLENOID TERMINAL | 26993 | SS |
|
$1.80 | $1.76 | 2 | |
| 17 | 26992 | LOCKWASHER (.250) Stainle SOLENOID TERMINAL | ACT |
|
$1.20 | $1.18 | 2 | ||
| 18 | 8M0204668 | NUT (.312-18) SOLENOID TERMINAL | 68292 | SS |
|
$3.80 | $3.71 | 2 | |
| 18 | 94330 | NUT (.250-20) Brass SOLENOID TERMINAL | ACT |
|
$1.70 | $1.66 | 2 | ||
| 19 | 46265 | BOOT TERMINAL - STARTER SOLENOID | ACT | $4.20 | $4.10 | 1 | |||
| 20 | 38601 | SCREW (.250-28 x 1.250) SOLENOID BOTTOM COWL | ACT | $1.80 | $1.76 | 2 | |||
| 21 | 26992 | LOCKWASHER (.250) Stainle SOLENOID SCREW | ACT | $1.20 | $1.18 | 2 | |||
| 22 | 90547 | LOCATOR STARTER SOLENOID | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 88439A3 | CABLE ASSEMBLY Positive - Battery | ACT | $36.00 | $35.35 | 1 | |||
| 23 | 88439A4 | CABLE ASSEMBLY Battery - Negative | ACT | $47.76 | $46.89 | 1 | |||
| 24 | 96233A2 | HARNESS ASSEMBLY | 89915A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 24 | 96233A2 | HARNESS ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24A | 8M0207796 | ----FUSE 20 Ampere | 79091 | SS |
|
$8.20 | $8.00 | 1 | |
| 24B | 95084A2 | ----CABLE ASSEMBLY FUSE | ACT |
|
$17.40 | $16.97 | 1 | ||
| 25 | 88608 | CLAMP WIRING HARNESS | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 28636 | SCREW (.250-20 x .750) WIRING HARNESS CLAMP | ACT | $1.80 | $1.76 | 2 | |||
| 27 | 26996 | LOCKWASHER (#10) Stainles WIRING HARNESS CLAMP SCREW | ACT | $1.20 | $1.18 | 2 | |||
| 28 | 89047 | BRACKET WIRING HARNESS | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 32228 | SCREW (#10-32 x .625) WIRING HARNESS BRACKET | ACT | $1.80 | $1.76 | 2 | |||
| 30 | 38833 | WASHER BRACKET SCREW | ACT | $3.80 | $3.71 | 2 | |||
| 31 | 88751 | CLAMP WIRING HARNESS | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32 | 28636 | SCREW (.250-20 x .750) WIRING HARNESS CLAMP | ACT | $1.80 | $1.76 | 1 | |||
| 33 | 20533 | WASHER CLAMP SCREW | ACT | $1.50 | $1.47 | 1 |
