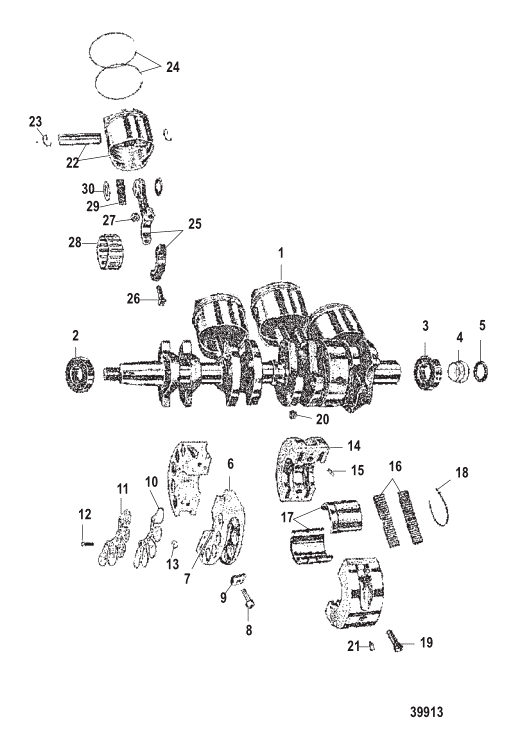

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9074A2 | CRANKSHAFT ASSEMBLY | 6647A2 | SS/NLA |  | $1,778.54 | $1,581.87 | 1 | |
| 2 | 62567T | ----BEARING Ball UPPER | 62567 | SS | | $119.42 | $112.46 | 1 | |
| 3 | 63742T | ----BEARING Ball LOWER | 63742 | SS | | $32.25 | $31.67 | 1 | |
| 4 | 54196A6 | CARRIER ASSEMBLY | ACT | | $21.17 | $20.79 | 1 | ||
| 5 | 65800 | ----PACKING CARRIER | ACT | | $4.40 | $4.30 | 1 | ||
| 6 | 5266T5 | BEARING ASSEMBLY Main (VALVE TYPE) | 5266A5 | SS/NLA | | $441.96 | $416.21 | 2 | |
| 7 | 20032 | ----PIN Dowel MAIN BEARING | ACT | $2.30 | $2.25 | 4 | |||
| 8 | 45775 | ----SCREW (#12-28 x .560) MAIN BEARING CLAMPING | NLA | | $2.49 | $2.43 | 4 | ||
| 9 | 45774 | ----NUT MAIN BEARING CLAMPING SCREW | NLA | | $19.10 | $18.65 | 4 | ||
| 10 | 56007A1 | ----REED SET MATCHED - MAIN BEARING | NLA | | $114.84 | $108.16 | 2 | ||
| 11 | 56008 | ----STOP Reed MAIN BEARING REED VALVES | NLA | | $31.24 | $30.67 | 8 | ||
| 12 | 62204 | ----SCREW REED STOP MOUNTING | NLA | | $0.84 | $0.82 | 20 | ||
| 13 | 53153 | ----NUT REED STOP MOUNTING SCREW | NLA | | $2.00 | $1.96 | 20 | ||
| 14 | 5397A4 | BEARING ASSEMBLY Center Main | NLA | | $248.22 | $233.75 | 1 | ||
| 15 | 20032 | ----PIN Dowel CENTER MAIN BEARING | ACT | $2.30 | $2.25 | 2 | |||
| 16 | 714221 | ----BEARING Needle | 71422 | SS/NLA | | $1.33 | $1.30 | 56 | |
| 17 | 26113T | ----RACE OUTER (PAIR) | 26113 | SS | | $141.83 | $133.57 | 1 | |
| 18 | 26933 | --------RING Snap OUTER RACE CLAMPING | NLA | | $2.73 | $2.66 | 1 | ||
| 19 | 22968 | ----SCREW (.250-28 x 1.25) CENTER MAIN BEARING CLAMPING | NLA | | $1.24 | $1.21 | 2 | ||
| 20 | 8M0207775 | ----NUT (1/4-28X7/32) MAIN BEARING CLAMPING SCREW | 20184 | SS | | $9.40 | $9.17 | 2 | |
| 21 | 47246 | ----PIN Dowel STEPPED | NLA | | $13.92 | $13.58 | 1 | ||
| 22 | 9137A12 | PISTON ASSEMBLY | 7435A3 | SS/NLA | | $124.16 | $116.93 | 4 | |
| 22 | 9137A13 | PISTON ASSEMBLY | 7436A2 | SS/NLA | | $159.42 | $150.13 | AR | |
| 22 | 9137A14 | PISTON ASSEMBLY | 7455A3 | SS | | $159.42 | $150.13 | AR | |
| 23 | 857196 | ----RING Lock PISTON PIN | 52035 | SS | | $3.30 | $3.22 | 8 | |
| 24 | 78816A12 | ----RING | ACT | | $197.92 | $186.38 | 1 | ||
| 24 | 78811A12 | ----RING SET Piston - .015 Oversize | NLA | | $79.45 | $76.42 | 1 | ||
| 24 | 88392A12 | ----RING SET Piston - .030 Oversize | NLA | | $190.83 | $179.71 | 1 | ||
| 25 | 8101A3 | CONNECTING ROD ASSEMBLY | NLA | | $256.83 | $241.85 | 4 | ||
| 26 | 91012 | ----SCREW (.250-28 Special) CONNECTING ROD | ACT | | $7.60 | $7.42 | 8 | ||
| 26 | 54803 | ----SCREW (.250-28 x 1.500) CONNECTING ROD | NLA | | $3.76 | $3.67 | 8 | ||
| 27 | 49091 | ----NUT CONNECTING ROD SCREW | NLA | | $2.63 | $2.57 | 8 | ||
| 28 | 62596A1 | ----BEARING ASSEMBLY CRANKPIN | NLA | | $185.60 | $174.77 | 4 | ||
| 29 | 8M0214934 | ----BEARING PISTON PIN | 47270 | SS | | $0.40 | $0.40 | 116 | |
| 30 | 8M0032839 | ----WASHER NEEDLE LOCATING | 47247 | SS | | $10.90 | $10.63 | 8 | |
| - | 73645A87 | GASKET SET | 73645A32 | SS/NLA | | $105.00 | $98.88 | 1 |
