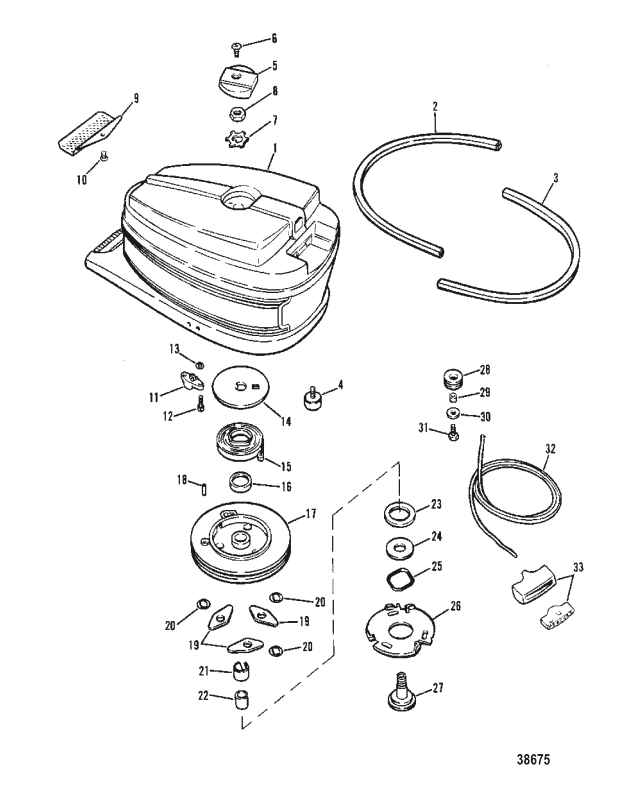

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7668A2 | TOP COWL ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 39538 | ----STRIP SOUND SEAL-REAR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 39537 | ----STRIP SOUND SEAL-FORWARD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 66018 | ----MOUNT RUBBER-TOP COWL | NLA |
|
$0.00 | $0.00 | 2 | ||
| 5 | 89096 | TRIM COVER TOP COWL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 64652 | SCREW TRIM COVER TO TOP COWL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 20165 | TAB WASHER SHEAVE SHAFT NUT | NLA |
|
$3.00 | $2.93 | 1 | ||
| 8 | 20166 | NUT SHEAVE SHAFT (LEFT HAND THREAD) | NLA |
|
$3.10 | $3.05 | 1 | ||
| 9 | 64601 | COVER VENT-TOP COWL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 35519 | SCREW (#10-16 x .500) VENT SCREEN TO TOP COWL | NLA |
|
$0.00 | $0.00 | 2 | ||
| 11 | 39257 | BRACKET TOP COWL FASTENING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 39258 | BRACKET TOP COWL FASTENING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 39514 | SCREW BRACKET TO TOP COWL (1-1/8") | NLA |
|
$0.00 | $0.00 | 4 | ||
| 13 | 39143 | WASHER (.253 x .625 x .09 BRACKET SCREW | ACT | $9.40 | $9.17 | 4 | |||
| 14 | 20155 | RETAINER STARTER SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 29340T02 | SPRING STARTER REWIND | 29340A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 16 | 28912 | BUSHING SPRING GUIDE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 93696A2 | SHEAVE ASSEMBLY Starter | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 22896 | ----PIN RETAINER, STARTER CABLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 30596 | PAWL STARTER | NLA |
|
$0.00 | $0.00 | 3 | ||
| 20 | 36206 | WAVE WASHER STARTER PAWL | NLA |
|
$2.05 | $2.00 | 3 | ||
| 21 | 28919 | BUSHING NYLON-SHEAVE SHAFT SPACER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 61005 | SPACER SHEAVE SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 26179 | RETAINER SHEAVE SHAFT TO STARTER SHEAVE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 35559 | WASHER SHEAVE SHAFT RETAINER | ACT | $5.41 | $5.27 | 1 | |||
| 25 | 20160 | WAVE WASHER RETAINER TENSION | ACT | $3.80 | $3.71 | 1 | |||
| 26 | 30595 | PLATE RETAINER-STARTER PAWL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 35558 | SHAFT Sheave | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 93695 | PULLEY STARTER CABLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 309772 | SPACER CALBE PULLEY | 30977 | SS |
|
$4.80 | $4.69 | 1 | |
| 30 | 22887 | WASHER PULLEY FASTENING SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | 28789 | SCREW (.190-24 x .750) PULLEY TO TOP COWL | NLA |
|
$0.75 | $0.74 | 1 | ||
| 32 | 12066Q10 | ROPE | 12066A9 | SS |
|
$13.59 | $13.27 | 1 | |
| 33 | 79470A1 | RETAINER KIT Rope | ACT | $24.67 | $24.23 | 1 |
