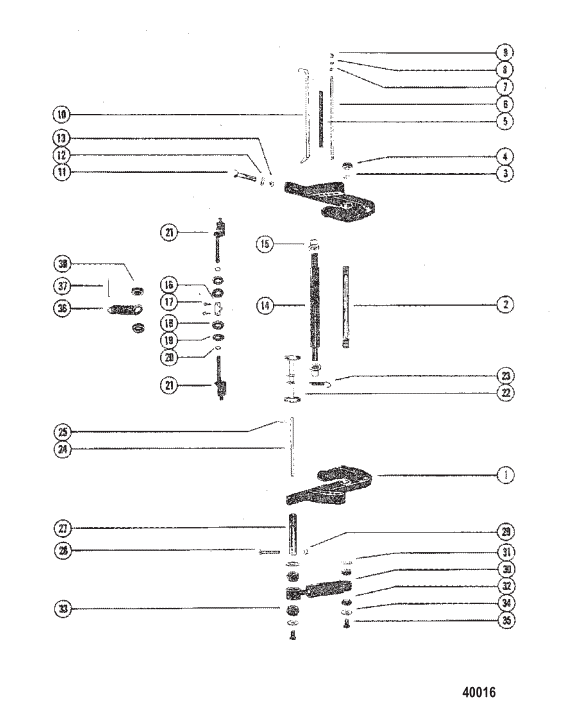

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8822A1 | BRACKET Transom | 7799 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 2 | 89099 | TILT TUBE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 89297 | WAVE WASHER TILT TUBE | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 858869 | NUT (.875-14) TILT TUBE | 56041 | SS |
|
$4.99 | $4.88 | 2 | |
| 5 | 87642 | SPACER TRANSOM BRACKET STUD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 87643 | STUD TRANSOM BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 36001 | WASHER TRANSOM BRACKET STUD | ACT | $1.50 | $1.47 | 1 | |||
| 8 | 8M0204647 | LOCKWASHER (.312) TRANSOM BRACKET STUD | 26993 | SS |
|
$1.80 | $1.76 | 2 | |
| 9 | 28770 | NUT (.312-24) Stainless S TRANSOM BRACKET STUD | ACT | $3.60 | $3.52 | 2 | |||
| 10 | 8M0026068 | PIN ASSEMBLY Tilt Lock | 49930A1 | SS |
|
$55.42 | $53.30 | 1 | |
| 11 | 89673 | SCREW (.375-16 x 5.00) TRANSOM BRACKET | NLA |
|
$0.00 | $0.00 | 2 | ||
| 12 | 46765 | WASHER TRANSOM BRACKET BOLT | 68410 | REP |
|
$11.40 | $11.12 | 2 | |
| 13 | 82671112 | NUT TRANSOM BRACKET BOLT | 99405 | SS |
|
$3.59 | $3.50 | 2 | |
| 11 | 677552 | BOLT TRANSOM BRACKET (6") | 67755 | SS |
|
$28.16 | $27.66 | 2 | |
| 12 | 8M0204648 | WASHER (1.5 x 3.05 x 0.13 TRANSOM BRACKET BOLT | 28421 | SS |
|
$4.00 | $3.91 | 2 | |
| 13 | 82671117 | NUT TRANSOM BRACKET BOLT | 8M0027784 | SS |
|
$9.00 | $8.78 | 2 | |
| 14 | 89116 | PIN UPPER SHOCK MOUNTING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 89117 | BUSHING UPPER SHOCK MOUNTING PIN | NLA |
|
$0.00 | $0.00 | 2 | ||
| 16 | 79659 | COUPLING TILT LOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 47959 | COTTER PIN TILT LOCK | ACT | $2.99 | $2.92 | 2 | |||
| 18 | 22734 | SEAL Oil SWIVEL BRACKET (TILT LOCK) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 19 | 76388 | WASHER TILT LOCK | NLA |
|
$0.00 | $0.00 | 2 | ||
| 20 | 627021 | O-RING (.301 x .070) TILT LOCK | 62702 | SS |
|
$1.69 | $1.65 | 2 | |
| 21 | 89105 | TILT LOCK | NLA |
|
$0.00 | $0.00 | 2 | ||
| 22 | 87431 | LOCK ASSEMBLY Reverse | NLA |
|
$0.00 | $0.00 | 2 | ||
| 22 | 14664A3 | LOCK ASSEMBLY Reverse | 92405A1 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 23 | 78203A2 | SPRING | 78203A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 23 | 78203A2 | SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 56349 | SHAFT REVERSE LOCK PIVOT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 45882 | COTTER PIN LOCK TO SHAFT | ACT |
|
$2.82 | $2.77 | 1 | ||
| 27 | 28414 | PIN LOWER SHOCK MOUNTING | NLA |
|
$0.00 | $0.00 | 2 | ||
| 28 | 21937 | SCREW LOWER SHOCK PIN (2") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 29 | 8M0207775 | NUT (1/4-28X7/32) LOWER SHOCK PIN SCREW | 20184 | SS |
|
$9.80 | $9.56 | 2 | |
| 30 | 58780A7 | SHOCK ABSORBER MERCURY | 58780A3 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 31 | 28196 | WASHER UPPER BUSHING RETAINER (INNER) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 32 | 32171 | BUSHING RUBBER - SHOCK ABSORBER (UPPER) | NLA |
|
$0.00 | $0.00 | 4 | ||
| 33 | 28198 | BUSHING RUBBER - SHOCK ABSORBER (LOWER) | NLA |
|
$0.00 | $0.00 | 4 | ||
| 34 | 69374 | WASHER UPPER/LOWER SHOCK PIN (LOWER) | NLA |
|
$0.75 | $0.74 | 4 | ||
| 35 | 69375 | SCREW UPPER AND LOWER SHOCK PIN | NLA |
|
$0.00 | $0.00 | 4 | ||
| 36 | 94891 | SPRING COIL - SWIVEL BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 37 | 38311 | PIN COIL SPRING MOUNTING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 38 | 28688 | SPACER RUBBER - COIL SPRING | NLA |
|
$0.00 | $0.00 | 2 | ||
| - | 85653A87 | GASKET SET | 85653A32 | SS |
|
$139.33 | $131.22 | 1 |
