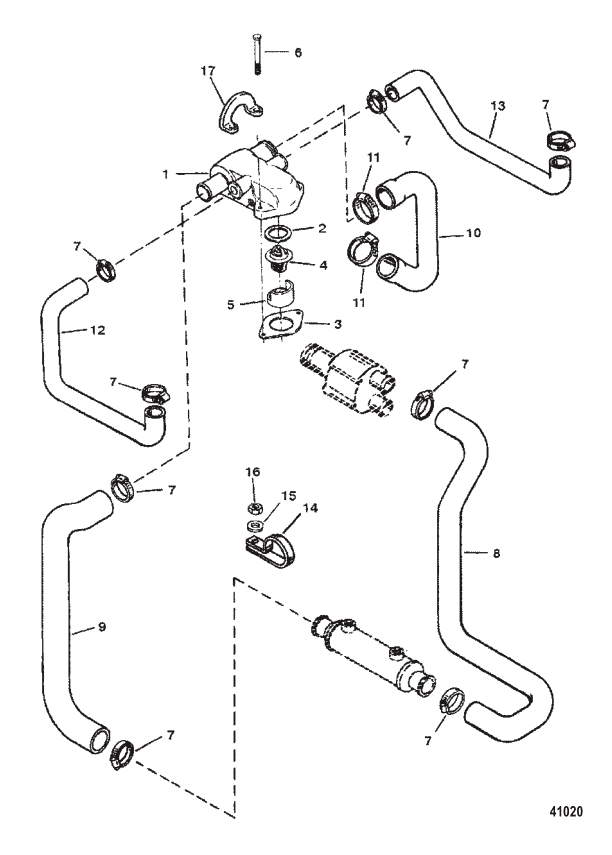

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807790A1 | HOUSING ASSY | 807123A2 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 8M0238323 | GASKET | 806871 |
|
$10.20 | $9.95 | 1 | ||
| 3 | 530451 | GASKET | ACT |
|
$5.69 | $5.56 | 1 | ||
| 4 | 8M0109441 | THERMOSTAT-160 | 8072522 | SS |
|
$34.49 | $33.72 | 1 | |
| 5 | 8M0214947 | SLEEVE | 806922 | SS |
|
$17.89 | $17.46 | 1 | |
| 6 | 8M0113179 | SCREW | 98508 | SS |
|
$8.19 | $8.00 | 2 | |
| 7 | 815504220 | CLAMP | ACT | $7.59 | $7.42 | AR | |||
| 8 | 88795 | HOSE Oil Cooler to Sea Pump | ACT | $59.49 | $56.02 | 1 | |||
| 9 | 806856 | HOSE Oil Cooler to Thermostat Housing | ACT | $43.49 | $42.55 | 1 | |||
| 10 | 861590A05 | HOSE Thermostat Housing to Water Pump | 806825 | SS |
|
$65.99 | $61.84 | 1 | |
| 11 | 815504232 | CLAMP | ACT | $8.89 | $8.68 | 2 | |||
| 12 | 160211 | HOSE Thermostat Housing | ACT |
|
$40.99 | $40.25 | 1 | ||
| 13 | 871171 | HOSE Thermostat Housing | ACT |
|
$44.49 | $43.54 | 1 | ||
| 14 | 47715 | CLIP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 39107 | LOCKWASHER | ACT | $1.50 | $1.47 | 1 | |||
| 16 | 29250 | NUT | ACT | $2.89 | $2.82 | 1 | |||
| 17 | 12552 | LIFTING EYE | ACT | $19.89 | $19.41 | 1 |
