| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

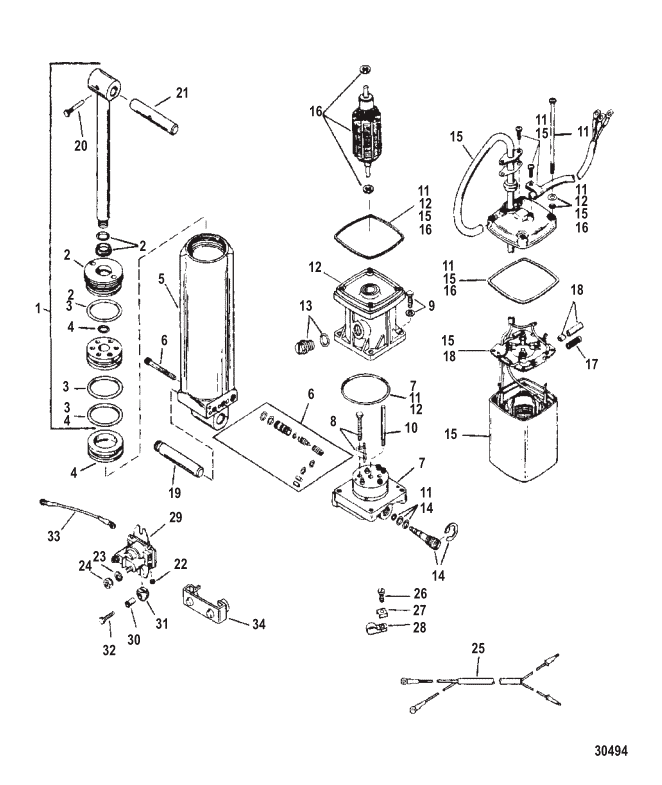

| _ | 8M0171817 | PUMP ASSEMBLY Trim | 824051 | SS |
|
$1,528.14 | $1,400.88 | 1 | |
| 1 | 8M0171821 | ----SHOCK ROD ASSEMBLY | 8116661 | SS |
|
$430.14 | $411.16 | 1 | |
| 2 | 813428 | ----END CAP ASSEMBLY Trim Cylinder | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 813432A3 | ----SEAL KIT Cylinder | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 810776 | ----PISTON KIT Memory | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 8M0055015 | ----CYLINDER ASSEMBLY Trim | 8116691 | SS |
|
$403.79 | $385.96 | 1 | |
| 6 | 811678A6 | ----SCREW AND SEAL KIT | 811678A5 | SS |
|
$162.50 | $153.03 | 1 | |
| 7 | 809901A2 | ----PUMP/MANIFOLD KIT | 8116707 | NLA |
|
$0.00 | $0.00 | 1 | |
| 8 | 809901A2 | --------ROCKER ARM KIT | 823180A1 | NLA |
|
$0.00 | $0.00 | 1 | |
| 9 | 813436 | ----SCREW KIT (4 Pieces) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 8116711 | ----DRIVESHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 809901A2 | ----SEAL KIT (With Case Bolts) | 811626A3 | NLA |
|
$0.00 | $0.00 | 1 | |
| 12 | 809901A2 | ----RESERVOIR KIT | 8116731 | NLA |
|
$0.00 | $0.00 | 1 | |
| 13 | 8134351 | ----PLUG KIT | 813435 | SS |
|
$41.92 | $41.16 | 1 | |
| 14 | 893929A01 | ----MANUAL RELEASE ASSEMBLY | 813442A2 | SS |
|
$73.25 | $70.46 | 1 | |
| 15 | 809901A2 | ----FRAME AND FIELD KIT | 8116241 | NLA |
|
$0.00 | $0.00 | 1 | |
| 16 | 809901A2 | ----ARMATURE KIT | 8116271 | NLA |
|
$0.00 | $0.00 | 1 | |
| 17 | 12665 | ----SPRING KIT Brush Brush | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 811625 | ----BRUSH CARD KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 818898 | PIN Anchor | ACT | $26.50 | $26.03 | 1 | |||
| 20 | 821539 | PIN Trilobe | ACT | $4.60 | $4.49 | 1 | |||
| 21 | 99625002 | SHAFT | 996251 | SS |
|
$20.00 | $19.64 | 1 | |
| 22 | 26419 | NUT (#8-32) Brass | ACT | $1.70 | $1.66 | 4 | |||
| 23 | 26992 | LOCKWASHER (.250) Stainle | ACT | $1.20 | $1.18 | 4 | |||
| 24 | 64015 | NUT (.250-20) | ACT | $2.81 | $2.75 | 4 | |||
| 25 | 17201A2 | CABLE ASSEMBLY (17.00 Inches) Trim | NLA |
|
$6.16 | $6.01 | 1 | ||
| 26 | 878607 | SCREW (#10-16 x .380) | 817626 | SS |
|
$1.10 | $1.08 | 1 | |
| 27 | 8M0084613 | C WASHER | 69205 | SS |
|
$1.10 | $1.08 | 1 | |
| 28 | 22875 | CLIP | ACT | $4.00 | $3.91 | 1 | |||
| 29 | 8M0185145 | SOLENOID ASSEMBLY | 818997A1 | SS |
|
$81.49 | $78.03 | 2 | |
| 30 | 8M0214955 | ----BUSHING | 818968 | SS |
|
$2.90 | $2.83 | 3 | |
| 31 | 818967 | ----GROMMET | ACT | $3.20 | $3.13 | 3 | |||
| 32 | 19932100 | SCREW (.250-20 x 1.00) | NLA |
|
$2.15 | $2.10 | 3 | ||
| 33 | 87379A14 | WIRE ASSEMBLY (2.750 Inches) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 87379A14 | WIRE ASSEMBLY (2.750 Inches) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 33 | 88807A16 | CABLE ASSEMBLY (4.00 Inches) Black | ACT | $5.10 | $4.98 | 2 | |||
| 34 | 97861 | INSULATOR Solenoid | ACT | $5.20 | $5.08 | 2 |
