| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

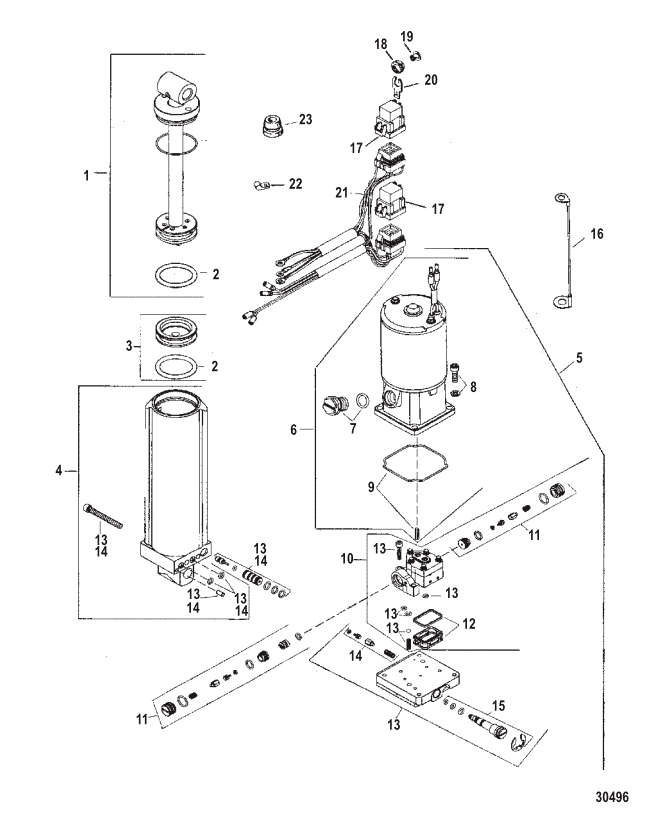

| _ | 8M0171817 | POWER TRIM KIT Trim | 830250A2 | SS |
|
$1,714.49 | $1,571.46 | 1 | |
| _ | 8M0055014 | ----POWER TRIM ASSY Trim | 830250A3 | ACT |
|
$0.00 | $0.00 | 1 | |
| 1 | 8M0171821 | --------SHOCK ROD KIT | 811666A1 | SS |
|
$430.49 | $411.16 | 1 | |
| 2 | 8M0171819 | ------------O RING KIT | 809872A2 | SS |
|
$20.79 | $20.38 | 1 | |
| 3 | 8M0171822 | --------MEMORY PISTON | 810776A1 | SS |
|
$55.49 | $53.36 | 1 | |
| 4 | 8M0055015 | --------CYLINDER ASSY | 811669A1 | SS |
|
$403.99 | $385.96 | 1 | |
| 5 | 8M0055020 | --------PUMP/MOTOR ASSY | 809901A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 6 | 893907A02 | ------------MOTOR KIT | 809885A1 | SS |
|
$714.99 | $672.61 | 1 | |
| 7 | 8134351 | ----------------PLUG ASSY-RESERVO Reservoir | ACT | $41.99 | $41.16 | 1 | |||
| 8 | 809876A1 | ----------------SCREW KIT (Qty 4 Pieces) | ACT | $23.69 | $23.24 | 1 | |||
| 9 | 809877A1 | ----------------DRIVESHAFT ASSY | ACT | $39.99 | $39.12 | 1 | |||
| 10 | 8M0055019 | ------------PUMP ASSY | 809874A1 | SS |
|
$609.49 | $573.02 | 1 | |
| 11 | 893913A02 | ----------------POPPET KIT-T & T | 809879A1 | SS |
|
$129.99 | $122.27 | 2 | |
| 12 | 893912A02 | ----------------FILTER/SEAL KIT | 809878A1 | SS |
|
$23.49 | $23.00 | 1 | |
| 13 | 8M0055018 | ------------MANIFOLD KIT-T/T | 809875A1 | SS |
|
$479.99 | $458.74 | 1 | |
| 14 | 8M0090404 | ----------------VALVE KIT-TRIM | 809873A1 | SS |
|
$182.49 | $171.71 | 1 | |
| 15 | 893929A01 | ----------------VALVE KIT-RELIEF Manual Release | 813442A2 | SS |
|
$73.49 | $70.46 | 1 | |
| NS | 8M0171820 | ------------O RING KIT (Complete) | 809880A1 | SS |
|
$123.99 | $116.78 | 1 | |
| 16 | 88238A18 | --------CABLE ASSY Ground | ACT | $7.39 | $7.22 | 1 | |||
| 17 | 8M0207773 | ----RELAY ASSY-TRIM | 828151A1 | SS |
|
$22.69 | $22.26 | 2 | |
| 18 | 818967 | --------GROMMET | ACT | $3.19 | $3.11 | 2 | |||
| 19 | 8M0214955 | --------BUSHING | 818968 | SS |
|
$2.89 | $2.82 | 2 | |
| 20 | 8M0207771 | --------BRACKET Relay | 828102 | SS |
|
$7.39 | $7.22 | 2 | |
| 21 | 819514A11 | ----HARNESS ASSY | ACT | $75.49 | $72.54 | 1 | |||
| 22 | 22740 | ----CLIP | ACT | $5.09 | $4.98 | 1 | |||
| 23 | 19565002 | ----GROMMET | 19565 | SS |
|
$30.99 | $30.36 | 1 |
