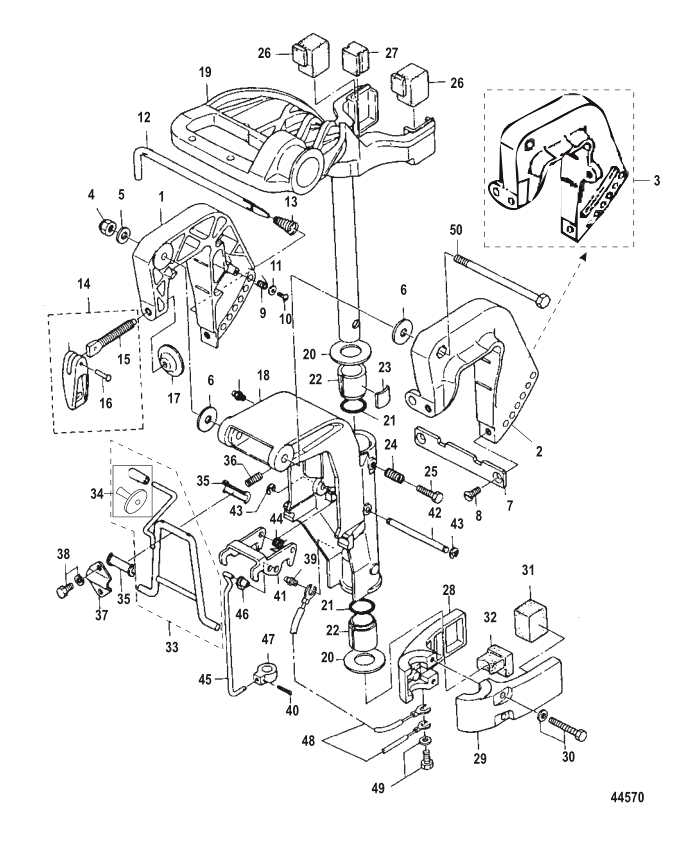

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 9622T6 CLAMP BRACKET Starboard ACT $174.00 $163.86 1
1 8M0156180 CLAMP BRACKET Starboard 8M0048131 SS $137.50 $129.49 1
2 96231 CLAMP BRACKET Port ACT $158.26 $149.03 1
3 8M0156182 CLAMP BRACKET Port 8M0048133 SS $61.83 $59.48 1
4 95374 NUT Nylon ACT $9.60 $9.37 1
5 16192 WASHER 895106001 SS $3.60 $3.52 1
6 95375 WASHER ACT $4.60 $4.49 2
7 161931 DISTANCE PLATE ACT $16.83 $16.53 1
8 16194 SCREW ACT $2.20 $2.15 2
9 161951 SPRING ACT $7.80 $7.61 1
10 16196 SCREW ACT $4.20 $4.10 1
11 16197 WASHER ACT $3.80 $3.71 1
12 16198004 THRUST ROD 16198 SS $48.00 $47.14 1
13 815093003 SPRING 8150931 REP $4.70 $4.59 1
14 8M0156642 CLAMP SCREW ASSEMBLY M10 16200 REP $60.92 $58.61 2
14 8M0156640 THUMB SCREW ASSEMBLY 1/2 Inch Thread Size 16200A1 REP $92.12 $88.62 2
15 NSS --------NOT SOLD SEPARATE Clamp Screw $0.00 $0.00 2
16 NSS --------NOT SOLD SEPARATE Pin $0.00 $0.00 2
17 95379 PAD NLA $0.00 $0.00 2
18 8M0192162 SWIVEL BRACKET 8037721 SS $119.50 $112.54 1
19 803773T01 SHAFT Steering 8037731 SS $222.67 $209.69 1
20 8037741 THRUST PLATE ACT $5.90 $5.76 2
21 8126412 O-RING ACT $3.40 $3.32 2
22 163366 BUSHING ACT $9.80 $9.56 2
23 162052 FRICTION PLATE ACT $8.10 $7.90 1
24 953838 SPRING ACT $10.19 $9.95 1
25 879194254 BOLT 823042045 SS $6.70 $6.54 1
26 8037753 RUBBER Mount ACT $6.10 $5.95 2
27 8037781 RUBBER Damper ACT $4.50 $4.39 1
28 803776T08 BRACKET Mount (Starboard) 8037762 SS $54.67 $52.58 1
29 803776T09 BRACKET Mount (Port) 8037763 SS $48.58 $47.71 1
30 8M0102279 BOLT Stainless Steel 82304222 SS $3.00 $2.93 2
31 8037754 RUBBER Mount ACT $8.40 $8.20 2
32 8037755 RUBBER Mount ACT $7.00 $6.83 1
33 815094A04 STOPPER ASSEMBLY Tilt 815094A1 SS $48.17 $47.30 1
34 NSS --------NOT SOLD SEPARATE Grip $0.00 $0.00 1
35 825113 BUSHING ACT $5.20 $5.08 2
36 813028 SPRING ACT $8.80 $8.59 1
37 16210002 SET PLATE ACT $8.10 $7.90 1
38 8230427 BOLT 82304234 SS $4.10 $4.00 2
39 824969 FITTING Grease ACT $9.00 $8.78 2
40 8150267 COTTER PIN ACT $0.80 $0.79 1
41 804045003 LOCK Reverse ACT $39.33 $38.63 1
42 804046002 SHAFT Reverse Lock ACT $5.90 $5.76 1
43 953181 E RING ACT $3.80 $3.71 2
44 804905 SPRING ACT $3.70 $3.61 1
45 8037871 LINK Reverse Lock ACT $16.75 $16.45 1
46 853748 SNAP Link Rod ACT $11.60 $11.32 1
47 804906 JOINT ACT $5.70 $5.56 1
48 898101091 CABLE ASSEMBLY Ground 878357 SS $14.20 $13.85 2
49 8230427 BOLT 82304234 SS $4.10 $4.00 1
50 898101337 BOLT 95373 SS $25.00 $24.55 1
