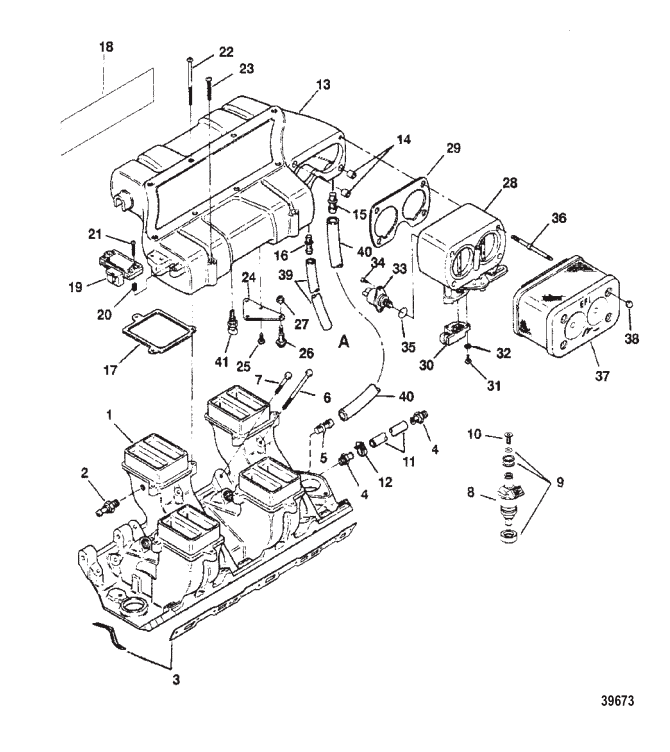

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 805233A6 | MANIFOLD ASSEMBLY Intake | 805233A2 | SS/NLA |  | $2,243.92 | $2,057.06 | 1 | |
| 2 | 805691 | ----FITTING (.250) Barb | ACT | $24.00 | $23.57 | 1 | |||
| 3 | 805403A1 | ----GASKET SET | ACT | | $108.33 | $102.02 | 1 | ||
| 4 | 806242 | ----CONNECTOR | ACT | $70.50 | $67.81 | 2 | |||
| 5 | 805519 | ----FITTING Barb (.250 Inch) | NLA | | $38.96 | $37.99 | 1 | ||
| 6 | 807640 | SCREW (.375-16 x 5.5) (5-1/2 IN.) | NLA | | $12.74 | $12.41 | 4 | ||
| 7 | 807641 | SCREW (.375-16 x 1.75) (1-1/2 IN.) | ACT | $8.50 | $8.29 | 12 | |||
| 8 | 805225A1 | INJECTOR ASSEMBLY Fuel | ACT | | $306.99 | $288.87 | 8 | ||
| 9 | 805511A1 | ----SEALING KIT Fuel Injector | ACT | | $23.33 | $22.92 | 8 | ||
| 10 | 17422 | ----FILTER | ACT | $30.50 | $29.95 | 8 | |||
| 11 | 8059871 | HOSE Water Pump To Intake Manifold | ACT | $21.25 | $20.87 | 1 | |||
| 12 | 8M0204717 | CLAMP Worm Gear | 815504412 | SS | | $6.60 | $6.44 | 2 | |
| 13 | 805240A1 | PLENUM ASSEMBLY Intake | NLA | | $848.05 | $781.57 | 1 | ||
| 14 | 52698 | ----SLEEVE | NLA | | $4.11 | $4.02 | 2 | ||
| 15 | 805519 | ----FITTING Barb (.250 Inch) | NLA | | $38.96 | $37.99 | 1 | ||
| 16 | 805598 | ----FITTING (.1875) Barb | ACT | $11.60 | $11.32 | 1 | |||
| 17 | 805522A1 | ----GASKET SET | ACT | | $53.49 | $51.30 | 1 | ||
| 18 | 8238166 | ----DECAL | NLA | | $17.63 | $17.30 | 1 | ||
| 18 | 8238165 | ----DECAL | NLA | | $15.54 | $15.24 | 1 | ||
| 19 | 864856A1 | SENSOR ASSEMBLY | 805217A1 | SS | | $271.83 | $255.99 | 1 | |
| 20 | 881733 | ----SEAL | 805412 | SS | | $20.17 | $19.81 | 1 | |
| 21 | 805393 | ----SCREW | NLA | | $0.95 | $0.93 | 2 | ||
| 22 | 805391 | SCREW (.312-18 x 4.500) | ACT | $11.80 | $11.51 | 8 | |||
| 23 | 805390 | SCREW (.312-18 x 2.250) | ACT | $8.50 | $8.29 | 4 | |||
| 24 | 805413T | BRACKET Throttle Cable | NLA | | $18.72 | $18.40 | 1 | ||
| 25 | 73286 | SCREW (.250-20 x .500) Stainless Steel | ACT | $1.70 | $1.66 | 3 | |||
| 26 | 96430 | SHOULDER SCREW | NLA | | $3.26 | $3.19 | 1 | ||
| 27 | 8M0207776 | NUT (.250-20) Stainless Steel | 814101 | SS | | $6.80 | $6.64 | 1 | |
| 28 | 805243A12 | THROTTLE BODY ASSEMBLY | 805243A4 | SS/NLA | | $1,875.26 | $1,667.93 | 1 | |
| 29 | 805396 | ----GASKET Throttle Body | ACT | | $19.25 | $18.91 | 1 | ||
| 30 | 805226A1 | ----SENSOR ASSEMBLY TPS | ACT | | $110.75 | $104.30 | 1 | ||
| 31 | 805400 | --------SCREW (#8-32 x .500) Stainless Steel | ACT | $1.60 | $1.57 | 2 | |||
| 32 | 28001 | --------WASHER (.188 x .438 x .049) | NLA | | $1.01 | $0.99 | 2 | ||
| 33 | 805224A1 | ----MOTOR ASSEMBLY IAC | ACT | | $157.49 | $148.40 | 1 | ||
| 34 | 805400 | --------SCREW (#8-32 x .500) Stainless Steel | ACT | $1.60 | $1.57 | 2 | |||
| 35 | 808547 | --------O-RING | ACT | $1.60 | $1.57 | 1 | |||
| 36 | 805399 | STUD | NLA | | $20.37 | $19.93 | 4 | ||
| 37 | 807656A2 | FLAME ARRESTOR | 805401A2 | SS | | $252.00 | $237.31 | 1 | |
| 38 | 805402 | NUT Acorn | NLA | | $2.21 | $2.16 | 4 | ||
| 39 | 8M0063567 | HOSE | 80617333 | SS | | $36.25 | $35.60 | 1 | |
| 40 | 7381567 | TUBING (42.00 Inches Bulk) | ACT | $29.99 | $29.39 | 1 | |||
| 41 | 805223T | SENSOR | ACT | $143.49 | $134.90 | 1 | |||
| - | 811572A94 | GASKET SET Overhaul | NLA | | $1,562.47 | $1,432.35 | 1 | ||
| - | 805396A92 | GASKET SET Overhaul | NLA | | $1,629.30 | $0.00 | 1 |
