Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

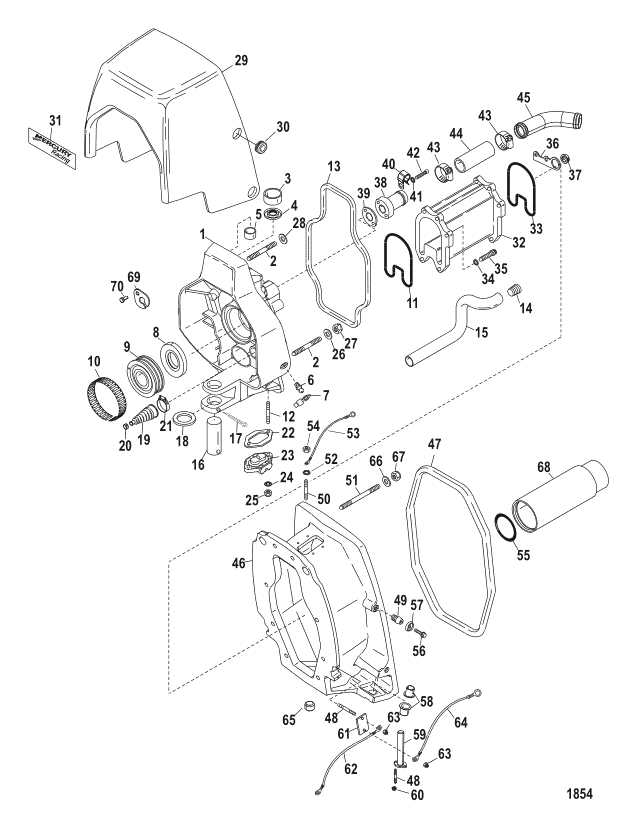

1 8M0062528 GIMBAL HOUSING ASSEMBLY 43881A18 SS $2,526.50 $2,316.10 1
2 57984 ----STUD (.437-14/.437-20 x 2.380) ACT $19.42 $19.07 8
3 983571 ----BUSHING ACT $25.42 $24.96 1
4 8M2005029 ----SEAL Oil 416071 REP $30.99 $30.36 1
5 98356 ----BUSHING ACT $17.75 $17.43 1
6 8M0169589 ----FITTING Grease 74036 SS $4.80 $4.69 1
7 77633Q ----LUBRICAP ACT $7.00 $6.83 1
8 88416 ----SEAL Oil ACT $29.50 $28.97 1
9 879194A01 ----BEARING ASSEMBLY 862540A3 SS $155.99 $146.83 1
10 61075 --------TOLERANCE RING NLA $0.00 $0.00 1
11 41802 ----SEAL Rubber ACT $15.99 $15.61 1
12 56766 ----STUD (.250-20/.250-28 x 1 ACT $3.70 $3.61 2
13 43713 ----SEAL ACT $17.40 $16.97 1
14 41674T ----INSERT 41674 SS $6.10 $5.95 1
15 8M0090859 HOSE 43437 REP $79.67 $76.63 1
16 8M0073409 SWIVEL PIN Lower 99353 SS $59.83 $57.55 1
17 54929 COTTER PIN ACT $7.90 $7.71 1
18 32518 WASHER ACT $3.80 $3.71 1
19 74639A2 BELLOWS ASSEMBLY Shift Cable ACT $34.99 $34.39 1
20 8M0204733 ----CLAMP 38863 SS $7.50 $7.32 1
21 8M0204716 ----CLAMP Worm Gear 815504320 SS $11.50 $11.22 1
22 988231 GASKET ACT $3.20 $3.13 1
23 98825A13 COVER KIT ACT $56.00 $53.87 1
24 78968 LOCKWASHER Internal (.250 ACT $1.80 $1.76 2
25 8267119 NUT (.250-28) ACT $2.60 $2.54 2
26 8M0204655 WASHER (.435 x .875 x .10 35935 SS $2.70 $2.64 8
27 8M0204653 NUT (.437-20) Stainless S 82671015 SS $5.29 $5.17 8
28 840848 WASHER ACT $19.20 $18.73 2
29 8M0056176 COWL ASSEMBLY Transom 840493T1 SS $759.52 $714.34 1
30 840840 ----GROMMET ACT $6.90 $6.73 4
31 840359 ----DECAL Mercury Racing ACT $26.38 $26.01 1
32 840693A2 PLATE KIT Exhaust Extension NLA $0.00 $0.00 1
33 41802 ----SEAL Rubber ACT $15.99 $15.61 1
34 41471 LOCKWASHER (.375) ACT $2.30 $2.25 5
35 8M0113174 SCREW (.375-16 x 1.25) 58640 SS $7.30 $7.12 5
36 840842 BRACKET NLA $19.93 $19.48 1
37 840847 BUSHING Snap ACT $1.50 $1.47 1
38 8M0080097 CONNECTOR 840688 SS $164.33 $154.76 1
39 8M0061737 GASKET 441081 SS $1.70 $1.66 1
40 8M0024808 J CLIP 642351 SS $8.20 $8.00 1
41 78968 LOCKWASHER Internal (.250 ACT $1.80 $1.76 2
42 816742 SCREW (.250-20 x 1.250) ACT $15.90 $15.51 2
43 180766 CLAMP Worm Gear ACT $15.10 $14.73 2
44 8M0062665 HOSE (48.00 Inches Bulk) (Cut To 5.00 Inch Length) 5346170 SS $94.83 $91.22 1
45 840831 TUBE (60 Degree) ACT $101.50 $95.59 1
46 840496A3 BOX ASSEMBLY Transom ACT $1,996.33 $1,829.53 1
47 437131 ----SEAL ACT $23.21 $22.88 1
48 846345 ----STUD (#10-32 x .750) ACT $21.76 $21.36 8
49 8M0034447 ----STUD 840884 SS $46.00 $45.17 4
50 728091 ----STUD (.250-20/.250-28 x 1.620) 72809 SS $9.50 $9.27 3
50 843125 ----STUD (.250-20 x 2.02) ACT $34.92 $34.31 1
51 866562 ----STUD (.437-20 x 4.750) Stainless Steel ACT $12.79 $12.49 4
51 866563 ----STUD (.437-20 x 4.250) Stainless Steel ACT $12.60 $12.29 4
52 93702 ----WASHER (.250 External Sta ACT $2.25 $2.20 1
53 88238A20 ----CABLE ASSEMBLY Ground Strap (6.750 Inches) ACT $7.79 $7.68 1
54 8267098 ----NUT (.250-20) Stainless S ACT $6.90 $6.73 1
55 94926 O-RING (2.489 x .070) ACT $4.40 $4.34 1
56 901921 SCREW (.250-20 x .750) Stainless Steel With Nylon Patch ACT $1.70 $1.66 4
57 840841 WASHER ACT $10.80 $10.54 4
58 8M0214952 BUSHING 8159501 SS $12.29 $12.00 4
59 840739 PIN ACT $201.40 $192.46 2
60 8267096 NUT (#10-32) Stainless Steel ACT $3.70 $3.61 4
61 840801 PLATE ACT $22.17 $21.85 2
62 88238A7 CABLE ASSEMBLY Ground Strap (3.160 Inches) ACT $16.75 $16.45 2
63 8267096 NUT (#10-32) Stainless Steel ACT $3.70 $3.61 4
64 88238A20 CABLE ASSEMBLY Ground Strap (6.750 Inches) ACT $7.79 $7.68 1
65 35052 PLUG Pipe (.250-18 x .375) ACT $19.58 $19.23 1
66 34567 WASHER ACT $1.50 $1.47 8
67 82670815 NUT (.437-20) ACT $2.60 $2.54 8
68 840689T TUBE Extension ACT $326.52 $312.01 1
69 12078 CLAMP ACT $13.60 $13.27 1
70 28635 SCREW (.250-20 x .620) St ACT $1.80 $1.76 1
