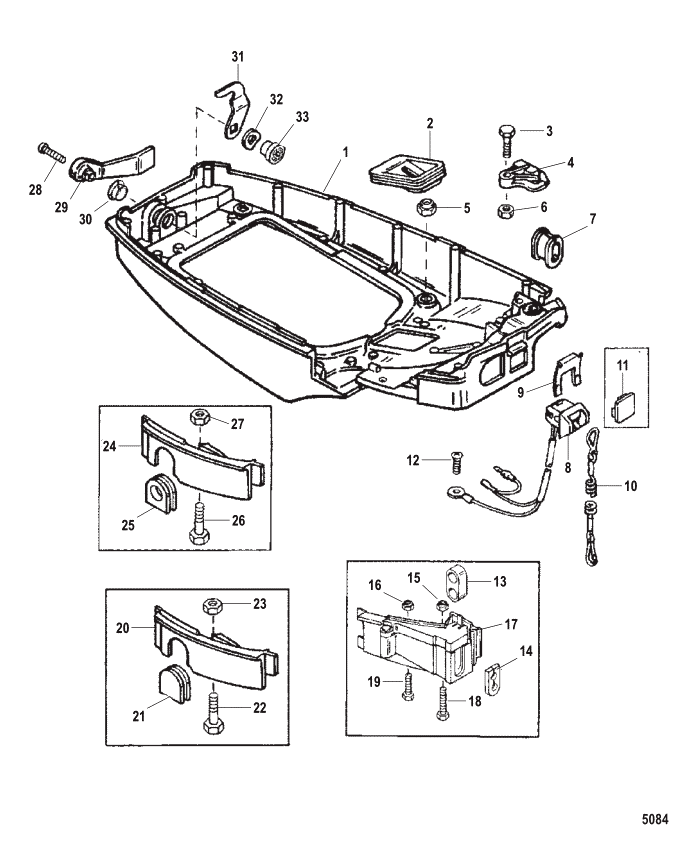

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9682A8 | BOTTOM COWL | ACT |
|
$421.14 | $372.86 | 1 | ||
| 1 | 9682A9 | BOTTOM COWL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 9682A10 | BOTTOM COWL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 17231 | ----GROMMET Shift Shaft | ACT | $7.10 | $6.93 | 1 | |||
| 3 | 4000332 | SCREW (M6 x 35) | ACT | $2.25 | $2.20 | 1 | |||
| 4 | 17223 | COVER Harness | ACT | $6.30 | $6.15 | 1 | |||
| 5 | 401196 | NUT (M6) | ACT | $2.98 | $2.92 | 4 | |||
| 6 | 401196 | NUT (M6) | ACT | $2.98 | $2.92 | 1 | |||
| 7 | 17226 | GROMMET Wire Harness | ACT | $12.40 | $12.10 | 1 | |||
| 8 | 11083A6 | SWITCH ASSEMBLY Stop | 826677A1 | SS |
|
$199.24 | $187.64 | 1 | |
| 9 | 8M0032846 | ----RETAINER Brass | 120441 | SS |
|
$4.53 | $4.44 | 1 | |
| 10 | 15920Q54 | ----LANYARD ASSEMBLY | 15920A54 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 11 | 17230 | PLUG | ACT | $11.00 | $10.73 | 1 | |||
| 12 | 878608 | SCREW (#10-16 x .500) | 812832 | SS |
|
$1.70 | $1.66 | 1 | |
| 13 | 39519 | CUP | ACT | $5.41 | $5.27 | 1 | |||
| 14 | 8243641 | GROMMET Side Cover | ACT | $11.40 | $11.12 | 1 | |||
| 15 | 401196 | NUT (M6) | ACT | $2.98 | $2.92 | 1 | |||
| 16 | 401196 | NUT (M6) | ACT | $2.98 | $2.92 | 1 | |||
| 17 | 8M0053899 | SIDE COVER | 823837A8 | SS |
|
$79.33 | $76.31 | 1 | |
| 17 | 8M0053899 | SIDE COVER | 823837A9 | REP |
|
$79.33 | $76.31 | 1 | |
| 17 | 8M0053899 | SIDE COVER | 823837A10 | SS |
|
$79.33 | $76.31 | 1 | |
| 17 | 8M0053899 | SIDE COVER | 823837A2 | SS |
|
$79.33 | $76.31 | 1 | |
| 17 | 8M0053899 | SIDE COVER | 823837A3 | SS |
|
$79.33 | $76.31 | 1 | |
| 17 | 8M0053899 | SIDE COVER | 823837A4 | SS |
|
$79.33 | $76.31 | 1 | |
| 18 | 8M0206596 | SCREW (M6 x 20) | 4000329 | SS |
|
$0.60 | $0.59 | 1 | |
| 19 | 8M0214928 | SCREW (M6 x 16) | 4000328 | SS |
|
$4.10 | $4.00 | 1 | |
| 20 | 8M0054857 | SIDE COVER | 824367F1 | SS |
|
$36.66 | $36.01 | 1 | |
| 20 | 8M0054857 | SIDE COVER | 824367F2 | REP |
|
$36.66 | $36.01 | 1 | |
| 20 | 8M0054857 | SIDE COVER | 824367F3 | SS |
|
$36.66 | $36.01 | 1 | |
| 21 | 824362 | GROMMET | ACT | $5.30 | $5.17 | 1 | |||
| 22 | 8M0206596 | SCREW (M6 x 20) | 4000329 | SS |
|
$0.60 | $0.59 | 1 | |
| 23 | 401366 | NUT (M6) | 400264 | SS |
|
$3.60 | $3.52 | 1 | |
| 24 | 8M0054857 | SIDE COVER | 824367F1 | SS |
|
$36.66 | $36.01 | 1 | |
| 24 | 8M0054857 | SIDE COVER | 824367F2 | REP |
|
$36.66 | $36.01 | 1 | |
| 25 | 824361 | GROMMET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 8M0206596 | SCREW (M6 x 20) | 4000329 | SS |
|
$0.60 | $0.59 | 1 | |
| 27 | 401366 | NUT (M6) | 400264 | SS |
|
$3.60 | $3.52 | 1 | |
| 28 | 852530 | SCREW (.250-20 x 1.50) | ACT | $1.70 | $1.66 | 1 | |||
| 29 | 17220 | LEVER Cowl Latch | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 812707 | BUSHING | ACT | $8.30 | $8.10 | 1 | |||
| 31 | 816202 | HOOK Latch | ACT | $8.01 | $7.81 | 1 | |||
| 32 | 37642 | WAVE WASHER | ACT | $3.20 | $3.13 | 1 | |||
| 33 | 17224 | NUT Latch Retaining | NLA |
|
$0.00 | $0.00 | 1 |
