| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

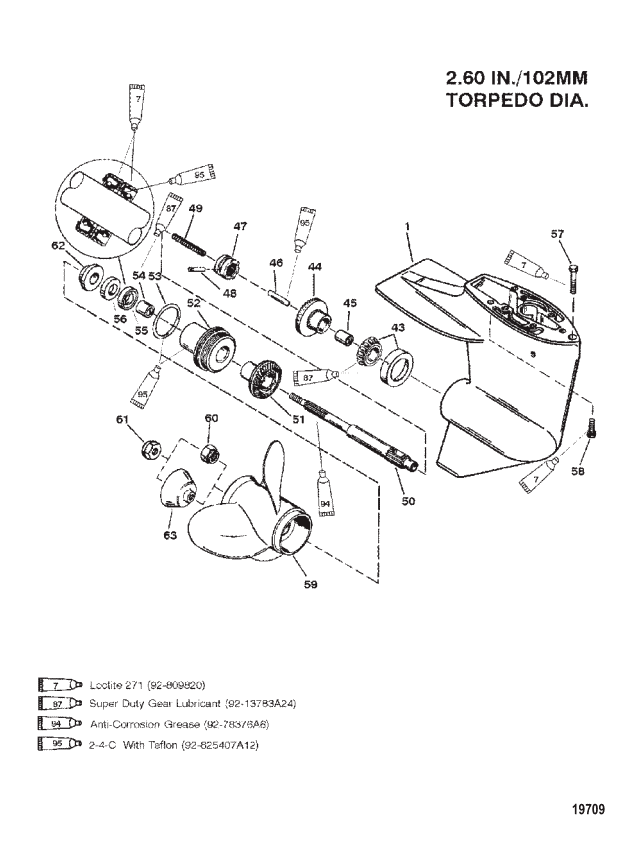

| - | 8833T13 | GEAR HOUSING ASSEMBLY | 8833A13 | SS |
|
$1,500.00 | $1,375.09 | 1 | |
| - | 8833T15 | GEAR HOUSING ASSEMBLY | 8833A15 | SS |
|
$1,500.00 | $1,375.09 | 1 | |
| - | 8833T14 | GEAR HOUSING ASSEMBLY | 8833A14 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 8833T15 | GEAR HOUSING ASSEMBLY | 8833A16 | SS |
|
$1,500.00 | $1,375.09 | 1 | |
| - | 8833T19 | GEAR HOUSING ASSEMBLY Complete | 8833A19 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 8M0083312 | ----GEAR HOUSING ASSEMBLY Basic-Black | 8833A17 | SS |
|
$770.43 | $724.82 | 1 | |
| 1 | 8M0083312 | ----GEAR HOUSING ASSEMBLY Basic-Gray | 8833A18 | REP |
|
$770.43 | $724.82 | 1 | |
| 1 | 8833A20 | ----GEAR HOUSING ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 43 | 821321A1 | ----BEARING ASSEMBLY Roller | ACT | $36.50 | $35.84 | 1 | |||
| 44 | 821924A1 | ----GEAR ASSEMBLY Forward (26 TEETH) | ACT |
|
$282.58 | $266.11 | 1 | ||
| 45 | 41367 | --------BUSHING | ACT | $5.90 | $5.76 | 1 | |||
| 46 | 813139 | ----FOLLOWER Cam | ACT | $32.17 | $31.59 | 1 | |||
| 47 | 821930A1 | ----CLUTCH ASSEMBLY | ACT |
|
$82.24 | $79.11 | 1 | ||
| 48 | 823951 | --------PIN Cross | ACT | $5.20 | $5.08 | 1 | |||
| 49 | 42204 | ----SPRING | ACT | $17.40 | $16.97 | 1 | |||
| 50 | 821929 | ----PROPELLER SHAFT | ACT | $412.08 | $388.06 | 1 | |||
| 51 | 821926T1 | ----GEAR Reverse - 13/26 (26 TEETH) | 8219261 | SS |
|
$208.33 | $196.19 | 1 | |
| 52 | 42144T3 | ----CARRIER ASSEMBLY Bearing | 42144A3 | SS |
|
$131.67 | $124.00 | 1 | |
| 53 | 8M0214923 | --------O-RING (1.984 x .139) | 33145 | SS |
|
$3.80 | $3.71 | 1 | |
| 54 | 821927 | --------BUSHING | ACT | $9.70 | $9.46 | 1 | |||
| 55 | 99325 | --------SEAL | ACT |
|
$19.30 | $18.82 | 1 | ||
| 56 | 821928 | --------SEAL Oil | ACT |
|
$18.25 | $17.92 | 1 | ||
| 57 | 82407110 | ----SCREW (M8 x 50) | ACT | $7.00 | $6.83 | 1 | |||
| 58 | 8240717 | ----SCREW (M8 x 30) | ACT | $5.20 | $5.08 | 2 | |||
| 59 | 828156A12 | BLACK MAX PROPELLER 9 X 9 RH AL 3 BL | ACT | $142.07 | $132.77 | 1 | |||
| 59 | 828152A12 | BLACK MAX PROPELLER 9.3 X 7 RH AL 3 BL | ACT | $142.07 | $132.77 | 1 | |||
| 59 | 828150A12 | BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL | ACT | $142.07 | $132.77 | 1 | |||
| 60 | 420911 | SPACER | ACT | $7.19 | $7.03 | 1 | |||
| 61 | 40140 | NUT (M10) | 13914 | SS |
|
$3.39 | $3.30 | 1 | |
| 62 | 821932 | THRUST HUB (1.390 DIA.) | ACT | $18.56 | $18.24 | 1 | |||
| 62 | 8219321 | THRUST HUB (1.510 DIA.) | ACT | $8.57 | $8.42 | 1 | |||
| 63 | 822559Q01 | CUP ASSEMBLY Reverse Exhaust Block | 822559A1 | SS |
|
$28.88 | $28.48 | 1 | |
| - | 41365A3 | SEAL KIT | ACT | $69.92 | $67.25 | 1 | |||
| - | 42364A92 | GASKET SET Engine | ACT | $112.00 | $105.48 | 1 |
