| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

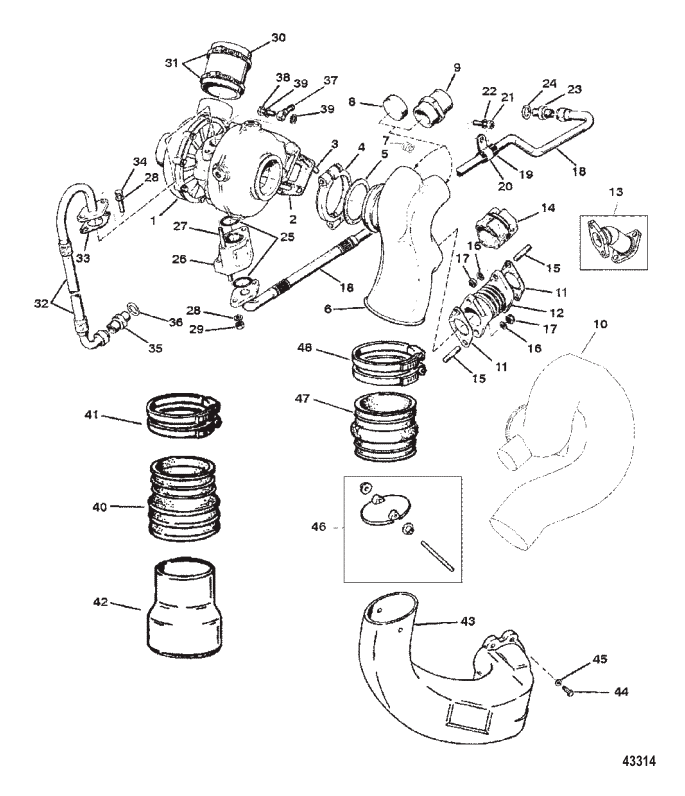

| 1 | 816791 | TURBO CHARGER | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 808714 | ----REPAIR KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 8M0094247 | GASKET | 854129 | SS |
|
$62.49 | $60.05 | 1 | |
| 3 | 8M0073963 | STUD | 801333453 | SS |
|
$6.09 | $5.95 | 4 | |
| 4 | 864148A01 | 18111763272 CLAMP | 801763272 | SS |
|
$69.49 | $66.61 | 1 | |
| 5 | 817089 | GASKET | ACT |
|
$14.09 | $13.75 | 1 | ||
| 6 | 8M0149727 | ORD 8M0149727 | 805602A2 | REP |
|
$736.49 | $692.64 | 1 | |
| 7 | 36382 | ----PLUG | ACT |
|
$5.49 | $5.37 | 1 | ||
| 8 | 91016 | PLUG | ACT |
|
$57.99 | $55.55 | 1 | ||
| 9 | 805315 | CONNECTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 8M0049970 | ORD 8M0049970 Exhaust | 805265A1 | REP |
|
$1,405.49 | $1,288.19 | 1 | |
| 11 | 879721 | GASKET | ACT |
|
$19.69 | $19.21 | 2 | ||
| 12 | 805582T | FLEX TUBE | ACT |
|
$251.99 | $237.31 | 1 | ||
| 12 | 807050T | FLEX TUBE | ACT |
|
$487.99 | $466.05 | 1 | ||
| 13 | 807049T | FLEX TUBE | ACT |
|
$285.99 | $269.10 | 1 | ||
| 14 | 855483 | BLANKET-FLEXTUBE | ACT |
|
$204.49 | $192.43 | 1 | ||
| 14 | 817078 | BLANKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 898101517 | STUD | 809909067 | SS |
|
$1.50 | $1.47 | 4 | |
| 16 | 879194141 | LOCKWASHER | 809930840 | SS |
|
$0.40 | $0.40 | 4 | |
| 17 | 400213 | NUT | ACT | $2.89 | $2.82 | 4 | |||
| 18 | 8M0225546 | LINE-OIL | 854130 | SS |
|
$471.49 | $450.55 | 1 | |
| 19 | 811466 | SPACER | ACT | $5.29 | $5.17 | 1 | |||
| 20 | 811467 | CLAMP | ACT | $6.09 | $5.95 | 1 | |||
| 21 | 811463 | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 811460 | LOCKWASHER | ACT | $0.50 | $0.49 | 1 | |||
| 23 | 801333464 | 11651333464 NIPLE | ACT | $48.49 | $47.38 | 1 | |||
| 24 | 809963342 | O RING | ACT |
|
$4.59 | $4.49 | 1 | ||
| 25 | 811461 | O RING | ACT |
|
$13.09 | $12.78 | 2 | ||
| 26 | 889919 | HOUSING | 854131 | SS |
|
$163.99 | $154.44 | 1 | |
| 27 | 811462 | STUD | NLA |
|
$0.00 | $0.00 | 2 | ||
| 28 | 811460 | LOCKWASHER | ACT | $0.50 | $0.49 | 4 | |||
| 29 | 400213 | NUT | ACT | $2.89 | $2.82 | 2 | |||
| 30 | 891889 | HOSE | ACT | $33.49 | $32.90 | 1 | |||
| 31 | 801333457 | 11651333457 CLAMP | ACT | $22.39 | $21.93 | 2 | |||
| 32 | 801763455 | HOSE | ACT |
|
$181.49 | $170.92 | 1 | ||
| 32 | 854132 | LINE-OIL | ACT |
|
$279.99 | $263.60 | 1 | ||
| 33 | 854133 | GASKET | ACT |
|
$4.79 | $4.69 | 1 | ||
| 34 | 898101555 | SCREW | 811448 | SS |
|
$3.19 | $3.11 | 2 | |
| 35 | 801763389 | 11211763389 FITTG | ACT | $31.29 | $30.69 | 1 | |||
| 36 | 889153 | WASHER | 809963201 | SS |
|
$4.59 | $4.49 | 1 | |
| 37 | 8060832 | FITTING-BANJO | NLA |
|
$0.00 | $0.00 | 1 | ||
| 38 | 801763353 | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 39 | 881791 | WASHER | 809963072 | SS |
|
$3.09 | $3.01 | 2 | |
| 40 | 815529 | TUBING | ACT |
|
$35.49 | $34.82 | 1 | ||
| 41 | 815504272 | CLAMP | ACT |
|
$5.69 | $5.56 | 2 | ||
| 42 | 818184T | ADAPTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 43 | 805013T | ELBOW ASSY-EXH | ACT |
|
$599.49 | $563.95 | 1 | ||
| 43 | 805013T1 | EXHAUST PIPE Exhaust | ACT |
|
$634.99 | $597.01 | 1 | ||
| 44 | 8M0113174 | SCREW | 58640 | SS |
|
$7.29 | $7.12 | 4 | |
| 45 | 41471 | LOCKWASHER | ACT |
|
$2.29 | $2.24 | 4 | ||
| 46 | 807166A3 | SHUTTER ASY(PAIR) | ACT |
|
$117.49 | $110.34 | 1 | ||
| 46 | 805184A1 | SHUTTER ASY-WATER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 47 | 815529 | TUBING | ACT |
|
$35.49 | $34.82 | 1 | ||
| 47 | 8M0199681 | TUBE-EXHAUST | 44348T | SS |
|
$84.49 | $81.04 | 1 | |
| 48 | 815504272 | CLAMP | ACT |
|
$5.69 | $5.56 | 4 | ||
| - | 898300004 | GASKET SET | 879719 | SS |
|
$1,576.49 | $1,444.89 | 1 | |
| - | 898300004 | GASKET SET-OVRHL | 883974 | SS |
|
$1,576.49 | $1,444.89 | 1 |
