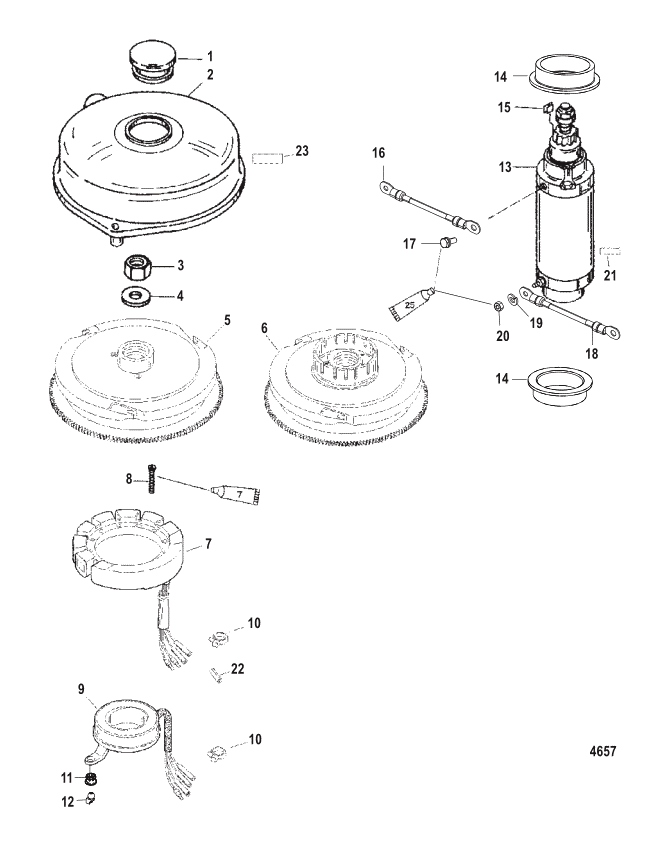

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 45907 | PLUG Yellow | ACT | $7.10 | $6.93 | 1 | |||
| 2 | 812777T1 | COVER ASSEMBLY | ACT | $103.82 | $97.78 | 1 | |||
| 3 | 42979 | NUT (M16) | ACT | $4.50 | $4.39 | 1 | |||
| 4 | 33001 | WASHER (.641 x 1.250 x .190) | 68229 | SS |
|
$11.60 | $11.32 | 1 | |
| 5 | 878226T10 | FLYWHEEL ASSEMBLY | ACT |
|
$765.07 | $719.78 | 1 | ||
| 5 | 878226T16 | FLYWHEEL ASSEMBLY | ACT |
|
$760.93 | $715.89 | 1 | ||
| 6 | 878226T8 | FLYWHEEL ASSEMBLY | ACT |
|
$658.14 | $619.19 | 1 | ||
| 7 | 832075A21 | IGNITION STATOR KIT | 832075A4 | SS |
|
$402.99 | $376.56 | 1 | |
| 7 | 832074A11 | STATOR | 832074A5 | SS |
|
$405.21 | $387.33 | 1 | |
| 8 | 4013930 | SCREW (M5 x 30) | ACT | $2.90 | $2.83 | 4 | |||
| 9 | 854512T | TRIGGER | ACT | $152.33 | $143.46 | 1 | |||
| 10 | 56762 | TIE STRAP (4.00 Inches) | ACT | $0.50 | $0.49 | 3 | |||
| 11 | 93254 | SWIVEL BASE | ACT | $13.21 | $12.88 | 1 | |||
| 12 | 93421 | SWIVEL BALL | ACT | $14.20 | $13.85 | 1 | |||
| 13 | 893891T | STARTER MOTOR ASSEMBLY | 66015T1 | SS |
|
$412.35 | $394.09 | 1 | |
| 14 | 8M0034918 | COLLAR | 56703 | SS |
|
$9.30 | $9.07 | 2 | |
| 15 | 8M0043376 | STOP | 57247 | SS |
|
$46.00 | $45.17 | 2 | |
| 16 | 93388A1 | CABLE ASSEMBLY (6.00 Inches) Black | ACT | $13.21 | $12.88 | 1 | |||
| 17 | 69035 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel | ACT | $1.80 | $1.76 | 1 | |||
| 18 | 93388A8 | CABLE ASSEMBLY (12.5 Inchs) Black | ACT | $33.17 | $32.57 | 1 | |||
| 19 | 26992 | LOCKWASHER (.250) Stainle | ACT | $1.20 | $1.18 | 1 | |||
| 20 | 64015 | NUT (.250-20) | ACT | $2.81 | $2.75 | 1 | |||
| 21 | 8272822 | DECAL Warning High Voltage | ACT |
|
$13.80 | $13.46 | 1 | ||
| 22 | 13541 | PLUG Male | ACT |
|
$3.20 | $3.13 | 2 | ||
| 23 | 881865 | DECAL Caution-Start in Gear | ACT |
|
$8.20 | $8.00 | 1 |
