| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

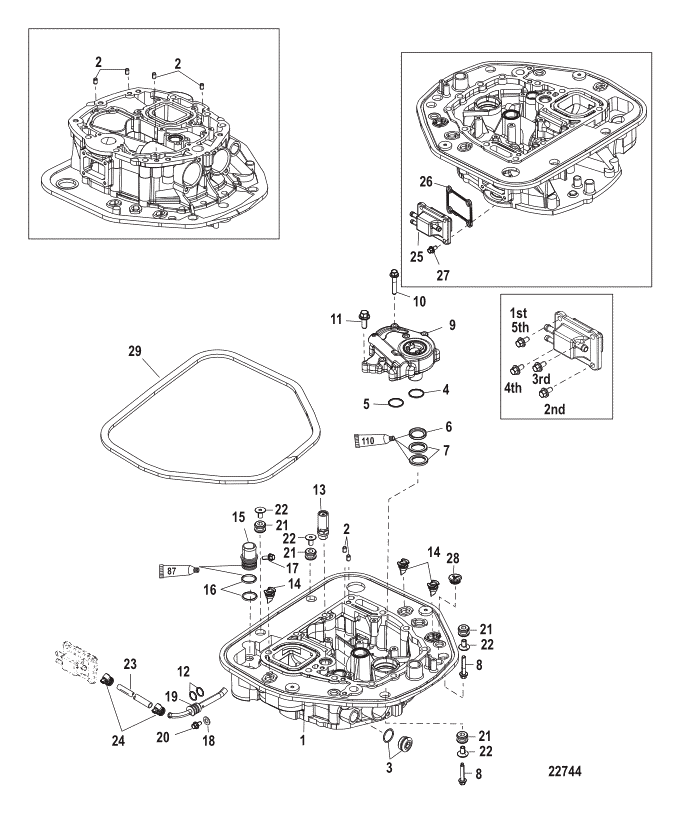

| 1 | 896689A02 | ADAPTER PLATE ASSEMBLY | 896689A01 | SS |
|
$2,521.21 | $2,311.25 | 1 | |
| 2 | 892228 | ----PIN Dowel | ACT | $4.50 | $4.39 | 6 | |||
| 3 | 896951 | ----PLUG (24 mm) | ACT | $16.40 | $16.00 | 1 | |||
| 4 | 897134 | ----O-RING (1.051 x 1.070) (Inlet) | ACT |
|
$2.30 | $2.25 | 1 | ||
| 5 | 897135 | ----O-RING (.864 x .070) (Outlet) | ACT |
|
$1.80 | $1.76 | 1 | ||
| 6 | 8M0033928 | ----SEAL Oil | 884461 | SS |
|
$19.30 | $18.82 | 1 | |
| 7 | 884462 | ----SEAL Water | ACT |
|
$17.80 | $17.36 | 2 | ||
| 8 | 897964 | SCREW (M6) | ACT | $6.70 | $6.54 | 4 | |||
| 9 | 892894T04 | PUMP ASSEMBLY Oil | ACT | $563.86 | $530.48 | 1 | |||
| 10 | 8M0103810 | SCREW (M6 x 45 MM) Stainless Steel | 88552545 | SS |
|
$4.50 | $4.39 | 4 | |
| 11 | 88552535 | SCREW (M6 x 35 MM) Stainl | ACT | $4.70 | $4.59 | 1 | |||
| 12 | 892446 | O-RING (14 X 1.78 MM) | ACT | $1.50 | $1.47 | 2 | |||
| 13 | 8M0062064 | CHECK VALVE ASSEMBLY | 884477A01 | REP |
|
$164.00 | $154.44 | 1 | |
| 14 | 888819002 | DRAIN Cowl | ACT | $1.40 | $1.37 | 3 | |||
| 15 | 896934A02 | FITTING ASSEMBLY Dump | ACT |
|
$17.70 | $17.26 | 1 | ||
| 16 | 26317 | ----O-RING (1.109 x .139) | ACT |
|
$4.30 | $4.20 | 2 | ||
| 17 | 8M0103805 | SCREW (M6 x 16 MM) Stainl | 88552516 | SS |
|
$2.50 | $2.44 | 1 | |
| 18 | 8M0214930 | WASHER (6.60 X 17.0 X 1.5 | 4002316 | SS |
|
$1.00 | $0.98 | 1 | |
| 19 | 896547001 | FITTING | ACT | $54.75 | $52.66 | 1 | |||
| 20 | 8M0103804 | SCREW (M6 x 12 MM) Stainl | 88552512 | SS |
|
$2.30 | $2.25 | 1 | |
| 21 | 896671 | GROMMET | ACT | $1.00 | $0.98 | 4 | |||
| 22 | 8M8023048 | BUSHING | 896670001 | SS |
|
$18.17 | $17.84 | 4 | |
| 23 | 8M0108349 | TUBING (.312) (70.00 Inches Bulk) (Cut to 21 Inches) | 830757130 | SS |
|
$64.75 | $62.28 | 1 | |
| 24 | 815504104 | CLAMP Worm Gear | ACT | $6.80 | $6.64 | 2 | |||
| 25 | 892562T01 | HOUSING Manifold | ACT |
|
$17.08 | $16.78 | 1 | ||
| 26 | 892117 | ----SEAL | ACT | $6.60 | $6.44 | 1 | |||
| 27 | 8M0103805 | SCREW (M6 x 16 MM) Stainl | 88552516 | SS |
|
$2.50 | $2.44 | 4 | |
| 28 | 897433001 | GROMMET | 897433 | SS |
|
$5.70 | $5.56 | 1 | |
| 29 | 896864001 | SEAL Adaptor Plate | ACT | $34.66 | $34.04 | 1 | |||
| - | 896142A07 | GASKET SET Powerhead | 896142A06 | SS |
|
$291.50 | $274.51 | 1 | |
| - | 8M0055433 | LONG BLOCK ASSEMBLY | 896499A07 | NLA |
|
$0.00 | $0.00 | 1 |
