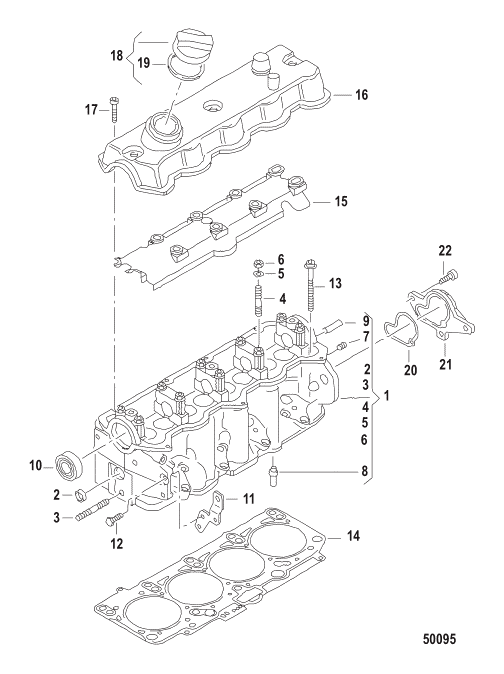

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0066851 | CYLINDER HEAD ASSEMBLY | NLA |  | $3,459.10 | $3,210.74 | 1 | ||
| 2 | 8M0068108 | PLUG 24 | ACT | $1.80 | $1.76 | 1 | |||
| 2 | 8M0068110 | PLUG 25 | ACT | $1.80 | $1.76 | 1 | |||
| 3 | 8M0068146 | STUD M10xM8x68 | ACT | $6.80 | $6.64 | 1 | |||
| 4 | 8M0066406 | STUD M8x56 | ACT | $7.20 | $7.03 | 10 | |||
| 5 | 8M0068098 | WASHER 8.4x15x1.6 | 8M0068097 | SS | | $0.40 | $0.40 | 10 | |
| 6 | 8M0068088 | NUT M8 | ACT | $1.20 | $1.18 | 10 | |||
| 7 | 8M0068400 | PLUG | ACT | $3.70 | $3.61 | 1 | |||
| 8 | 8M0066295 | GUIDE, VALVE 36.5MM/7MM | ACT | $91.33 | $87.85 | 8 | |||
| 9 | 8M0066377 | DOWEL PIN | ACT | $20.67 | $20.30 | 1 | |||
| 10 | 8M0066302 | SEAL | 8M0066303 | REP | | $50.00 | $48.10 | 1 | |
| 11 | 8M0066320 | BRACKET | ACT | $50.75 | $48.82 | 1 | |||
| 12 | 8M0068201 | SCREW M8x28 | ACT | $1.40 | $1.37 | 1 | |||
| 13 | 8M0067207 | SCREW M12x115 | ACT | $15.70 | $15.31 | 10 | |||
| 14 | 8M0066310 | GASKET, CYLINDER HEAD | ACT | $121.67 | $114.58 | AR | |||
| 14 | 8M0066311 | GASKET, CYLINDER HEAD | ACT | $121.67 | $114.58 | AR | |||
| 14 | 8M0066312 | GASKET, CYLINDER HEAD | ACT | $121.67 | $114.58 | AR | |||
| 15 | 8M0066317 | BAFFLE, OIL | ACT | $34.83 | $34.21 | 1 | |||
| 16 | 8M0066314 | COVER, CYLINDER HEAD | ACT | $271.50 | $255.68 | 1 | |||
| 17 | 8M0068242 | SCREW M6x22 | ACT | $1.20 | $1.18 | 7 | |||
| 18 | 8M0067236 | CAP | ACT | | $23.17 | $22.75 | 1 | ||
| 19 | 8M0067228 | ----SEAL | ACT | $5.50 | $5.37 | 1 | |||
| 20 | 8M0066351 | GASKET | ACT | $5.40 | $5.27 | 1 | |||
| 21 | 8M0066903 | COVER PLATE | ACT | $34.08 | $33.47 | 1 | |||
| 22 | 8M0068232 | SCREW M8x25 | ACT | $2.30 | $2.25 | 3 |
