| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

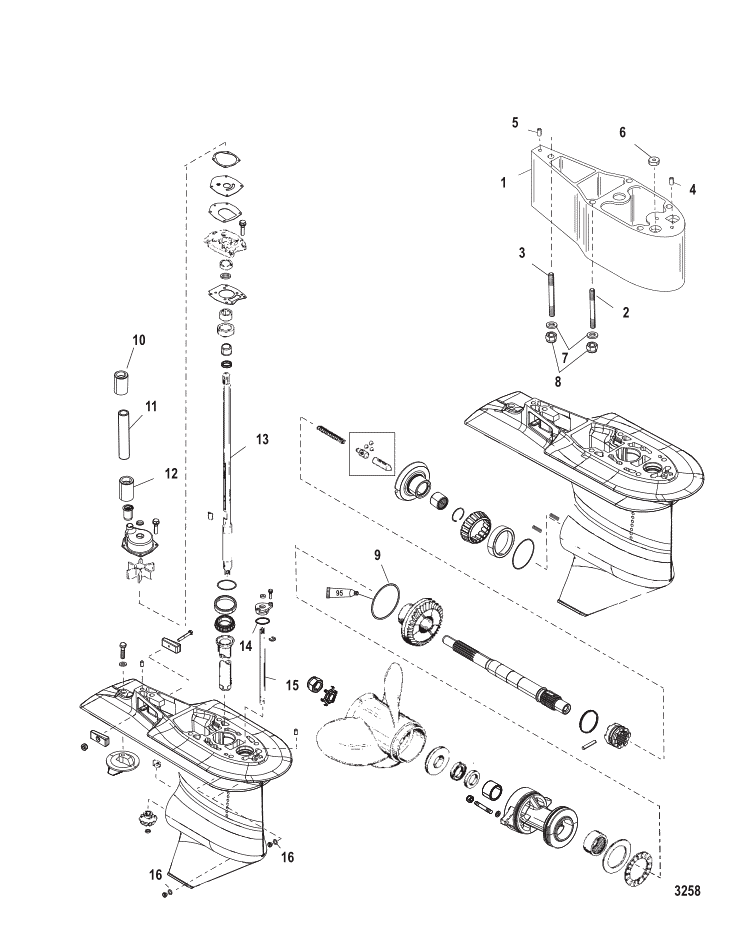

| - | 12092A18 | EXTENSION KIT Driveshaft - 5 Inch | ACT |
|
$1,089.86 | $999.10 | 1 | ||
| 1 | 12092A3 | ----SPACER KIT | ACT | $382.58 | $360.28 | 1 | |||
| 2 | 903503 | ----STUD (M10 x 190) | ACT | $25.50 | $25.04 | 4 | |||
| 3 | 903502 | ----STUD (M10 x 227) | ACT | $86.08 | $82.80 | 1 | |||
| 4 | 8M0084244 | ----PIN Dowel - With Hole (.375 x .625) | 43043 | SS |
|
$3.30 | $3.22 | 1 | |
| 5 | 43044 | ----PIN Dowel - Without Hole (.375 x .625) | ACT | $2.50 | $2.44 | 1 | |||
| 6 | 11289 | ----SPACER | ACT | $9.40 | $9.17 | 1 | |||
| 7 | 8M0214963 | ----WASHER (.406 x .750 x .10 | 856774 | SS |
|
$2.60 | $2.54 | 5 | |
| 8 | 40140 | ----NUT (M10) | ACT | $3.39 | $3.30 | 5 | |||
| 9 | 8M0214974 | ----O-RING (3.609 x .139) | 97386 | SS |
|
$8.01 | $7.81 | 1 | |
| 10 | 8M0204658 | ----SEAL | 43023 | SS |
|
$14.90 | $14.53 | 1 | |
| 11 | 8M4501430 | ----TUBE Water | 8289371 | SS |
|
$43.24 | $42.47 | 1 | |
| 12 | 430232 | ----SEAL | ACT | $11.90 | $11.61 | 1 | |||
| 13 | 875222A1 | ----DRIVESHAFT ASSEMBLY | ACT | $683.79 | $643.31 | 1 | |||
| 14 | 8M0204681 | ----O-RING (1.424 x .103) | 457101 | SS |
|
$3.79 | $3.69 | 1 | |
| 15 | 853908A1 | ----SHIFT SHAFT ASSEMBLY | ACT | $97.42 | $93.70 | 1 | |||
| 16 | 191833 | ----SEAL | NLA |
|
$1.45 | $1.42 | 3 |
