Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

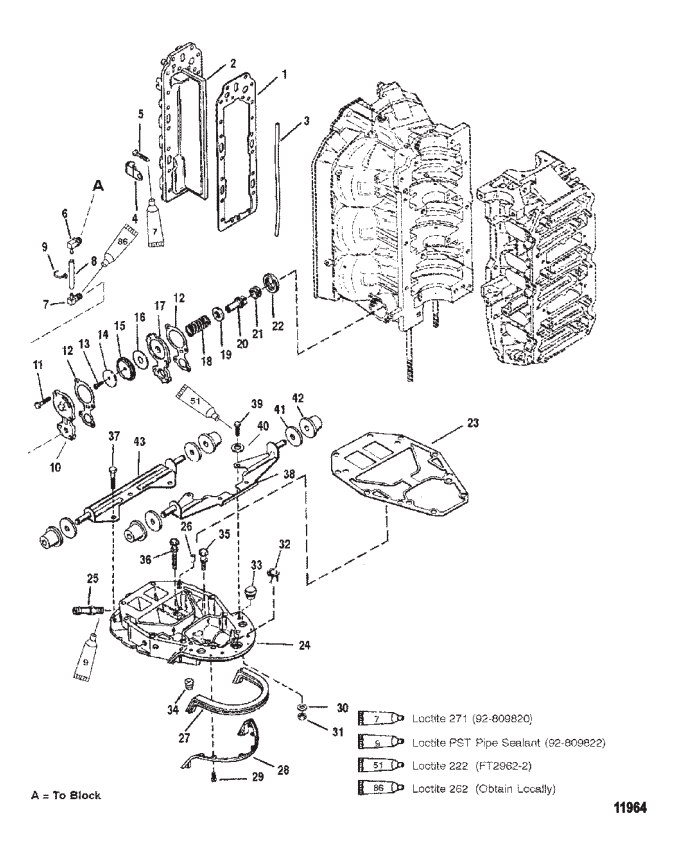

1 190503 GASKET ACT $29.00 $28.48 1
2 827323A2 PLATE Divider 8185622 SS $398.86 $381.25 1
3 814754 SEAL (12.50 Inches) ACT $11.10 $10.83 1
4 814634 CLAMP ACT $5.10 $4.98 4
5 8263561 SCREW AND WASHER (.312-18 x 1.500) 826356 SS $1.90 $1.86 20
6 8144301 FITTING (.500-14) 814430 SS $30.50 $29.95 1
7 920071 FITTING (.250-18) (90 DEGREES) 92007 SS $54.50 $52.42 1
8 8M0108355 HOSE (57.00 Inches Bulk) (Cut to 23.5 Inches) 830756109 SS $52.33 $50.55 1
9 816311T TIE STRAP (8.00 Inches) 816311 SS $0.59 $0.58 2
10 8M0039767 COVER 68729 SS $54.92 $52.82 1
11 74824 SCREW (.312-18 x 1.250) ACT $1.80 $1.76 4
12 78690002 GASKET 78690 SS $4.10 $4.00 2
13 69570 SCREW (#10-16 x .750) ACT $1.80 $1.76 1
14 76451 WASHER ACT $2.81 $2.75 1
15 144791 DIAPHRAGM 14479 SS $17.49 $17.19 1
16 16496 DEFLECTOR Water ACT $4.10 $4.00 1
17 16497A1 PLATE ACT $43.92 $43.13 1
18 64878 SPRING (Black) ACT $6.80 $6.64 1
19 85303 WASHER ACT $2.70 $2.64 1
20 14480 POPPET ACT $10.70 $10.44 1
21 64872 GROMMET ACT $3.60 $3.52 1
22 65848 CARRIER ACT $3.60 $3.52 1
23 991764 GASKET 991763 SS $20.99 $20.64 1
24 18260T2 PLATE ASSEMBLY Exhaust 18260A2 SS $551.14 $518.52 1
25 89772Q1 ----CONNECTOR (.125-27) (STRAIGHT) 897721 SS $8.39 $8.20 1
26 43044 ----PIN Dowel 20033 SS $2.50 $2.44 2
27 8M0043164 ----SEAL 8147011 SS $41.50 $40.75 1
28 680101 ----BRACKET ACT $11.20 $10.93 1
29 878608 ----SCREW (#10-16 x .500) 812832 SS $1.70 $1.66 8
30 20553 WASHER (.406 x .734 x .06 ACT $1.50 $1.47 6
31 69254 NUT ACT $7.30 $7.12 6
32 27132 BUSHING ACT $4.64 $4.55 1
33 8M0179867 GROMMET 19564 SS $7.40 $7.22 1
34 12602002 GROMMET 126021 SS $4.60 $4.49 1
34 19565002 GROMMET 19565 SS $30.92 $30.36 1
35 66727 SCREW (.312-18 x 1.250) ACT $3.00 $2.93 1
36 68783 SCREW (.312-18 x 2.50) ACT $6.70 $6.54 1
37 898833 SCREW (.375-16 x 3.50) 66725 SS $10.90 $10.63 3
38 812905T BRACKET ASSEMBLY 812905A3 SS $169.00 $159.15 1
39 90285 SCREW (.312-18 x .625) ACT $1.80 $1.76 4
40 56720 WASHER (.330 x .750 x .060) Stainless Steel ACT $1.80 $1.76 4
41 187031 WASHER ACT $4.99 $4.88 4
42 18778001 GROMMET 18778 SS $11.10 $10.83 4
43 18578T09 BRACKET ASSEMBLY Rear 18578A6 SS $162.32 $152.87 1
- 815791A92 GASKET SET Engine ACT $207.50 $195.41 1
- 812815R97 POWERHEAD ASSEMBLY 812815A92 SS/NLA $0.00 $0.00 1
- 812817R97 POWERHEAD ASSEMBLY 812817A92 SS/NLA $0.00 $0.00 1
- 823434R97 POWERHEAD ASSEMBLY 823434A93 SS/NLA $0.00 $0.00 1
- 823434R97 POWERHEAD ASSEMBLY 823434A93 SS/NLA $0.00 $0.00 1
- 812817R97 POWERHEAD ASSEMBLY 812817A92 SS/NLA $0.00 $0.00 1
- 813043R97 POWERHEAD ASSEMBLY 813043A94 SS/NLA $0.00 $0.00 1
