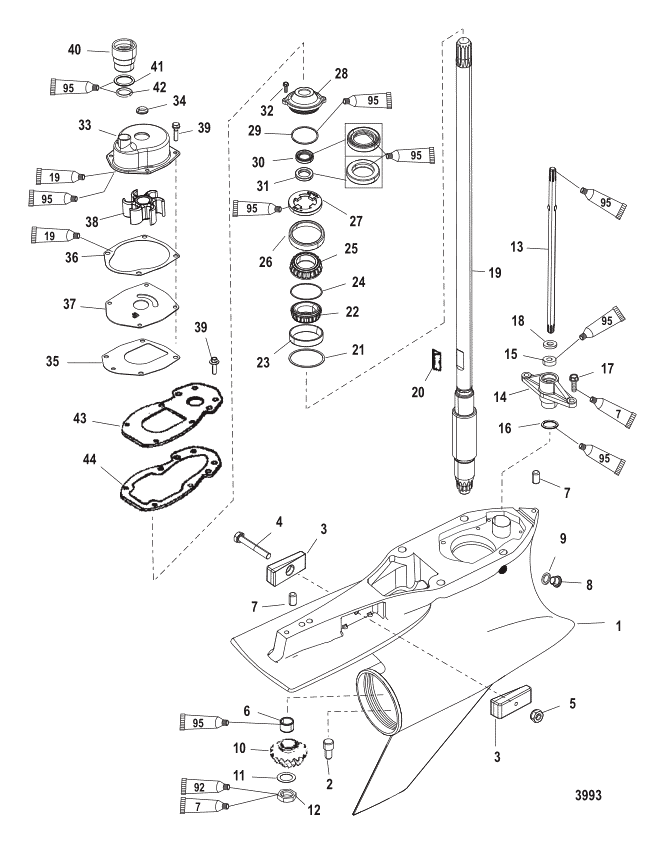

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 840306T14 | GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.62:1 Long Standard) | ACT | $10,665.00 | $9,551.47 | 1 | |||
| - | 840307T23 | GEAR HOUSING ASSEMBLY Complete (1.62:1 Long Standard)(Heavy Duty) | ACT | $10,575.00 | $9,468.31 | 1 | |||
| - | 840307T25 | GEAR HOUSING ASSEMBLY Complete (1.62:1 X-Long Standard) | ACT | $10,690.00 | $9,570.67 | 1 | |||
| - | 840307T31 | GEAR HOUSING ASSEMBLY Complete (1.62:1 XX-Long Standard) | NLA |  | $7,439.57 | $6,820.01 | 1 | ||
| - | 840306T16 | GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.75:1 Long Standard) | ACT | $10,675.00 | $9,557.87 | 1 | |||
| - | 840307T27 | GEAR HOUSING ASSEMBLY Complete (1.75:1 Long Standard)(Heavy Duty) | ACT | $10,565.00 | $9,461.91 | 1 | |||
| - | 840307T29 | GEAR HOUSING ASSEMBLY Complete (1.75:1 X-Long Standard) | ACT | $10,540.00 | $9,436.32 | 1 | |||
| - | 840307T33 | GEAR HOUSING ASSEMBLY Complete (1.75:1 XX-Long Standard) | ACT | $10,405.00 | $9,314.77 | 1 | |||
| - | 840307T22 | GEAR HOUSING ASSEMBLY Complete (1.62:1 Long Counter Rotation) | ACT | $11,380.00 | $10,191.22 | 1 | |||
| - | 840307T24 | GEAR HOUSING ASSEMBLY Complete (1.62:1 X-Long Counter Rotation) | ACT | $11,495.00 | $10,293.58 | 1 | |||
| - | 840307T30 | GEAR HOUSING ASSEMBLY Complete (1.62:1 XX-Long Counter Rotation) | NLA | | $8,062.08 | $7,388.47 | 1 | ||
| - | 840307T26 | GEAR HOUSING ASSEMBLY Complete (1.75:1 Long Counter Rotation) | ACT | $11,495.00 | $10,293.58 | 1 | |||
| - | 840307T28 | GEAR HOUSING ASSEMBLY Complete (1.75:1 X-Long Counter Rotation) | ACT | $11,760.00 | $10,530.29 | 1 | |||
| - | 840307T32 | GEAR HOUSING ASSEMBLY Complete (1.75:1 XX-Long Counter Rotation) | NLA | | $7,560.66 | $6,931.01 | 1 | ||
| 1 | 840306T3 | ----GEAR HOUSING ASSEMBLY Basic, With Torque Tab | ACT | | $5,295.00 | $4,852.07 | 1 | ||
| 1 | 840307T3 | ----GEAR HOUSING ASSEMBLY Basic | ACT | | $5,295.00 | $4,852.07 | 1 | ||
| 2 | 379721 | --------PIN | ACT | $3.50 | $3.42 | 1 | |||
| 3 | 826134Q | --------ANODE | ACT | $15.89 | $15.51 | 2 | |||
| 4 | 4000333 | --------SCREW (M6 x 40) | ACT | $3.90 | $3.81 | 1 | |||
| 5 | 401386 | --------NUT (M6) Stainless Steel | ACT | $4.90 | $4.78 | 1 | |||
| 6 | 42647A1 | --------BEARING ASSEMBLY Roller | ACT | $63.50 | $61.08 | 1 | |||
| 7 | 43044 | --------PIN Dowel - Without Hole (.375 x .625) | ACT | $2.40 | $2.35 | 2 | |||
| 8 | 79953Q04 | ----SCREW KIT (.375-16 x .250 | 79953Q2 | SS | | $7.19 | $7.03 | 1 | |
| 9 | 191833 | --------SEAL | ACT | $1.39 | $1.36 | 1 | |||
| 10 | NSS | --------NOT SOLD SEPARATE Pinion Gear | | $0.00 | $0.00 | 1 | |||
| 11 | 92721 | ----WASHER | ACT | $1.40 | $1.37 | 1 | |||
| 12 | 35921 | ----NUT (.625-18) | ACT | $7.70 | $7.51 | 1 | |||
| 13 | 824145 | ----SHIFT SHAFT | ACT | $87.25 | $83.92 | 1 | |||
| 14 | 848836A1 | ----BUSHING ASSEMBLY | ACT | | $54.61 | $53.02 | 1 | ||
| 15 | 8M0204708 | --------SEAL Oil | 8164641 | SS | | $16.30 | $15.90 | 1 | |
| 16 | 8M0214927 | --------O-RING (.799) | 36318 | SS | | $1.60 | $1.57 | 1 | |
| 17 | 82130016 | ----SCREW (M6 x 16) | ACT | $5.70 | $5.56 | 2 | |||
| 18 | 77674 | ----WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 19 | 881938 | ----DRIVESHAFT | ACT | | $439.00 | $419.62 | 1 | ||
| 19 | 881942 | ----DRIVESHAFT | ACT | | $409.07 | $391.02 | 1 | ||
| 20 | 8M0204723 | ----KEY | 43037 | SS | | $4.20 | $4.10 | 1 | |
| 21 | 8M0063268 | ----SHIM ASSEMBLY | 38657A1 | REP | | $29.67 | $29.13 | AR | |
| 22 | 8M0146553 | ----BEARING Tapered Roller | 48939A2 | SS | | $19.92 | $19.56 | 1 | |
| 23 | NSS | ----------------NOT SOLD SEPARATE Cup | | $0.00 | $0.00 | 1 | |||
| 24 | 8M0063267 | ----SHIM SET | 42637A1 | REP | | $26.67 | $26.19 | AR | |
| 25 | 8M0146566 | ----BEARING ASSEMBLY Roller/Cup | 36387A1 | SS | | $71.99 | $69.17 | 1 | |
| 26 | NSS | ----------------NOT SOLD SEPARATE Cup | | $0.00 | $0.00 | 1 | |||
| 27 | 8245191 | ----RETAINER | ACT | $6.70 | $6.54 | 1 | |||
| 28 | 8M0192207 | ----CARRIER ASSEMBLY | 840836A2 | SS | | $63.83 | $61.40 | 1 | |
| 29 | 8M0142854 | --------O-RING (2.175 x .175) | 90011 | SS | | $1.10 | $1.08 | 1 | |
| 30 | 8M0214939 | --------SEAL Oil | 66302 | SS | | $19.50 | $19.02 | 1 | |
| 31 | 8M0214939 | --------SEAL Oil | 66302 | SS | | $19.50 | $19.02 | 1 | |
| 32 | 82130016 | ----SCREW (M6 x 16) | ACT | $5.70 | $5.56 | 2 | |||
| 33 | 817275A1 | ----HOUSING KIT Water Pump | ACT | | $98.49 | $94.37 | 1 | ||
| 34 | 816575A2 | --------SEAL KIT | ACT | $10.49 | $10.24 | 1 | |||
| 35 | 430331 | --------GASKET | ACT | | $10.70 | $10.44 | 1 | ||
| 36 | 8172771 | --------GASKET | ACT | | $5.50 | $5.37 | 1 | ||
| 37 | 8M0204709 | ----FACEPLATE | 8172761 | SS | | $14.00 | $13.66 | 1 | |
| 38 | 43026T2 | ----IMPELLER | ACT | $34.99 | $34.21 | 1 | |||
| 39 | 82130020 | ----SCREW (M6 x 20) | ACT | $2.60 | $2.54 | 6 | |||
| 40 | 832942A1 | ----COUPLING ASSEMBLY | ACT | | $27.42 | $26.93 | 1 | ||
| 41 | 8M0204645 | --------O-RING (.796 x .139) | 21836 | SS | | $2.30 | $2.25 | 1 | |
| 42 | 8M0204654 | --------O-RING (1.046) | 35027 | SS | | $1.60 | $1.57 | 1 | |
| 43 | 848834 | ----PLATE Water Passage | ACT | $68.40 | $66.39 | 1 | |||
| 44 | 848835 | ----GASKET | ACT | $12.08 | $11.91 | 1 | |||
| - | 816575A6 | SEAL KIT Gear Housing | ACT | $86.58 | $83.28 | 1 | |||
| - | 817275A5 | REBUILD KIT Water Pump | ACT | $155.99 | $146.67 | 1 |
