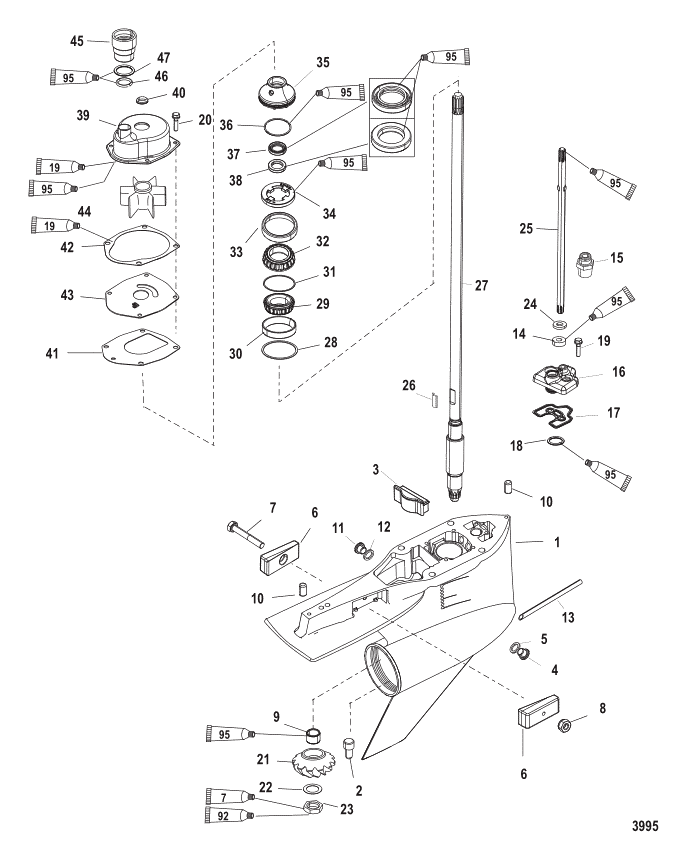

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 842004T26 | GEAR HOUSING ASSEMBLY Complete | 859399T39 | SS |  | $9,715.00 | $8,905.29 | 1 | |
| - | 842004T28 | GEAR HOUSING ASSEMBLY Complete | 859399T25 | SS | | $9,665.00 | $8,859.45 | 1 | |
| - | 842004T27 | GEAR HOUSING ASSEMBLY Complete | 859399T40 | SS | | $10,010.00 | $8,962.90 | 1 | |
| - | 8M0131315 | GEAR HOUSING ASSEMBLY Complete | 859399A26 | SS | | $10,440.00 | $9,346.75 | 1 | |
| - | 842004T10 | GEAR HOUSING ASSEMBLY Complete | 859399T41 | SS/NLA | | $7,113.19 | $6,520.82 | 1 | |
| - | 842004T24 | GEAR HOUSING ASSEMBLY Complete | 859399T43 | SS | | $9,905.00 | $9,075.53 | 1 | |
| - | 842004T18 | GEAR HOUSING ASSEMBLY Complete | 859399T37 | SS/NLA | | $7,716.05 | $7,071.33 | 1 | |
| - | 842004T17 | GEAR HOUSING ASSEMBLY Complete | 859399T44 | SS | | $11,445.00 | $10,248.80 | 1 | |
| - | 842004T19 | GEAR HOUSING ASSEMBLY Complete | 859399T38 | SS/NLA | | $6,394.07 | $5,859.81 | 1 | |
| 1 | 859399T24 | ----GEAR HOUSING ASSEMBLY Complete (Basic) | ACT | | $2,680.00 | $2,455.51 | 1 | ||
| 2 | 379721 | --------PIN | ACT | $3.50 | $3.42 | 1 | |||
| 3 | 821526001 | --------FILLER BLOCK | 821526 | SS | | $18.30 | $17.85 | 1 | |
| 4 | 79953Q04 | --------SCREW KIT (.375-16 x .250 | 79953Q2 | SS | | $7.19 | $7.03 | 1 | |
| 5 | 191833 | ------------SEAL | ACT | | $1.39 | $1.36 | 1 | ||
| 6 | 826134Q | --------ANODE | ACT | $15.89 | $15.51 | 2 | |||
| 7 | 4000333 | --------SCREW (M6 x 40) | ACT | $3.90 | $3.81 | 1 | |||
| 8 | 401386 | --------NUT (M6) Stainless Steel | ACT | $4.90 | $4.78 | 1 | |||
| 9 | 42647A1 | --------BEARING ASSEMBLY Roller | ACT | $63.50 | $61.08 | 1 | |||
| 10 | 43044 | --------PIN Dowel - Without Hole (.375 x .625) | ACT | $2.40 | $2.35 | 2 | |||
| 11 | 79953Q04 | --------SCREW KIT (.375-16 x .250 | 79953Q2 | SS | | $7.19 | $7.03 | 1 | |
| 12 | 191833 | ------------SEAL | ACT | | $1.39 | $1.36 | 1 | ||
| 13 | 859402 | --------PITOT TUBE | ACT | $32.33 | $31.75 | 1 | |||
| 14 | 8M0204708 | --------SEAL Oil | 8164641 | SS | | $16.30 | $15.90 | 1 | |
| 15 | 881866 | --------FITTING | ACT | $7.30 | $7.12 | 1 | |||
| 16 | 858934 | --------COVER | ACT | $121.75 | $114.66 | 1 | |||
| 17 | 858935 | --------GASKET | ACT | | $6.60 | $6.44 | 1 | ||
| 18 | 8M0214927 | --------O-RING (.799) | 36318 | SS | | $1.60 | $1.57 | 2 | |
| 19 | 82130016 | --------SCREW (M6 x 16) | ACT | $5.70 | $5.56 | 2 | |||
| 20 | 82130016 | ----SCREW (M6 x 16) | ACT | $5.70 | $5.56 | 4 | |||
| 21 | NSS | --------NOT SOLD SEPARATE Pinion Gear | | $0.00 | $0.00 | 1 | |||
| 22 | 92721 | ----WASHER | ACT | $1.40 | $1.37 | 1 | |||
| 23 | 35921 | ----NUT (.625-18) | ACT | $7.70 | $7.51 | 1 | |||
| 24 | 77674 | ----WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 25 | 824145 | ----SHIFT SHAFT | ACT | $87.25 | $83.92 | 1 | |||
| 26 | 8M0204723 | ----KEY | 43037 | SS | | $4.20 | $4.10 | 1 | |
| 27 | 881942 | ----DRIVESHAFT | ACT | | $409.07 | $391.02 | 1 | ||
| 27 | 881943 | ----DRIVESHAFT | ACT | | $366.67 | $330.56 | 1 | ||
| 28 | 8M0063268 | ----SHIM ASSEMBLY | 38657A1 | REP | | $29.67 | $29.13 | AR | |
| 29 | 8M0146553 | ----BEARING Tapered Roller | 48939A2 | SS | | $19.92 | $19.56 | 1 | |
| 30 | NSS | ----------------NOT SOLD SEPARATE Cup | | $0.00 | $0.00 | 1 | |||
| 31 | 8M0063267 | ----SHIM SET | 42637A1 | REP | | $26.67 | $26.19 | AR | |
| 32 | 8M0146566 | ----BEARING ASSEMBLY Roller/Cup | 36387A1 | SS | | $71.99 | $69.17 | 1 | |
| 33 | NSS | ----------------NOT SOLD SEPARATE Cup | | $0.00 | $0.00 | 1 | |||
| 34 | 8245191 | ----RETAINER | ACT | $6.70 | $6.54 | 1 | |||
| 35 | 8M0214948 | ----CARRIER ASSEMBLY | 807929A1 | SS | | $45.99 | $45.09 | 1 | |
| 36 | 8M0142854 | --------O-RING (2.175 x .175) | 90011 | SS | | $1.10 | $1.08 | 1 | |
| 37 | 8M0214939 | --------SEAL Oil | 66302 | SS | | $19.50 | $19.02 | 1 | |
| 38 | 8M0214939 | --------SEAL Oil | 66302 | SS | | $19.50 | $19.02 | 1 | |
| 39 | 817275A5 | ----REBUILD KIT Water Pump | ACT | | $155.99 | $146.67 | 1 | ||
| 40 | 816575A2 | --------SEAL KIT | ACT | | $10.49 | $10.24 | 1 | ||
| 41 | 430331 | --------GASKET | ACT | | $10.70 | $10.44 | 1 | ||
| 42 | 8172771 | --------GASKET | ACT | | $5.50 | $5.37 | 1 | ||
| 43 | 8M0204709 | ----FACEPLATE | 8172761 | SS | | $14.00 | $13.66 | 1 | |
| 44 | 43026T2 | ----IMPELLER | ACT | | $34.99 | $34.21 | 1 | ||
| 45 | 832942A1 | ----COUPLING ASSEMBLY | ACT | | $27.42 | $26.93 | 1 | ||
| 46 | 8M0204645 | --------O-RING (.796 x .139) | 21836 | SS | | $2.30 | $2.25 | 1 | |
| 47 | 8M0204654 | --------O-RING (1.046) | 35027 | SS | | $1.60 | $1.57 | 1 | |
| - | 816575A6 | SEAL KIT Gear Housing | ACT | $86.58 | $83.28 | 1 | |||
| - | 816575A4 | SEAL KIT Gear Housing | ACT | | $46.25 | $45.42 | 1 | ||
| - | 817275A5 | REBUILD KIT Water Pump | ACT | $155.99 | $146.67 | 1 |
