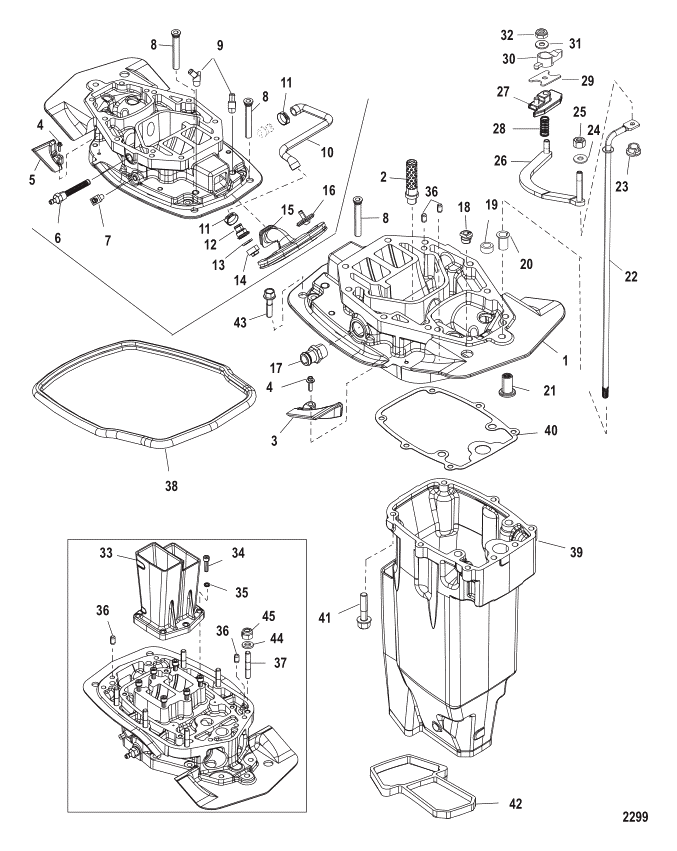

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 841110T02 | PLATE ASSEMBLY Exhaust | ACT |  | $1,817.93 | $1,666.54 | 1 | ||
| 2 | NSS | --------NOT SOLD SEPARATE Strainer | | $0.00 | $0.00 | 1 | |||
| 3 | 841180 | FILLER BLOCK (Starboard) | NLA | | $60.64 | $58.38 | 1 | ||
| 4 | 82130025 | SCREW (M6 x 25) | ACT | $3.90 | $3.81 | 2 | |||
| 5 | 841181 | FILLER BLOCK (Port) | NLA | | $50.68 | $48.74 | 1 | ||
| 6 | 8348084 | STRAINER | ACT | $20.42 | $20.05 | 1 | |||
| 7 | 148671 | ELBOW | NLA | | $165.05 | $156.02 | 1 | ||
| 8 | 817519A1 | CHECK VALVE ASSEMBLY Drain | ACT | $15.80 | $15.41 | 2 | |||
| 9 | 8167811 | ELBOW (45 Degree) | ACT | $15.10 | $14.73 | 2 | |||
| 10 | 891583 | HOSE Flush | NLA | | $40.28 | $39.48 | 1 | ||
| 11 | 863821 | CLAMP | ACT | | $3.12 | $3.08 | 2 | ||
| 11 | 816311T | TIE STRAP (8.00 Inches) | 816311 | SS | | $0.59 | $0.58 | 2 | |
| 12 | 821952 | FITTING | ACT | $15.10 | $14.73 | 1 | |||
| 13 | 821915 | WASHER | ACT | $4.00 | $3.91 | 1 | |||
| 14 | 821908 | PLUG | ACT | $7.10 | $6.93 | 1 | |||
| 15 | 8503064 | BOOT Idle Exhaust | ACT | $66.50 | $63.96 | 1 | |||
| 16 | 8M0077650 | FITTING Tell-Tale | 821904 | SS | | $16.75 | $16.45 | 1 | |
| 17 | 832076A1 | FITTING ASSEMBLY Flush | ACT | $52.08 | $50.10 | 1 | |||
| 18 | 12602002 | GROMMET | ACT | $4.40 | $4.30 | 1 | |||
| 19 | 840193 | SPACER | ACT | $11.66 | $11.50 | 2 | |||
| 20 | 48237 | BUSHING | ACT | $2.17 | $2.13 | 1 | |||
| 21 | 43585 | COUPLING | ACT | $30.58 | $30.03 | 1 | |||
| 22 | 8M0036408 | SHIFT SHAFT Upper | 8240701 | SS | | $180.67 | $170.14 | 1 | |
| 23 | 42994 | BUSHING | ACT | $3.10 | $3.03 | 1 | |||
| 24 | 35459 | WASHER | ACT | $1.60 | $1.57 | 1 | |||
| 25 | 401386 | NUT (M6) Stainless Steel | ACT | $4.90 | $4.78 | 1 | |||
| 26 | 67073A1 | LINK ROD ASSEMBLY | ACT | $42.33 | $41.57 | 1 | |||
| 27 | 814284003 | GUIDE BLOCK | NLA | | $10.21 | $10.02 | 1 | ||
| 28 | 20099 | SPRING | ACT | $5.30 | $5.17 | 1 | |||
| 29 | 52100 | WEAR PLATE | ACT | $9.30 | $9.07 | 1 | |||
| 30 | 8M0036768 | LATCH | 38279 | SS | | $7.30 | $7.12 | 1 | |
| 31 | 35462 | WASHER (.2656 x .625 x .0 | ACT | $1.70 | $1.66 | 1 | |||
| 32 | 826709109 | NUT (.250-28) Stainless S | ACT | $3.50 | $3.42 | 1 | |||
| 33 | 841140T02 | DIFFUSER Exhaust | ACT | $213.07 | $203.61 | 1 | |||
| 34 | 842790 | SCREW (M8 x 30) | NLA | | $9.63 | $9.45 | 6 | ||
| 35 | 822714 | WASHER | ACT | $16.41 | $16.17 | 6 | |||
| 36 | 43044 | PIN Dowel - Without Hole (.375 x .625) | ACT | $2.40 | $2.35 | 4 | |||
| 37 | 903509 | STUD (M10 x 1.5 x 64) | ACT | $17.17 | $16.86 | 6 | |||
| 38 | 8M0043157 | SEAL | 8238051 | SS | | $67.42 | $64.85 | 1 | |
| 39 | 841145T | TUBE Exhaust | ACT | $986.66 | $927.98 | 1 | |||
| 40 | 843151001 | GASKET | NLA | | $8.28 | $8.10 | 1 | ||
| 41 | 81893435 | SCREW (M8 x 35) | ACT | $3.80 | $3.71 | 4 | |||
| 42 | 8329321 | SEAL | ACT | $37.33 | $36.66 | 1 | |||
| 43 | 81893435 | SCREW (M8 x 35) | ACT | $3.80 | $3.71 | 6 | |||
| 44 | 8M0214963 | WASHER (.406 x .750 x .10 | 856774 | SS | | $2.50 | $2.44 | 6 | |
| 45 | 4013610 | NUT (M10) Stainless Steel | ACT | $7.50 | $7.32 | 6 | |||
| - | 843151A05 | GASKET SET | NLA | | $210.42 | $194.64 | 1 |
