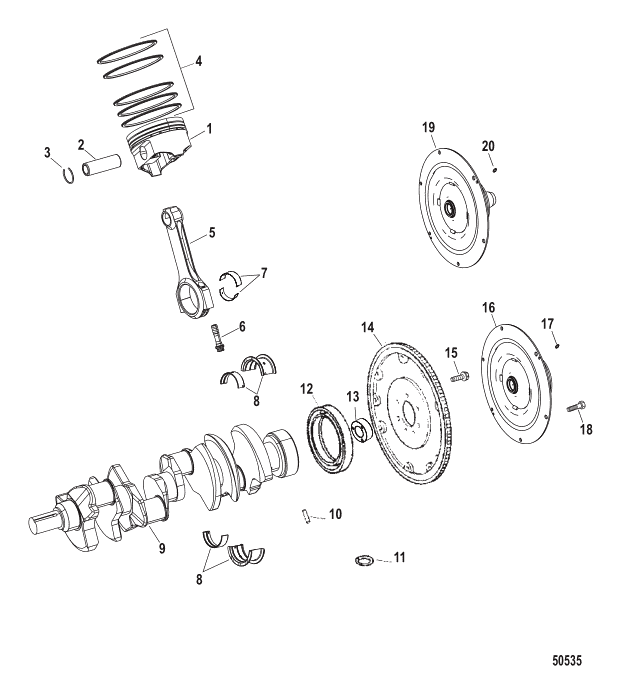

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0064630 | PISTON ASSY-STD | ACT |
|
$596.78 | $561.29 | 8 | ||
| 2 | 843006T | ----PIN-PISTON | ACT |
|
$39.85 | $39.29 | 8 | ||
| 3 | 843007 | ----CIRCLIP | ACT |
|
$19.90 | $19.61 | 16 | ||
| 4 | 843008A01 | RING SET-STD | ACT |
|
$122.50 | $117.06 | 8 | ||
| 5 | 8M8020322 | CONN ROD ASSY | ACT |
|
$356.51 | $340.67 | 8 | ||
| 6 | 8M0000838 | ----SCREW | ACT |
|
$36.88 | $36.36 | 16 | ||
| 7 | 8M0030217 | BEARING SET-STD | ACT |
|
$50.99 | $49.01 | 8 | ||
| 7 | 8M0030218 | BRG SET-.001 OS | ACT | $44.49 | $43.54 | AR | |||
| 7 | 8M0030216 | BRG SET-.001 US | ACT | $42.99 | $42.14 | AR | |||
| 8 | 8M0051198 | BEARING KIT-STD | 842400 | SS |
|
$406.06 | $388.03 | 1 | |
| 8 | 8M0053743 | BRG KIT-.001 OS | 842401 | SS |
|
$336.29 | $321.35 | AR | |
| 8 | 842402 | BRG KIT-.001 US | ACT | $382.99 | $360.68 | AR | |||
| 9 | 8M0064632 | CRANKSHAFT-ASSY | ACT |
|
$0.00 | $0.00 | 1 | ||
| 10 | 43504 | PIN-DOWEL | ACT |
|
$10.69 | $10.44 | 1 | ||
| 11 | 69756 | O RING Number 5 Bearing Cap Oil Hole | ACT |
|
$3.59 | $3.50 | 1 | ||
| 12 | 811554 | SEAL Oil | ACT |
|
$115.49 | $108.77 | 1 | ||
| 13 | 823108 | BUSHING | ACT |
|
$131.08 | $125.26 | 1 | ||
| 14 | 843374T1 | FLYWHEEL | ACT |
|
$653.99 | $614.95 | 1 | ||
| 15 | 8M0214958 | SCREW | 845757 | SS |
|
$5.89 | $5.76 | 6 | |
| 16 | 8M0098795 | COUPLER ASSY | 861523A9 | SS |
|
$744.49 | $744.49 | 1 | |
| 16 | 8M0098797 | COUPLER ASSY | 861523A18 | SS |
|
$1,455.99 | $1,334.68 | OPT | |
| 17 | 8M0169590 | ----FITTING | 49099 | SS |
|
$4.59 | $4.49 | 2 | |
| 18 | 863480 | SCREW | ACT |
|
$3.79 | $3.69 | 6 | ||
| 19 | 8M0098796 | COUPLER ASSY | 861523A20 | SS |
|
$1,049.99 | $962.56 | 1 | |
| 20 | 8M0169589 | ----FITTING | 74036 | SS |
|
$4.79 | $4.69 | 1 | |
| - | 8M0065565 | PARTIAL-565 | ACT | $30,417.44 | $27,235.21 | 1 |
