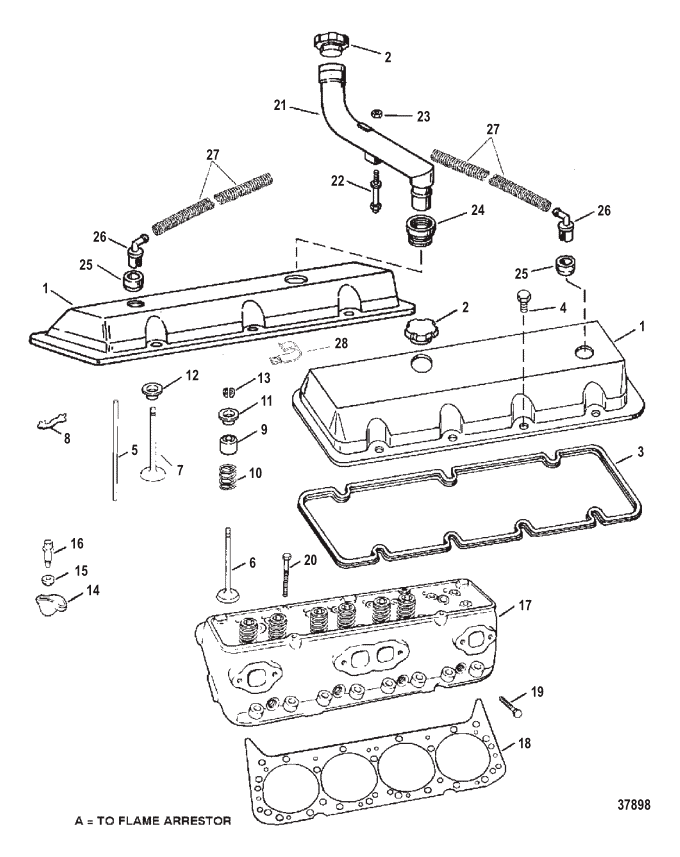

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0238344 | COVER-ROCKER Rocker | 850462 |
|
$761.49 | $693.11 | 2 | ||
| 2 | 811569 | CAP-OIL FILL | NLA |
|
$0.00 | $0.00 | 2 | ||
| 3 | 8M0092920 | GASKET | 811588 | SS |
|
$126.99 | $114.35 | 2 | |
| 4 | 811589 | SCREW (1/4-20 x 7/8 in.) | ACT | $18.19 | $17.84 | 14 | |||
| 5 | 850468 | PUSH ROD | NLA |
|
$0.00 | $0.00 | 8 | ||
| 5 | 850469 | PUSH ROD | NLA |
|
$0.00 | $0.00 | 8 | ||
| 6 | 814506 | VALVE-EXHAUST | NLA |
|
$0.00 | $0.00 | 8 | ||
| 6 | 814507001 | ORD 814507001 | 814507 | NLA |
|
$0.00 | $0.00 | AR | |
| 7 | 49134 | VALVE | NLA |
|
$0.00 | $0.00 | 8 | ||
| 8 | 811585 | GUIDE Push Rod | NLA |
|
$0.00 | $0.00 | 8 | ||
| 9 | 811545 | SEAL | ACT | $34.49 | $33.83 | 16 | |||
| 10 | 850465T | SPRING-VALVE | 850465 | SS |
|
$45.99 | $45.19 | 16 | |
| 11 | 850463 | ROTATOR | ACT |
|
$43.49 | $42.64 | 8 | ||
| 12 | 850464 | CAP | ACT |
|
$19.99 | $19.56 | 8 | ||
| 13 | 54530 | KEY | ACT | $6.89 | $6.73 | 32 | |||
| 14 | 850471 | ARM-ROCKER | NLA |
|
$0.00 | $0.00 | 16 | ||
| 15 | 8M0112788 | ORD 811591T | 850472 | REP |
|
$158.42 | $142.83 | 16 | |
| 16 | 811593 | BOLT | ACT | $18.09 | $17.65 | 16 | |||
| 17 | 883492R1 | NLA ORD 883492R 1 Cylinder | 827656 | NLA |
|
$0.00 | $0.00 | 2 | |
| 18 | 879150141 | GASKET | 850470 | SS |
|
$92.99 | $87.50 | 2 | |
| 19 | 8M0102366 | SCREW | 49106 | SS |
|
$199.99 | $180.23 | 8 | |
| 20 | 8M0102366 | SCREW | 49105 | SS |
|
$199.99 | $180.23 | 24 | |
| 21 | 807131T | TUBE-OIL FILL Oil Fill | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 805706 | STUD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 826709109 | NUT | 35045 | SS |
|
$3.59 | $3.50 | 1 | |
| 24 | 805622 | SEAL | ACT | $38.99 | $38.22 | 1 | |||
| 25 | 811553 | GROMMET | ACT | $83.49 | $78.40 | 2 | |||
| 26 | 97850T | ELBOW-BREATHER Breather | 97850 | SS |
|
$5.69 | $5.56 | 2 | |
| 27 | 8M0086022 | TUBING-13.5 INCH Breather | 1589418 | SS |
|
$36.49 | $35.68 | 2 | |
| 28 | 8M0024808 | CLIP | 642351 | SS |
|
$8.19 | $8.00 | 2 | |
| - | 850470A96 | GASKET SET Overhaul | ACT |
|
$1,076.49 | $964.17 | 1 |
