| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

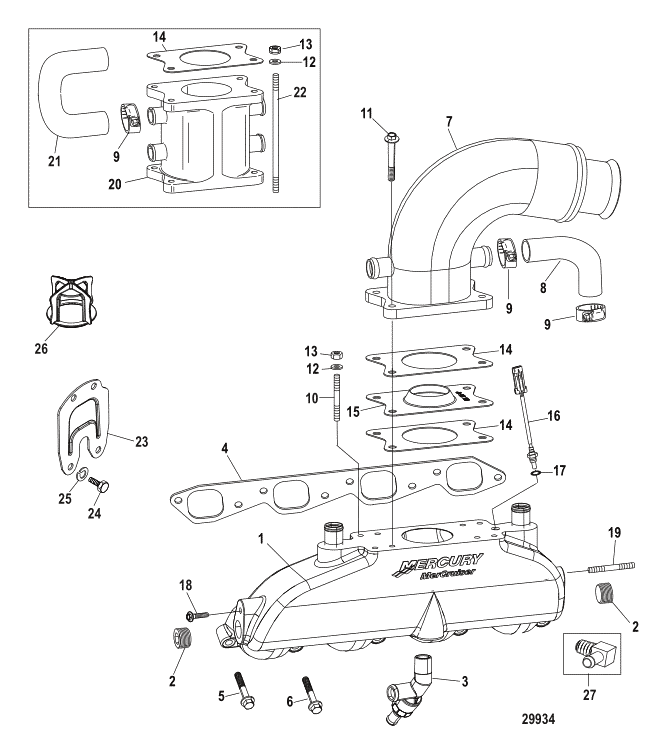

| 1 | 866178T01 | MANIFOLD ASSEMBLY Cast-Iron Alloy Exhaust | ACT |
|
$813.99 | $813.99 | 2 | ||
| 2 | 12524 | ----PLUG (.375-18 x .475) Brass | ACT | $5.10 | $4.98 | 1 | |||
| 3 | 865341A03 | FITTING ASSEMBLY Drain - Stainless Steel | ACT |
|
$71.08 | $68.37 | 1 | ||
| 3 | 865828A02 | FITTING ASSEMBLY Drain | ACT |
|
$67.00 | $64.45 | 1 | ||
| 4 | 46820 | GASKET Exhaust Manifold to Cylinder Head | ACT | $24.25 | $23.91 | 2 | |||
| 5 | 40011151 | SCREW (M8 x 35) Stainless | ACT | $6.90 | $6.73 | 8 | |||
| 6 | 40011158 | SCREW (M8 x 70) Stainless Steel | ACT | $8.90 | $8.68 | 8 | |||
| 7 | 865331A02 | ELBOW Exhaust | ACT |
|
$959.07 | $902.30 | 2 | ||
| 7 | 865332A02 | ELBOW Black Exhaust | ACT |
|
$1,508.79 | $1,383.14 | 2 | ||
| 8 | 863095 | HOSE Elbow to Manifold | ACT | $40.00 | $39.28 | 4 | |||
| 9 | 815504216 | CLAMP Worm Gear (1.56 Diameter) | ACT | $18.70 | $18.24 | 8 | |||
| 10 | 8204511 | STUD (M8 x 55) | ACT | $8.80 | $8.59 | 3 | |||
| 11 | 4010725 | SCREW (M8 x 25) | ACT | $5.80 | $5.66 | 8 | |||
| 12 | 8M0207778 | WASHER | 12038 | SS |
|
$10.10 | $9.85 | 8 | |
| 13 | 4002030 | NUT (M8) | ACT | $7.59 | $7.42 | 8 | |||
| 14 | 862356 | GASKET Elbow to Manifold | ACT | $13.60 | $13.33 | 4 | |||
| 15 | 8M2000433 | TURBULATOR PLATE ASSY With Gaskets Exhaust | ACT | $86.49 | $83.55 | 2 | |||
| 16 | 8M0148668 | SENSOR ASSEMBLY Temperature | 885342002 | SS |
|
$47.25 | $46.40 | 1 | |
| 17 | 627021 | ----O-RING (.301 x .070) | ACT | $1.69 | $1.65 | 1 | |||
| 18 | 4010716 | SCREW (M8 x 16) | ACT | $4.50 | $4.39 | 1 | |||
| 19 | 424632 | STUD (M8 x 37.1) | ACT | $16.50 | $16.09 | 1 | |||
| 20 | 8M0124066 | RISER (6 Inch) | ACT | $573.43 | $539.49 | 2 | |||
| 21 | 863102 | HOSE | ACT | $31.67 | $31.10 | 4 | |||
| 22 | 863121 | STUD (M8 x 194) | ACT | $14.00 | $13.66 | 8 | |||
| NS | 8M0074364 | CAP Hose Clamp End | ACT | $3.30 | $3.22 | 8 | |||
| 23 | 861776A2 | PLATE KIT | ACT | $116.67 | $109.87 | 1 | |||
| 24 | 8M0113180 | SCREW (.375-16 x 1.00) | ACT | $5.10 | $4.98 | 4 | |||
| 25 | 41471 | LOCKWASHER (.375) | ACT | $2.30 | $2.25 | 4 | |||
| 26 | 860222A1 | RESONATOR Exhaust | ACT | $73.00 | $70.22 | 1 | |||
| 27 | 8M2000159 | ELBOW | ACT | $19.90 | $19.41 | 1 |
