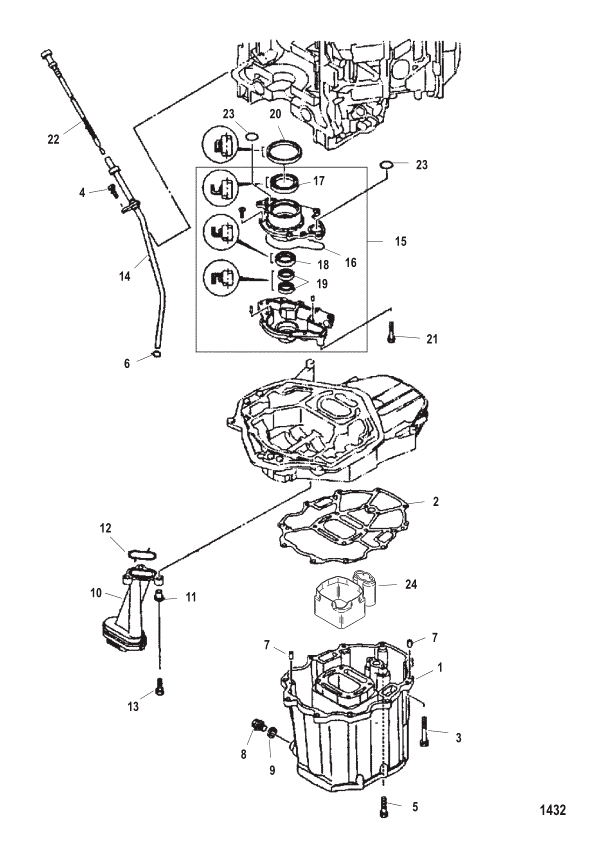

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 888675T | PAN Oil | ACT | $558.64 | $525.58 | 1 | |||
| 2 | 888658008 | GASKET | 8886585 | SS |  | $86.00 | $82.72 | 1 | |
| 2 | 888658008 | GASKET | ACT | | $86.00 | $82.72 | 1 | ||
| 3 | 8041594 | BOLT | NLA | | $3.78 | $3.69 | 10 | ||
| 4 | 804604 | BOLT (M6 x 20) | NLA | | $2.00 | $1.96 | 1 | ||
| 5 | 82127335 | SCREW (M8 x 35 MM) | ACT | $5.00 | $4.88 | 2 | |||
| 6 | 804093 | O-RING | ACT | $5.40 | $5.27 | 1 | |||
| 7 | 23784 | PIN Dowel | ACT | $5.00 | $4.88 | 2 | |||
| 8 | 825953 | PLUG (M14 x 12) | NLA | | $3.89 | $3.81 | 1 | ||
| 9 | 8886586 | GASKET | NLA | | $3.30 | $3.22 | 1 | ||
| 10 | 888676T | STRAINER Oil | NLA | | $68.17 | $65.57 | 1 | ||
| 11 | 85281412 | ----COLLAR | NLA | | $2.84 | $2.77 | 3 | ||
| 12 | 888677 | ----SEAL | ACT | $15.90 | $15.51 | 1 | |||
| 13 | 8041595 | BOLT | NLA | | $0.74 | $0.73 | 3 | ||
| 14 | 888679 | DIPSTICK TUBE | NLA | | $80.67 | $77.61 | 1 | ||
| 15 | 888677T02 | PUMP ASSEMBLY Oil | 888677T1 | SS/NLA | | $759.22 | $714.29 | 1 | |
| 16 | 8886587 | ----GASKET | ACT | $35.08 | $34.45 | 1 | |||
| 17 | 8886771 | ----SEAL Oil | ACT | $66.58 | $64.04 | 1 | |||
| 18 | 8886772 | ----SEAL Oil | ACT | $54.42 | $52.34 | 1 | |||
| 19 | 8886773 | ----SEAL Oil | NLA | | $35.44 | $34.80 | 2 | ||
| 20 | 8886774 | SEAL | ACT | $36.33 | $35.68 | 1 | |||
| 21 | 824832010 | BOLT | NLA | | $2.10 | $2.05 | 4 | ||
| 22 | 888678 | DIPSTICK | NLA | | $42.79 | $42.01 | 1 | ||
| 22 | 888678001 | DIPSTICK | NLA | | $39.64 | $38.92 | 1 | ||
| 23 | 887812 | O-RING | ACT | $4.70 | $4.59 | 2 | |||
| 24 | 891746 | SEAL Rubber | ACT | | $94.83 | $91.22 | 1 | ||
| - | 887810A03 | GASKET SET Powerhead | NLA | | $725.81 | $668.92 | 1 | ||
| - | 887810A04 | GASKET SET Powerhead | ACT | | $1,003.79 | $920.20 | 1 | ||
| - | 887810A05 | GASKET SET Powerhead | NLA | | $894.90 | $841.93 | 1 | ||
| - | 888658A03 | GASKET SET Lower Unit | NLA | | $399.00 | $375.74 | 1 | ||
| - | 888658A04 | GASKET SET Lower Unit | NLA | | $400.22 | $376.90 | 1 | ||
| - | 885225T07 | POWERHEAD ASSEMBLY | 885225T03 | SS/NLA | | $16,005.00 | $14,334.88 | 1 | |
| - | 885225T07 | POWERHEAD ASSEMBLY | 885225T05 | SS/NLA | | $16,005.00 | $14,334.88 | 1 | |
| - | 885225T07 | POWERHEAD ASSEMBLY | 885225T06 | SS/NLA | | $16,005.00 | $14,334.88 | 1 |
