Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

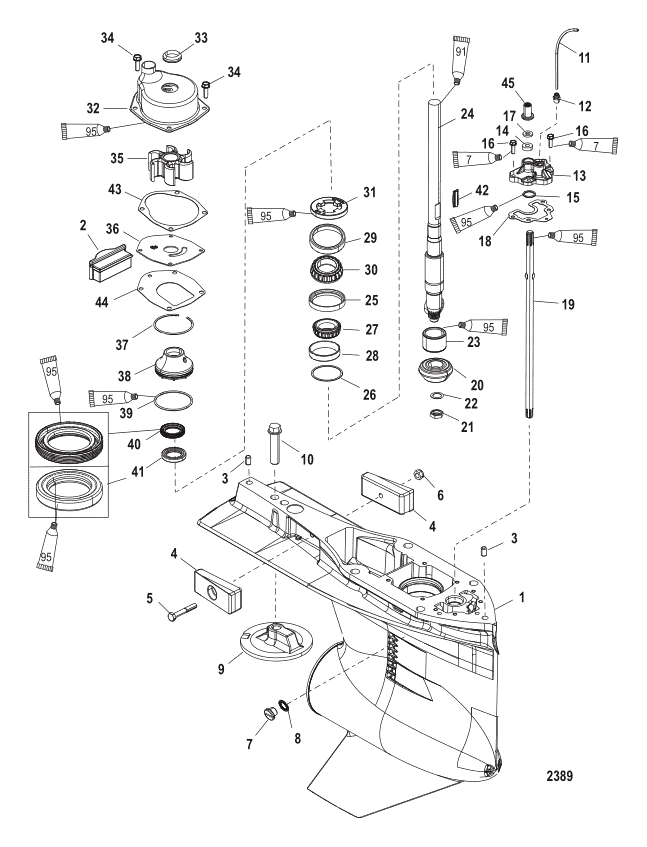

0 8M0236255 GC I6 4S LG 880686T13 $7,521.45 $6,895.05 1
0 8M0236256 GC I6 4S XL 880686T14 $8,185.70 $7,504.01 1
0 8M0236259 GC I6 4S XXL 880686T16 $8,185.70 $7,504.01 1
0 8M0236258 GC L64S CXL 880686T15 $8,892.85 $8,152.27 1
0 8M0236260 GC I6 4S CXXL 880686T17 $8,892.85 $8,152.27 1
1 8M0056631 ----ORD1600-8M0056631 880687T01 REP $2,643.99 $2,423.49 1
2 821526001 --------FILLER BLOCK 821526 SS $18.99 $18.53 1
3 43044 --------PIN-DOWEL-SOLID ACT $2.49 $2.43 2
4 826134Q --------ANODE(ALUM) ACT $16.49 $16.09 1
5 4000333 --------SCREW ACT $4.09 $4.00 1
6 401386 --------NUT ACT $5.09 $4.98 1
7 79953A04 --------SCREW KIT-DRAIN ACT $6.79 $6.64 1
8 8M0204693 --------SEAL 830749 SS $5.19 $5.08 1
9 76214T5 --------ANODE(ALUM) ACT $32.99 $32.33 1
9 76214Q5 --------ANODE(ALUM) ACT $29.99 $29.38 1
10 8M0204686 --------SCREW 806327 SS $6.99 $6.83 1
11 85944975 ----TUBING-72 INCHES Cut to 7 Inches ACT $55.49 $53.38 1
11 85944975 ----TUBING-72 INCHES Cut to 12 Inches ACT $55.49 $53.38 1
11 85944975 ----TUBING-72 INCHES Cut to 17 Inches ACT $55.49 $53.38 1
12 881866 ----FITTING ACT $7.59 $7.42 1
13 8M0047129 ----COVER ASSY 880703A1 SS $34.99 $34.36 1
14 8M0204708 --------SEAL 8164641 SS $16.99 $16.58 1
15 896522 --------O RING ACT $1.80 $1.76 1
16 8M0204741 ----SCREW 40011128 SS $4.59 $4.49 4
17 77674 ----WASHER ACT $1.80 $1.76 1
18 880729 ----GASKET ACT $4.49 $4.39 1
19 824145 ----SHAFT-SHIFT-LOWER ACT $90.99 $87.29 1
20 NSS --------NOT SOLD SEPARATE Pinion Gear 13 Teeth $0.00 $0.00 1
21 35921 ----NUT ACT $7.99 $7.81
22 92721 ----WASHER ACT $1.50 $1.47 1
23 42647A1 ----BEARING ASSY ACT $65.99 $63.48 1
24 888572 ----DRIVESHAFT LG ACT $727.99 $684.84 1
24 888573 ----DRIVESHAFT XL ACT $781.49 $735.17 1
24 888574 ----DRIVESHAFT XXL ACT $855.99 $805.06 1
25 884327A02 ----BEARING/SHIM KIT ACT $223.49 $210.48 1
26 8M0063268 --------ORD 10-8M0063268 38657A1 REP $30.89 $30.28 AR
27 NSS ----------------NOT SOLD SEPARATE Roller Bearing Assembly $0.00 $0.00 1
28 NSS ----------------NOT SOLD SEPARATE Cup $0.00 $0.00 1
29 NSS ----------------NOT SOLD SEPARATE Roller Bearing Assembly $0.00 $0.00 1
30 NSS ----------------NOT SOLD SEPARATE Cup $0.00 $0.00 1
31 8245191 ----RETAINER ACT $6.99 $6.83 1
32 817275A09 ----REPAIR KIT-W/P ACT $129.99 $122.03 1
33 816575A2 --------FACE SEAL 816575 SS $10.89 $10.63 1
33 861415A1 --------SEAL KIT-MCM ACT $15.39 $15.02 1
34 8M0204741 --------SCREW 40011128 SS $4.59 $4.49 4
35 43026T2 --------IMPELLER ACT $36.49 $35.81 1
36 8M0204709 --------FACEPLATE-W/P 8172761 SS $14.59 $14.24 1
37 880719 --------RING-RETAINING ACT $1.50 $1.47 1
38 8M0007131 --------CARRIER ASSY 888909A1 SS $54.49 $52.18 1
39 8M0142854 ------------O RING 896523 SS $1.10 $1.08 1
40 888920 ------------SEAL-OIL NLA $0.00 $0.00 1
41 888921 ------------SEAL-OIL NLA $0.00 $0.00 1
42 8M0204723 --------KEY 43037 SS $4.39 $4.30 1
43 8172771 --------GASKET ACT $5.69 $5.56 1
44 430331 --------GASKET ACT $11.09 $10.83 1
45 43585 COUPLING ACT $31.89 $31.26 1
- 830749A01 SEAL KIT-G/H ACT $72.99 $70.22 1
- 8M0100526 REPAIR KIT - IMP 43026Q06 SS $66.99 $64.29 1
- 817275A08 REPAIR KIT-W/P ACT $117.99 $110.97 1
