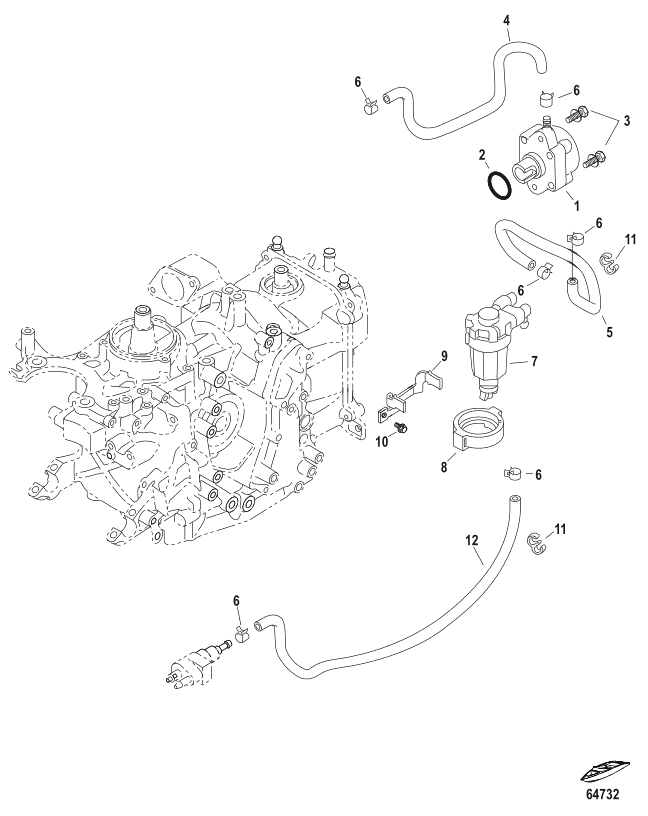

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 803529T04 | PUMP ASSEMBLY Fuel | ACT | $179.50 | $169.04 | 1 | |||
| 2 | 16109003 | O-RING | ACT | $4.80 | $4.69 | 1 | |||
| 3 | 823042 | BOLT | ACT | $3.80 | $3.71 | 2 | |||
| 4 | 8M0135705 | HOSE Fuel | ACT |
|
$24.75 | $24.31 | 1 | ||
| 4 | 8M0135705 | HOSE Fuel | 8M0135703 | SS |
|
$24.75 | $24.31 | 1 | |
| 5 | 8M0135706 | HOSE Fuel | ACT |
|
$27.17 | $26.68 | 1 | ||
| 5 | 8M0135706 | HOSE Fuel | 8M0135704 | SS |
|
$27.17 | $26.68 | 1 | |
| 6 | 8M0129429 | HOSE CLAMP | ACT | $5.50 | $5.37 | 6 | |||
| 7 | 8M0134466 | FUEL FILTER ASSEMBLY | ACT |
|
$39.99 | $39.28 | 1 | ||
| 7 | 8537331 | ----FILTER Fuel | ACT | $13.89 | $13.56 | 1 | |||
| 7 | 8518151 | ----O-RING | ACT | $6.80 | $6.64 | 1 | |||
| 8 | 8M0137308 | HOLDER Fuel Filter | ACT | $5.90 | $5.76 | 1 | |||
| 9 | 8M0138562 | PLATE | ACT | $10.80 | $10.54 | 1 | |||
| 10 | 8230427 | BOLT ASSEMBLY (M6 x 12) | ACT | $4.10 | $4.00 | 1 | |||
| 11 | 8M0138567 | CLAMP | ACT | $1.40 | $1.37 | 2 | |||
| 12 | 8M0069791 | HOSE | ACT |
|
$34.17 | $33.55 | 1 | ||
| 12 | 8M0069791 | HOSE Fuel | 8M0135823 | SS |
|
$34.17 | $33.55 | 1 | |
| - | 8M0134438 | POWERHEAD GASKET SET | ACT | $107.08 | $100.85 | 1 |
