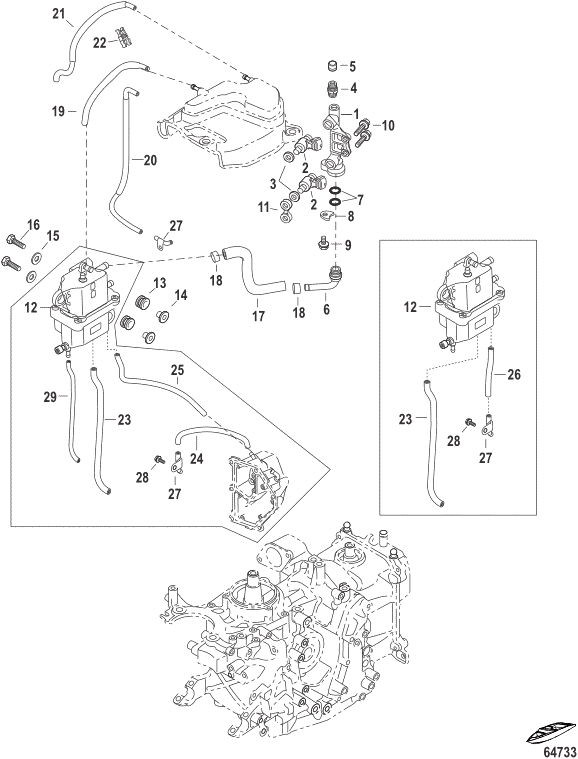

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0225721 | FUEL RAIL ASSEMBLY | 8M0134458 | SS |
|
$183.99 | $165.66 | 1 | |
| 2 | 8M0134459 | ----FUEL INJECTOR ASSEMBLY | ACT | $73.49 | $68.98 | 2 | |||
| 3 | 8M0138599 | ----SEAL RING | ACT | $4.59 | $4.49 | 2 | |||
| 4 | 8M0225719 | ----VALVE | 883542001 | SS |
|
$21.49 | $21.03 | 1 | |
| 5 | 805515001 | ----CAP Valve | ACT | $2.79 | $2.72 | 1 | |||
| 6 | 8M0135592 | ----FITTING Nipple | ACT | $16.69 | $16.37 | 1 | |||
| 7 | 804840007 | ----O-RING | ACT | $5.09 | $4.98 | 2 | |||
| 8 | 804830002 | ----CLAMP | ACT | $3.09 | $3.01 | 1 | |||
| 9 | 8230427 | ----BOLT ASSEMBLY (M6 x 12) | ACT | $4.09 | $4.00 | 1 | |||
| 10 | 823042 | BOLT | ACT | $3.79 | $3.69 | 2 | |||
| 11 | 8M0134460 | INSULATOR | ACT | $4.79 | $4.69 | 1 | |||
| 12 | 8M0134463 | VAPOR SEPERATOR ASSEMBLY | ACT | $485.99 | $449.72 | 1 | |||
| 13 | 8M0135593 | MOUNT Rubber | ACT | $3.09 | $3.01 | 2 | |||
| 14 | 8M0137298 | COLLAR | ACT | $5.69 | $5.56 | 2 | |||
| 15 | 953921 | WASHER Stainless Steel | ACT | $5.59 | $5.47 | 2 | |||
| 16 | 8M0204707 | SCREW (M6 x 25) | 4000330 | SS |
|
$3.99 | $3.91 | 2 | |
| 17 | 8M0132344 | HOSE Fuel | ACT | $33.99 | $33.31 | 1 | |||
| 18 | 898101237 | CLAMP | ACT | $7.49 | $7.32 | 2 | |||
| 19 | 8M0132216 | HOSE Vent | ACT | $10.29 | $10.05 | 1 | |||
| 20 | 8M0135701 | HOSE Vent | ACT | $12.79 | $12.49 | 1 | |||
| 21 | 8M0135702 | HOSE Vent | ACT | $10.39 | $10.15 | 1 | |||
| 22 | 8M0138568 | CLAMP | ACT | $2.99 | $2.92 | 1 | |||
| 23 | 8M0138601 | HOSE Water DRIVESHAFT HOUSING-FUEL COOLER | ACT | $3.99 | $3.91 | 2 | |||
| 24 | 8M0138603 | HOSE Cooling IDLE PORT COVER-NIPPLE | ACT |
|
$7.79 | $7.61 | 1 | ||
| 25 | 8M0138605 | HOSE Cooling IDLE PORT COVER-FUEL COOLER | ACT |
|
$8.49 | $8.29 | 1 | ||
| 26 | 8M0229095 | HOSE Cooling IDLE PORT COVER | ACT |
|
$6.09 | $5.95 | 1 | ||
| 27 | 8M0137341 | FITTING Nipple | ACT | $9.79 | $9.56 | 2 | |||
| 28 | 8230427 | BOLT ASSEMBLY (M6 x 12) | ACT | $4.09 | $4.00 | 1 | |||
| 29 | 8M0057112 | HOSE | ACT | $22.49 | $22.10 | 1 |
