| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

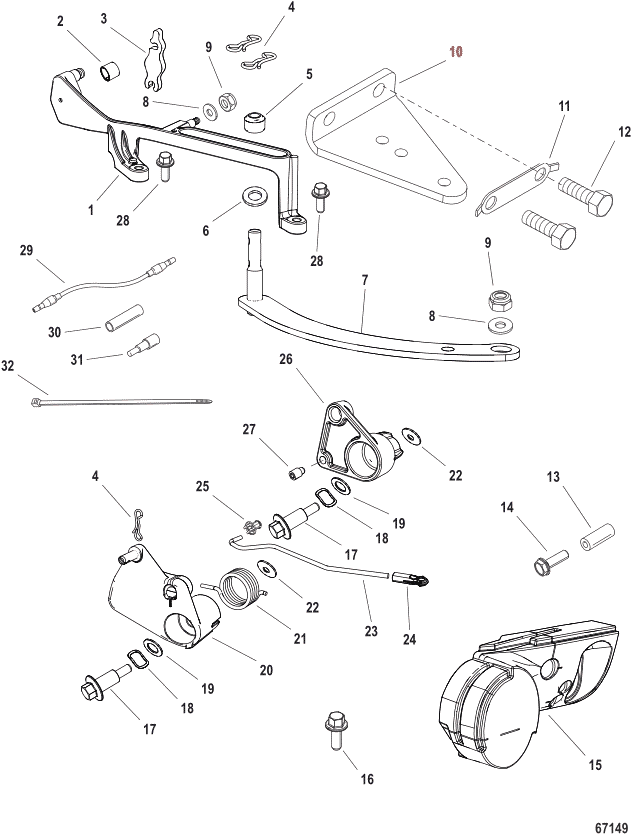

| - | 880095A08 | CONVERSION KIT Tiller Handle to Remote Control (40 Hp 4-Stroke) | ACT |
|
$190.58 | $179.48 | 1 | ||
| 1 | 8M0192158 | ----BRACKET | 8M0007243 | SS |
|
$58.50 | $56.27 | 1 | |
| 2 | 824015 | ----CUP Barrel Retainer | ACT | $7.00 | $6.83 | 1 | |||
| 3 | 899044 | ----LATCH | ACT | $3.00 | $2.93 | 1 | |||
| 4 | 8M0001157 | ----PIN Bow Tie Clip | ACT | $1.60 | $1.57 | 3 | |||
| 5 | 899042 | ----ROLLER | ACT | $2.30 | $2.25 | 1 | |||
| 6 | 888832 | ----WASHER | ACT | $1.40 | $1.37 | 1 | |||
| 7 | 899041 | ----LINK Shift | ACT | $23.00 | $22.59 | 1 | |||
| 8 | 35462 | ----WASHER (.2656 x .625 x .0 | ACT | $1.80 | $1.76 | 2 | |||
| 9 | 401386 | ----NUT (M6) Stainless Steel | ACT | $5.10 | $4.98 | 2 | |||
| 10 | 8M0184092 | ----BRACKET | 893696 | SS |
|
$35.17 | $34.54 | 1 | |
| 11 | 8M0009820 | ----TAB WASHER | ACT | $6.00 | $5.86 | 1 | |||
| 12 | 4000377 | ----SCREW (M10 x 30) | ACT | $4.60 | $4.49 | 2 | |||
| 13 | 8282451 | ----SEAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 40011149 | ----SCREW (M8 x 25) Stainless Steel | ACT | $2.70 | $2.64 | 1 | |||
| 15 | 8M4502035 | ----GROMMET | ACT | $19.08 | $18.74 | 1 | |||
| 16 | 8248326 | ----SCREW (M6 x 25 MM) | ACT | $1.70 | $1.66 | 2 | |||
| 18 | 898093 | ----WASHER Wave | ACT | $3.40 | $3.32 | 2 | |||
| 19 | 897937 | ----WASHER | ACT | $1.10 | $1.08 | 2 | |||
| 20 | 8M0021603 | ----CAM Throttle | ACT | $65.08 | $62.60 | 1 | |||
| 21 | 897535005 | ----SPRING Throttle Cam Return | ACT | $2.81 | $2.75 | 1 | |||
| 22 | 897936 | ----WASHER | ACT | $1.10 | $1.08 | 2 | |||
| 23 | 8M0006021 | ----LINK ASSEMBLY Throttle | ACT | $29.58 | $29.05 | 1 | |||
| 24 | 8M0084742 | ----SOCKET | ACT | $2.39 | $2.35 | 1 | |||
| 25 | 8M0215006 | ----BUSHING | 932481 | SS |
|
$14.20 | $13.85 | 1 | |
| 26 | 8M0008317 | ----FOLLOWER Cam | ACT | $50.17 | $48.26 | 1 | |||
| 27 | 8M0037159 | ----ROLLER | ACT | $33.83 | $33.23 | 1 | |||
| 28 | 8M0204706 | ----SCREW (M6 x 20) | 1993720 | SS |
|
$1.20 | $1.18 | 2 | |
| 29 | 11149A52 | ----CABLE ASSEMBLY Adaptor - Yellow | ACT | $5.10 | $4.98 | 1 | |||
| 30 | 13540 | ----CAP Female | ACT | $3.20 | $3.13 | 2 | |||
| 31 | 13541 | ----PLUG Male | ACT | $3.20 | $3.13 | 2 | |||
| 32 | 86507 | ----TIE STRAP (6.75 Inches) | ACT | $1.71 | $1.70 | 1 |
